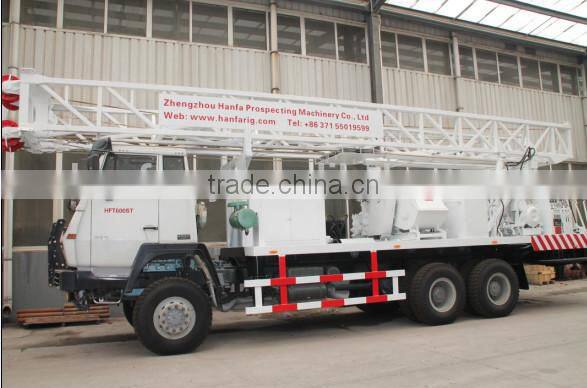

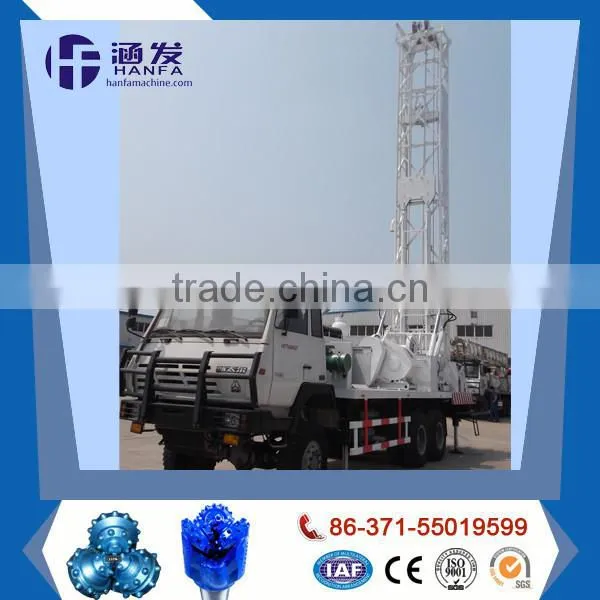

HFT600 Water Drilling Rig
Main characteristics and Applications
This drilling rig, HFT600 Water Drilling Rig, has the features in best maneuver ability, compact construction, high integrity, economical transportation, simple operation, reliable transmission, etc.
Other applications as follow:

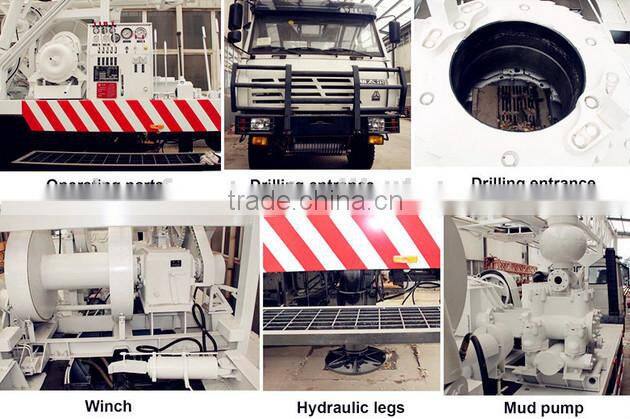

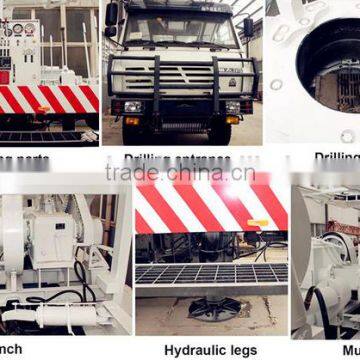

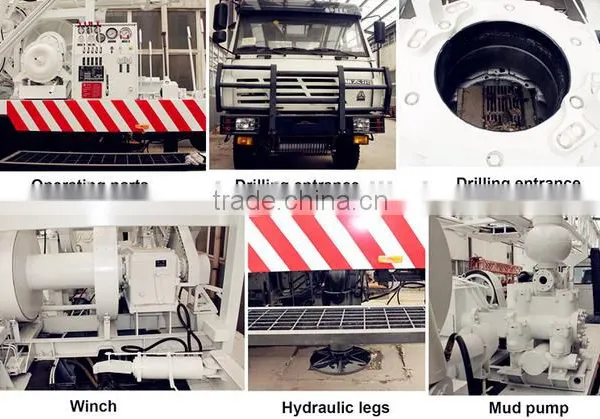

1.It is equipped with the breakout-gun cylinder. After loosening the first turn of thread of the lock joint with the aid of breakout-gun cylinder, the drill pipe can be rotated in counter-clockwise direction by rotary table to reduce greatly the labor intensity and prolong service life of the component parts.
2.The drilling rig is equipped with a mud pump of changing-cylinder for construction.
3.The drilling rig is equipped with four jacks to reduce physical labor and improve the efficiency of installation.
4.To upgrade the versatility in application, standard parts and components. The drilling rig may be used for drilling in quaternary period stratum and matrix.
Main applications as follows:
(1) Exploration and investigation of hydro-geological condition.
(2) Water well drilling for agriculture irrigation, industry and national defense.
(3) Ventilation of underground tunnel. HFT600 can also be used in building engineering.
Technical data:
Power |
BF6L913C |
|

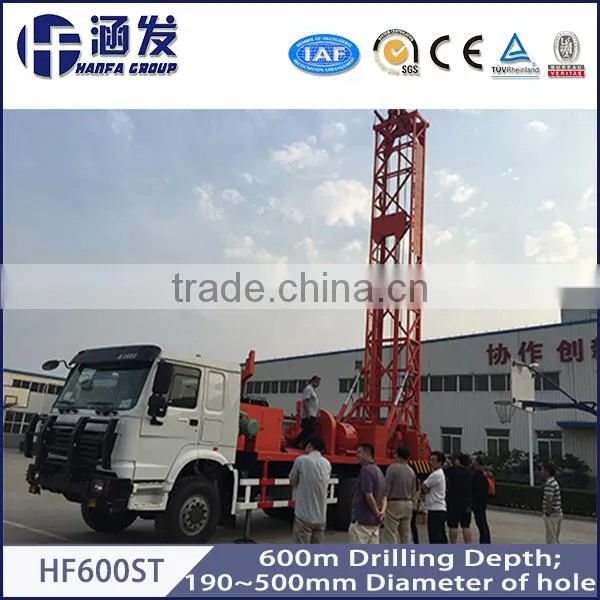

Drilling Depth |
600 m |
|
|
Diameter of hole
|
Open-hole 500mm |
End hole 190mm |
|
Drilling pipe
|
89×9×6000mm 73×7×6000mm |
|
|
Max through hole diameter of rotary
|
505mm
|
|
Driving Kelly |
108×108×7315mm
|
|
|

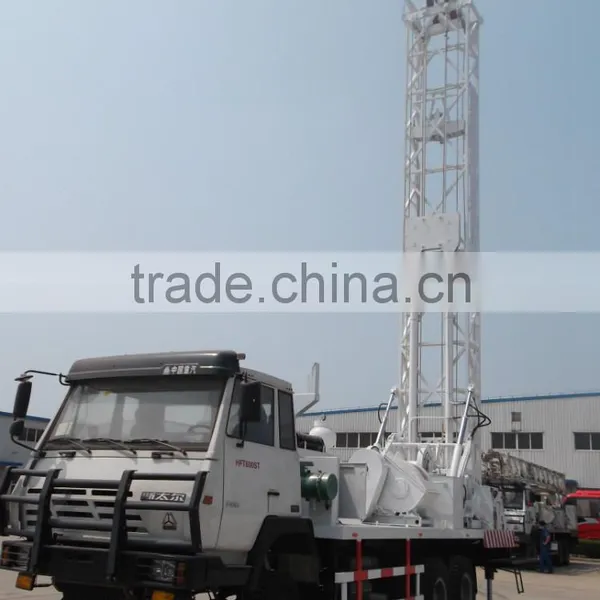

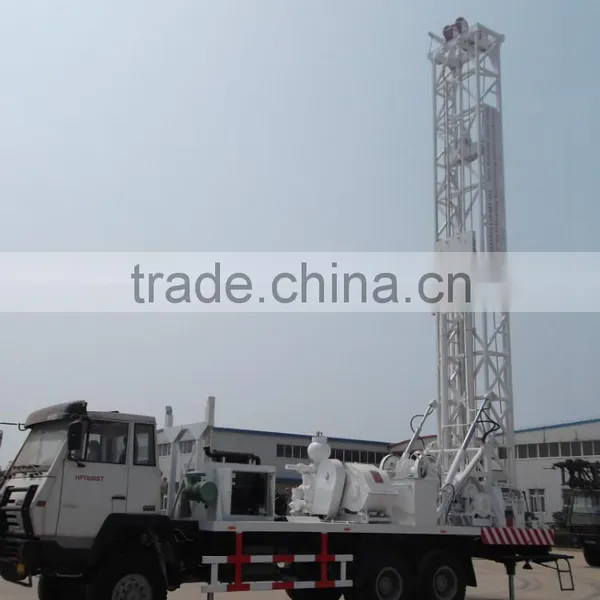

Mast
| ||
Effective height |
11m
|
|
|
Rated load of hook
|
25T |
|
|
Hoisting system
|
3×4 |
|
|
Dimensions (in transportation state) (L×W×H)
|
12000×2500×4230mm
|
|
|
Total weight
|
27T
|
|
|
Max.truck speed
|
73Km/h |
|
|
Away angle
|
13.5
|
|
HANFA have participated in China, kazakhstan, Chile, Africa, Canada and other countries large-scale exhibitions, the products were praised by local people.HANFA was interviewed by local TV many times.On the day of the exhibition,countless order has been signed successly.
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
