Specifications
drilling rig water well HFT300geological equipment DTH hydraulic power truck mounted drilling rig1. It adopts truck mounted a
drilling rig water well HFT300 prospecting equipment DTH full hydraulic power truck mounted drilling rig
Main features:
1.HFT300 truck mounted drilling rig is designed by our engineers; it adopts truck mounted and is a rotary and DTH
drilling rig.
2. it can drill on clay, sand and rock
3.The power of drilling rig comes from the truck engine, the rig sets up distribute implement and hydraulic system.
4. We can set up the spare electric engine and clutch implement according to client's requirement, so that the rig can
work with diesel engine or electric engine.
5. We can set up a generator (15kw) , so that it is convenience to illuminate or work at night.
6.The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering
formation through using the adding pressure implement.

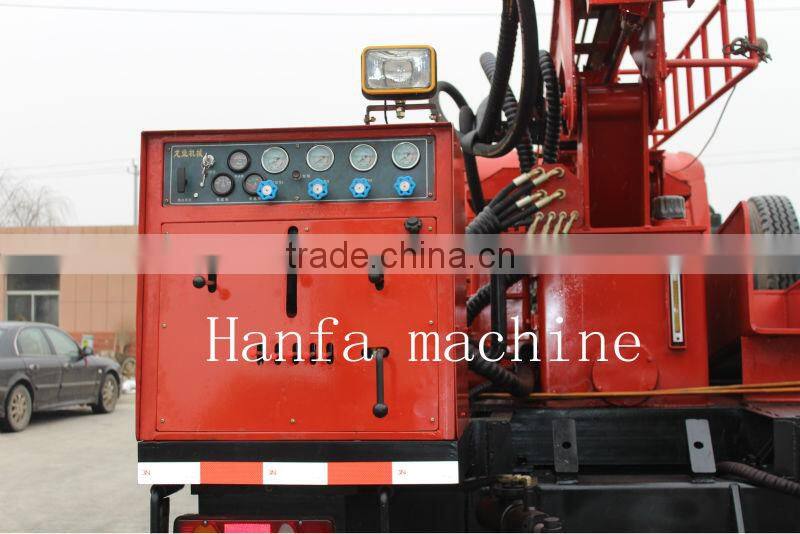

7. The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump,
master driving clutch system are air operated.
8. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly
used for water well, construction, national defense building foundation, geological exploration, geothermic well and other
foundation working, it is popular with domestic and foreign clients.
Technical parameter:
Technical parameter | ||
Bore diameter(mm) | 115-350mm | |
Bore depth(m) | 320 | |
Work pressure(Mpa) | 1.05-3.5 | |
Air consumption(m³/min) | 16--40 | |
Drill rod length(m) | 3 | |
Drill rod diameter(mm) | 89 | |
Dimension(mm) | 8900*2100*3300 | |
Climb ability(degree) | 20 | |
Total weight(T) | 12 | |
Feed system | ||
Axial pressure(N) | 57000 | |
Max Lifting force(T) | 12 | |
Rotation torque(Nm) | 5600 | |
Rotation speed | 0--100 | |
Diesel engine | ||
model | Yuchai | |
Power(kw) | 84 | |
Truck chassis:DONGFENG | ||
Model: | Cummins | |
Wheel base Horse power | 5000mm 170HP | |
Gear box | 6 speed | |
Top speed Fuel type Tire size | 85km/h diesel 90.00-20R
| |
Drive form
| 4*2 | |

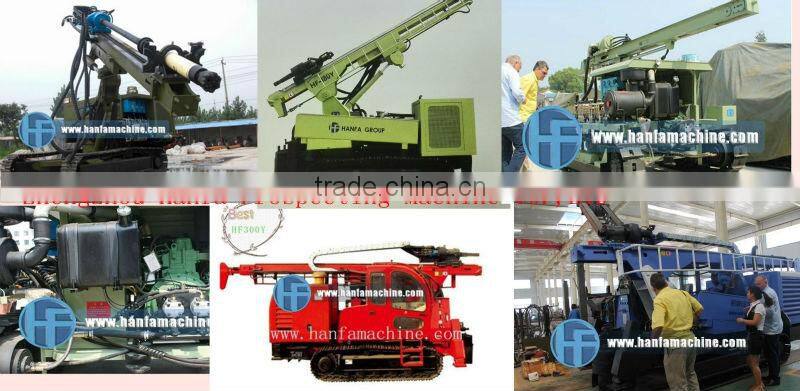

Other DTH drilling rigs:

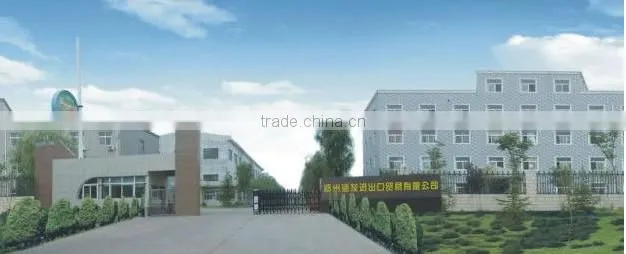

About us:
