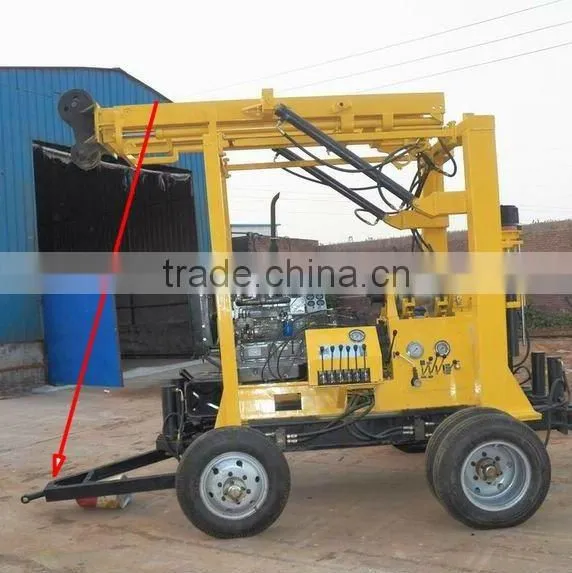

Diesel Engine Water Well Drilling Machine/rig Fresh Water for the World!!!

Name: Diesel Engine Water Well Drilling Machine/rig Fresh Water for the World!!!
Brand: Hanfa
SKU: 141604260
Availability: InStock

US$ 25,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Place of Origin:

Henan, China

Zhengzhou Han Fa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Place of Origin Henan, China

Brand Name Hanfa

Model Number HF-3

Usage Water Well

Specifications

diesel engine water well drilling machine/rig
1.super performance
2.high drilling efficiency
3.hydraulic trailer type

diesel engine water well drilling machine/rig

1.hydraulic trailer type

2.rock expert high efficiency drilling rig

3.ISO:9001:2000 certificate

4.national free-inspection product

Drilling depth	m	600
Open hole caliber	mm	300
End hole caliber	mm	75
Drilling rod	mm	Φ60
Drilling angle		90°-65°
Spindle
Spindle forward speed	r/min	57-1024
Spindle reverse speed	r/min	45-212
Spindle stroke	mm	560
Spindle inner diameter	mm	96
Spindle lifting capacity	KG	6000
Hoist
Single line lifting speed	m/s	0.515 0.894 1.421 1.948
Hug floodgate belt width	mm	90
Tightrope caliber	mm	12.5 or 14
Hoist single line lifting capacity	KG	3000
Reel caliber	mm	200
Reel cubic measure	m	30
Mud pump
Horizontal double actuator
Displacement	L/min	200,125
Triangle conveyer belt type		B×5
Work pressure	Mpa	4.6
Water inlet caliber	mm	65
Water to exit caliber	mm	37
Oil pump
Duplex gear oil pump F532/F314
Front displacement,pressure		32L/min 20Mpa
Behind displacement,pressure		14L/min 20Mpa
Drilling rig Power
Diesel engine	Hp	4100 30HP
Electric motor	KW	Y180L-4 22KW
