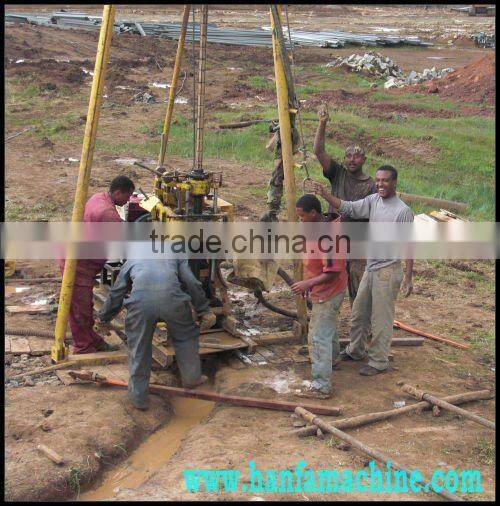

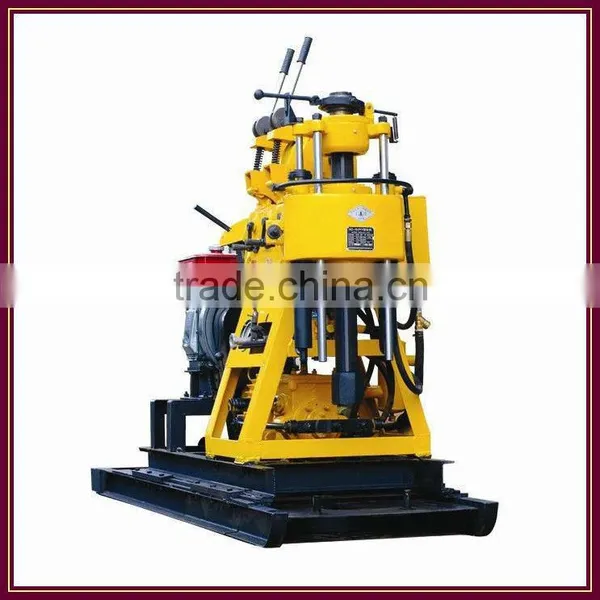

High-quality !!!Rock Drilling,Hydraulic HF-200 Hole Drilling Machine

Name: High-quality !!!Rock Drilling,Hydraulic HF-200 Hole Drilling Machine
Brand: Hanfa
SKU: 141604250
Availability: InStock

US$ 6,500 - 11,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Core Drilling Rig

Place of Origin:

Henan, China

Zhengzhou Han Fa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Core Drilling Rig

Place of Origin Henan, China

Brand Name Hanfa

Model Number HF-200

Usage Water Well

Specifications

hole drilling machine
1.drill soil,sand,clay,granite,hard rocks
2.hydraulic driven
3.trailer mounted
4.drill 200m

Hot model,drilling rigs for sale,portable rig HF200 hole drilling machine

I. Specially recommended :

This machine gained 3 national practical new-type patents invention.

1)To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod,with strong rigidity and big transfer torque .

2)To be provided with cone plate friction clutch,being facile to operate,with big transfer torque.

3)To adopt rolling bearing type hoist,with wide brake band and big lifting capacity.

4)To be equipped with speed reducer and sludge pump,being integrated structure.

The entire machine is featured by stong adaptability,high motive power,low cost and broad compatibility.

5)To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.

6)To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.

II. Main machine technical parameter:
Drilling depth		200m
Drlling diameter		300mm
End diameter		75mm
Drilling pipe diameter		50mm
Drilling angle		90°~75°
Drilling weight(no include power)		910kg
Unity machine dimesions		2.5×1×1.3m 2.5 × 0.9× 1.3m
Spindle
Spindle speed		64,128,287,557r/min
Spindle stroke		450mm
Hoist
Max.single line hoisting capacity			2400kg
Reel lifting speed		17,35,75,151r/min
Reel diameter		140mm
Wirerope diameter		13mm
Wirerop cubic measure		35m
Hug floodgate diameter		260mm
Hug floodgate belt width		70mm
Distance between drill and hole		400mm
Power
Diesel engine		s1110 Model, 20HP
Electric Motor		17kw
Mud pump
Type	Horizontal single urn twin-action
Displacement	170L/min
Maximum pressure	3.0Mpa
Work pressure	1.5Mpa
Water inlet caliber	40mm
Water to exit caliber	30mm
Triangle conveyer belt	B1728mm
Hydraulic pump
specification	CBT—F—314
Triangle conveyer belt	B1100×1
Useful
Geology general check exploration,Earth physics exploration,sampling test in mining, water Well,Blast opening etc drilling engineering
