Drill Ability Strong ! HF100T Tractor Mounted Water Well Drilling Rig

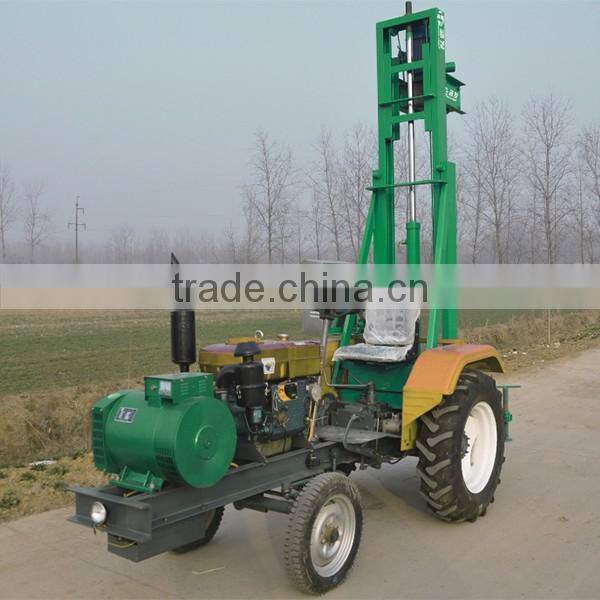

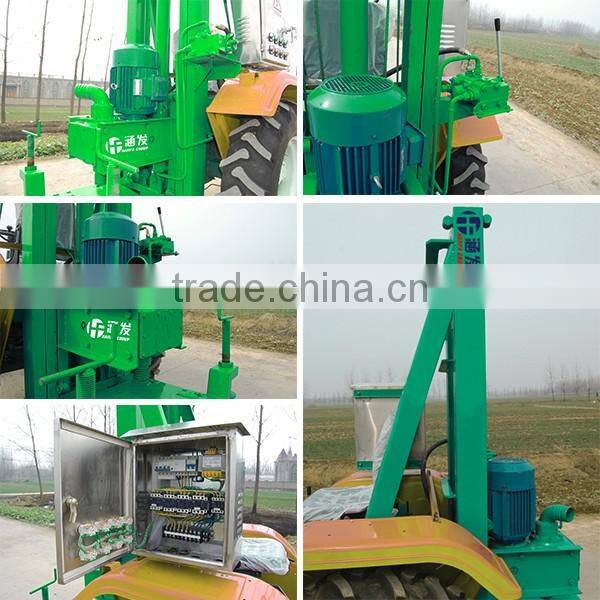

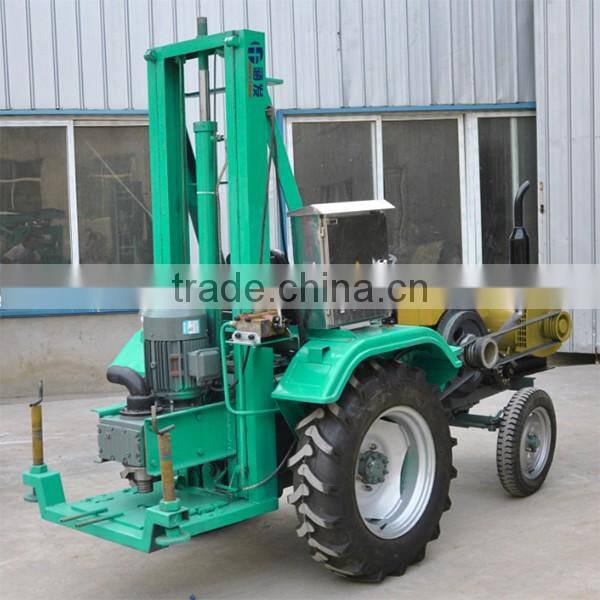

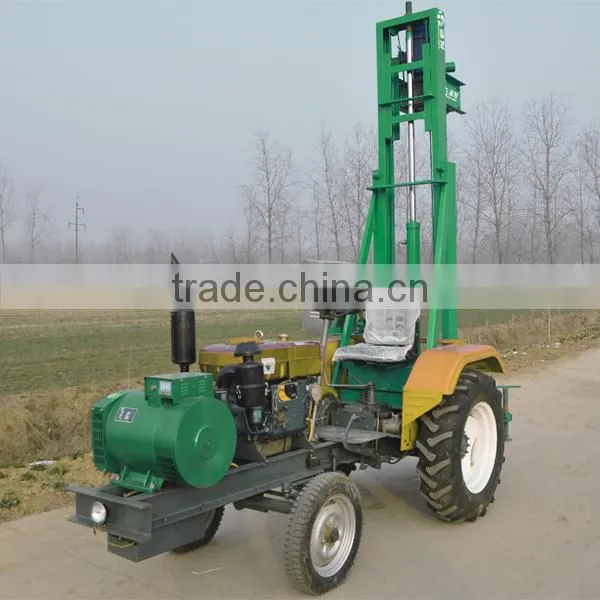

Drill Ability Strong ! HF100T Tractor Mounted Water Well Drilling Rig photo-1

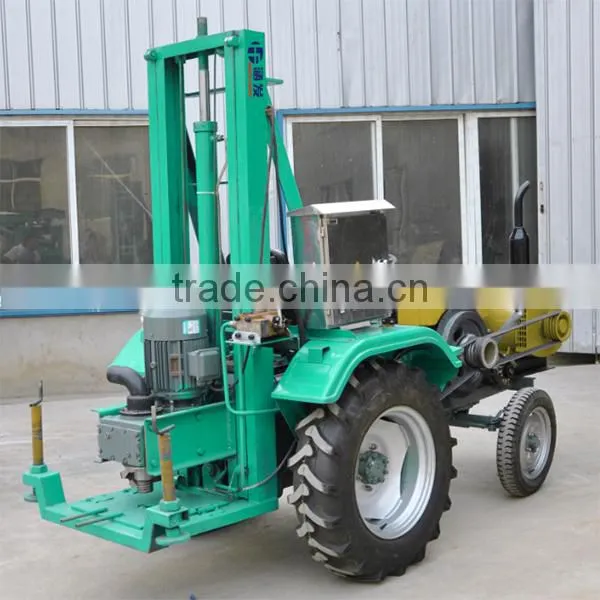

Drill Ability Strong ! HF100T Tractor Mounted Water Well Drilling Rig photo-2

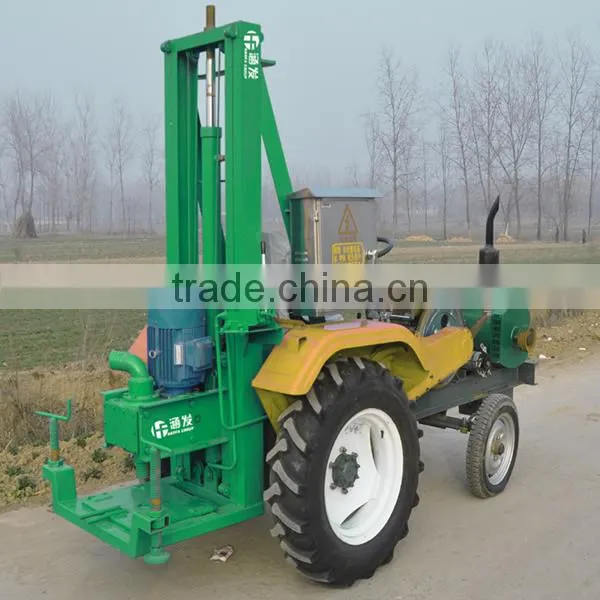

Drill Ability Strong ! HF100T Tractor Mounted Water Well Drilling Rig photo-3
US$ 8,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, tractor mounted water well drilling rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, tractor mounted water well drilling rig
Power Type Diesel
Place of Origin Henan, China
Brand Name HF
Model Number HF100T tractor mounted water well drilling rig
Usage Water Well
Voltage 220V/380V
Power(W) 16HP
Dimension(L*W*H) 3400*1350*2200mm
Weight 1 ton
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Drill ability strong ! HF100T tractor mounted water well drilling rig

Product Description



1. This tractor mounted deep hole rock drilling rig adopts advanced top-drive technic, vibration technology,Fully hydraulic controlling, saving 50% of energy compared to the same drilling machine.



2. No complicated mechanical operation handles, the drilling machine structure is compact, strong and durable,no need to disassemble when being transported.



3. This tractor mounted deep hole rock drilling rig is fast at drilling speed, strong stability,high vertical precision of boreholes.



4. Power head uses the gear reducer combined of vabration,strong torque;when meeting with hard rock, can use the vibration function to improve the drilling speed,it is the ideal drilling equipment for users at home and abroad.



5. This tractor mounted deep hole rock drilling rig is suitable for the soil, sand, rock, gravel, weathering rock, construction precipitation, geothermal heat, industrial and agricultural water wells, family use well drilling projects and so on.



Drill ability strong ! HF100T tractor mounted water well drilling rig

Main feature:



The tractor mounted drilling rigs for sale HF100T & deep hole rock drill hydraulic pump drilling rig have the features:


1.Top Drive


2.Diesel power or external electric


3.Max.400mm;120m depth



Drill ability strong ! HF100T tractor mounted water well drilling rig

Technical Data

  The tractor mounted drilling rigs for sale HF100T & deep hole rock drill technical data:



Drilling Capability

Drilling Caliber

Drilling Depth

400~100mm

40~120m

 Drilling Speed in Soft Stratum

40-50 m/h

 Electrical Motor of Rotary Head

7.5kw

 Diesel Engine of Tractor

16HP

 Power of Generator

24Kw

 Sewage Pump

5.5kw/7.5Kw

 Speed of Lifting Drill Pipe

30 m/min

 Max. Lifting Weight

1 ton

 Dimension (L*W*H)

3400*1350*2200mm
