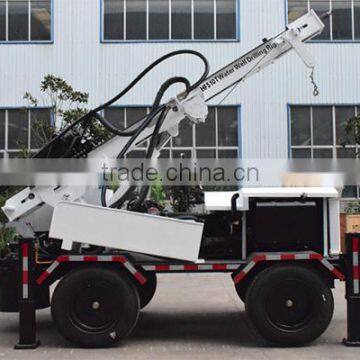

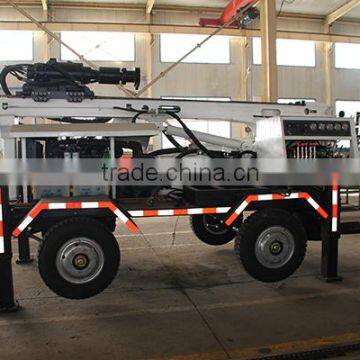

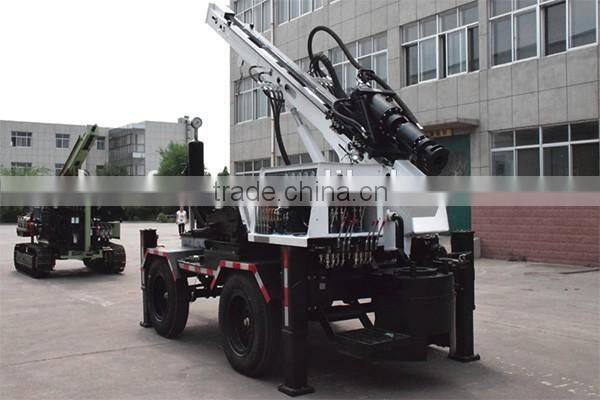

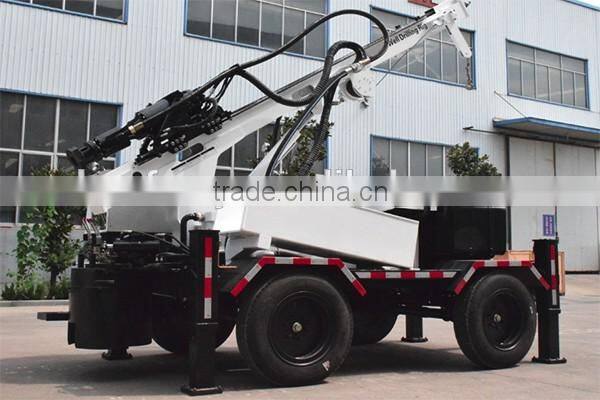

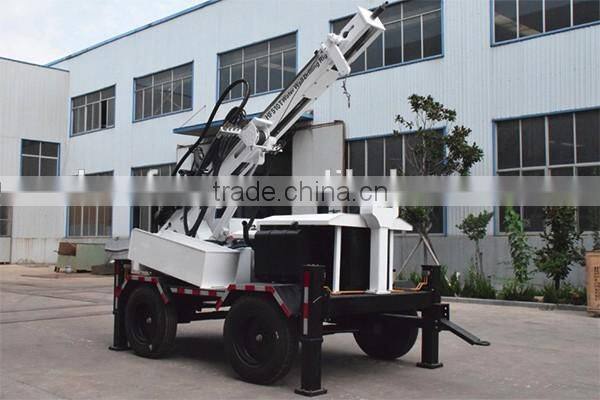

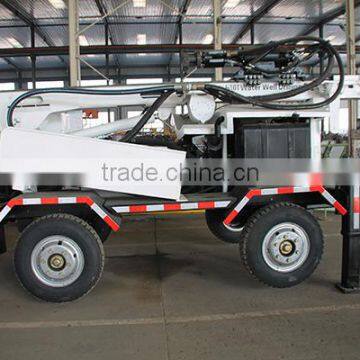

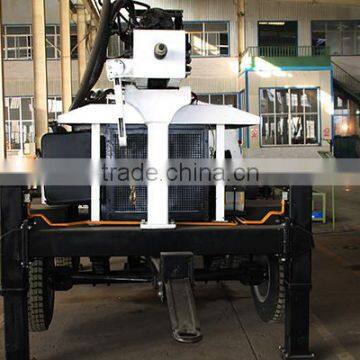

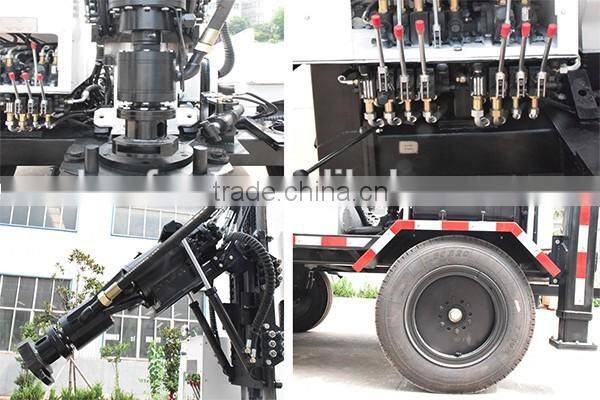

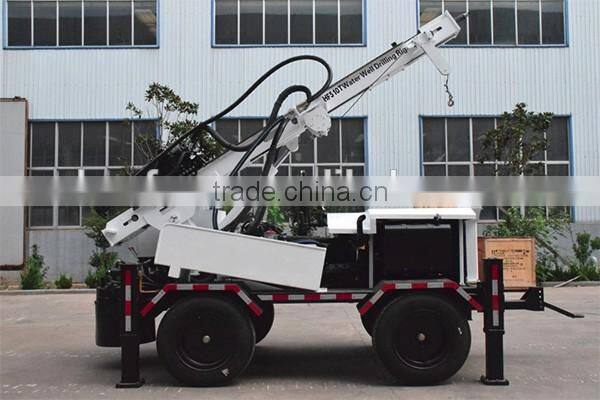

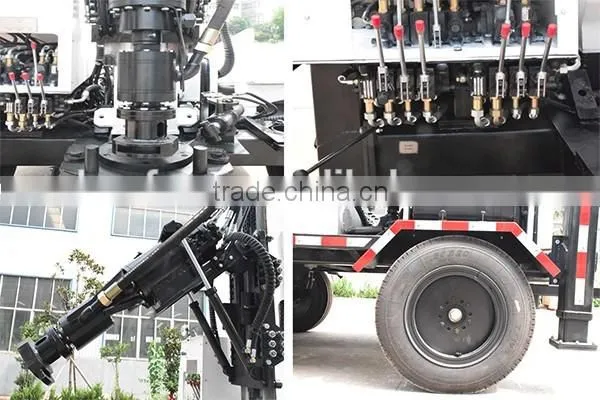

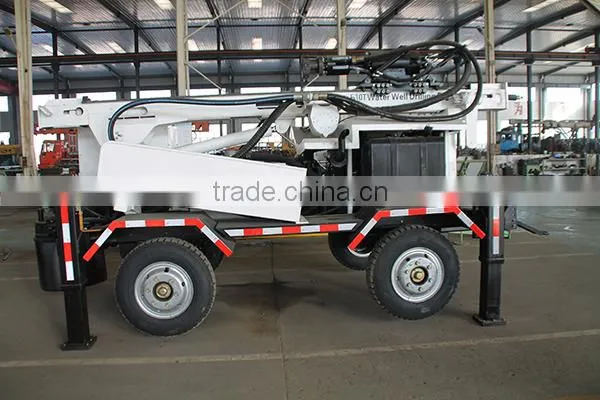

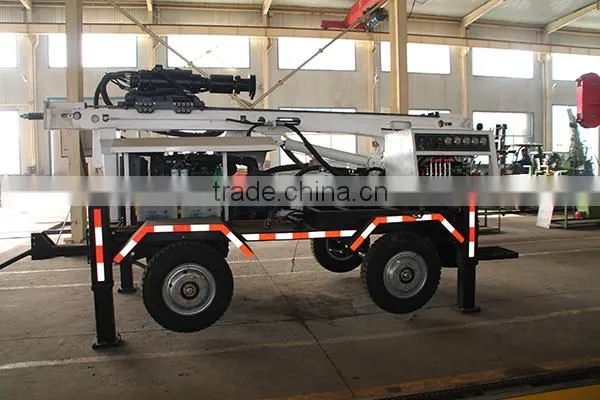

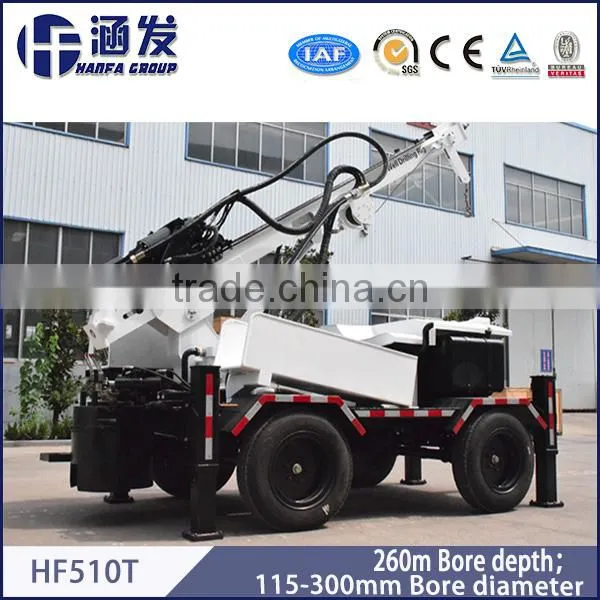

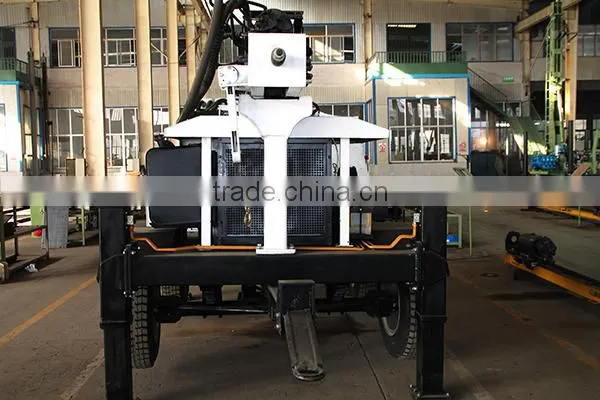

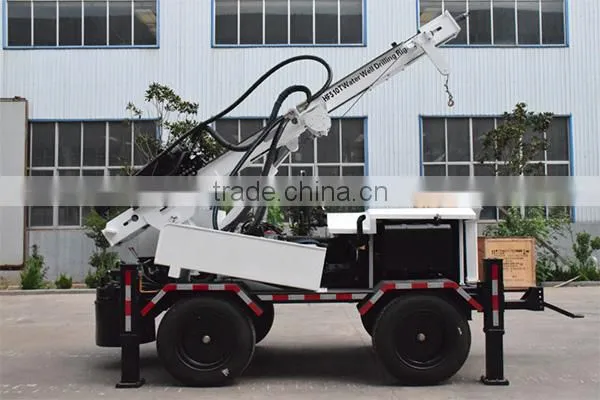

Large torque , High Efficiency ! HF510T water drilling machine prices
1.HF510T drilling for groundwater can use air, foam or mud rotary for percussive drilling according to different textures.
2.It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes.
3.In particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement,loose gravel drilling rock formation connected with a variety of engineering.
parameter:
Bore diameter(mm) | 115-300
|
Bore depth(m) | 260 |
Walk speed(km/h) | 45 |
For rock(F) | 6-20 |
Air pressure(Mpa) | 1.05-3.0
|
Air consumption(m³/min) | 16-30
|
Once promotion(mm) | 2000 |
Skid max angle(°) | 90 |
Maximum height from the ground(mm) | 320
|
Rotation Speed(r/min) | 0-100
|
Rotation torque(NM) | 3900 |
Lifting power(T) | 6.5T |
Dimension(L*W*H)(mm) | 5425*2250*2470 |
Host power(Kw) | 56/87(Optional) |
weight(Kg) | 6000 |
Mud pump | BW450/5 |
Pump speed(L/min) | 172--450 |
Pressure (Mpa) | 2.0--5.0 |
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
