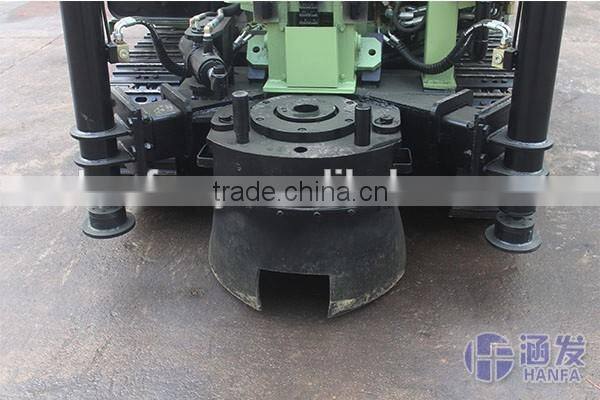

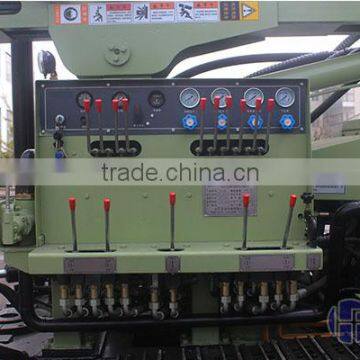

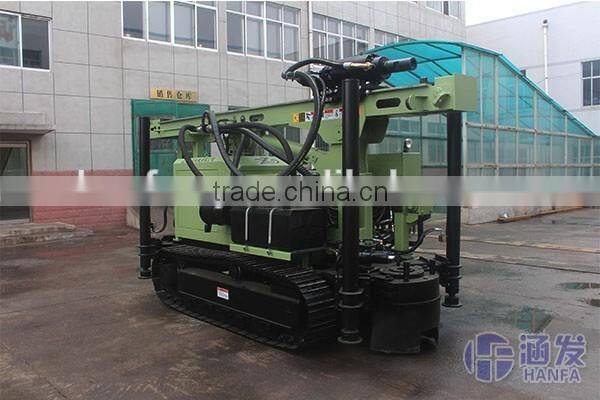

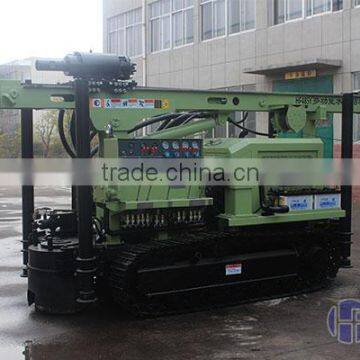

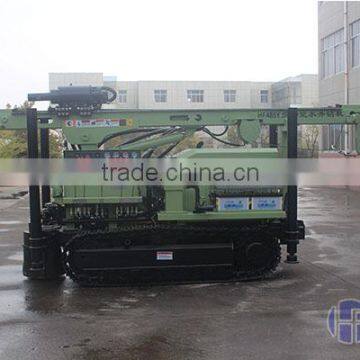

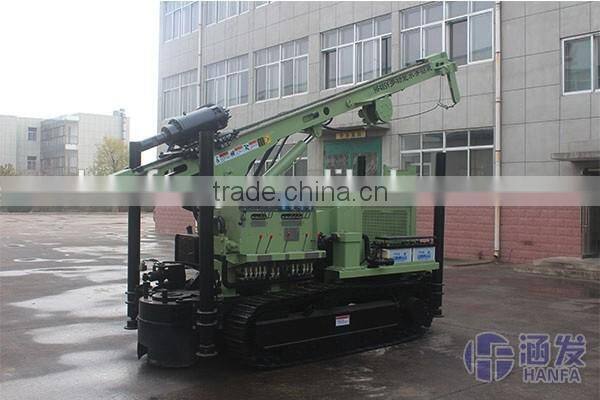

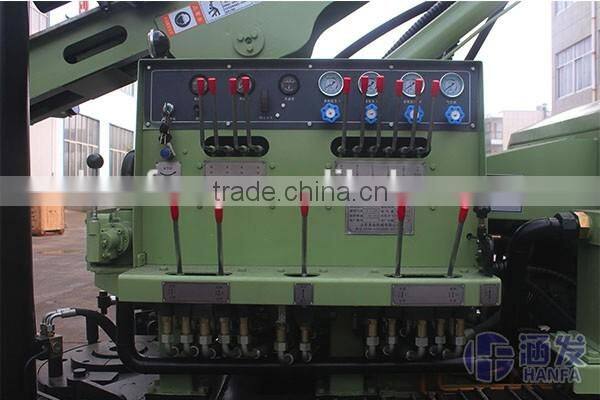

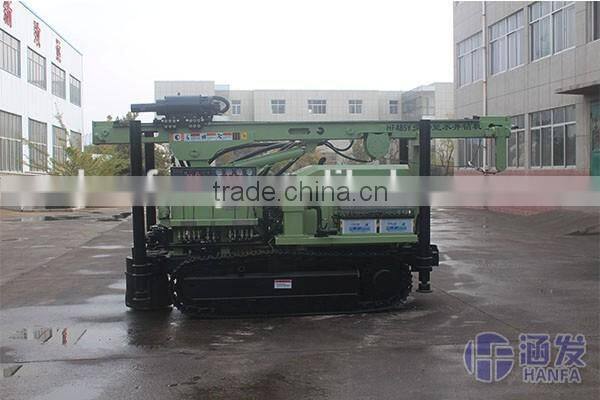

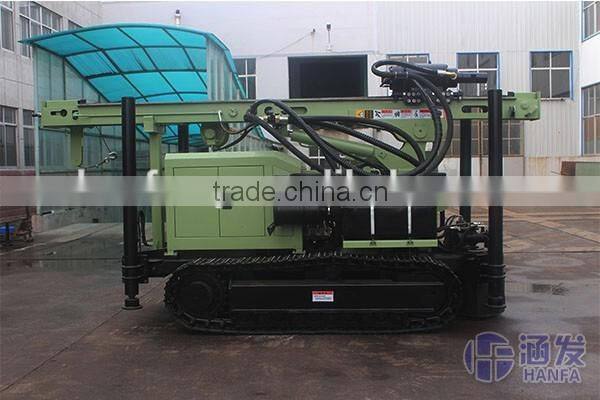

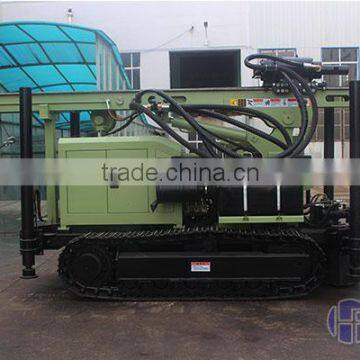

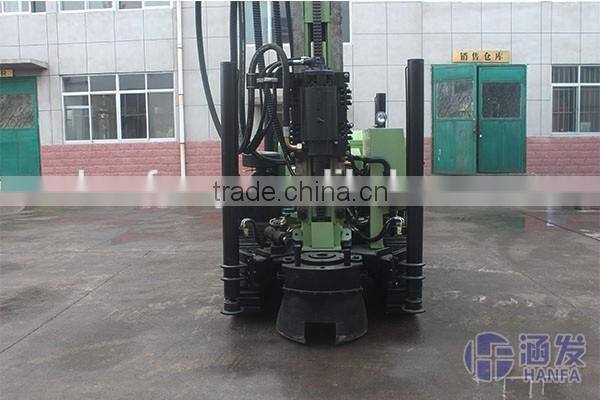

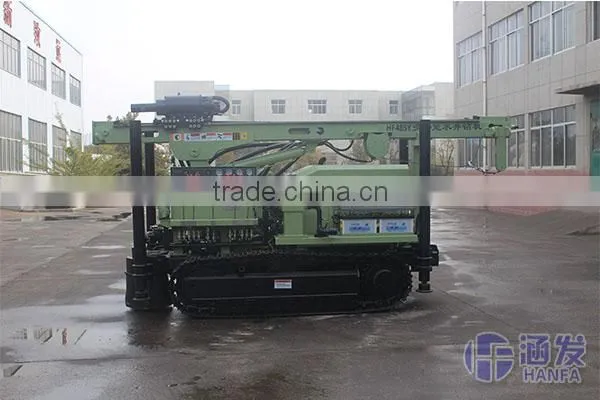

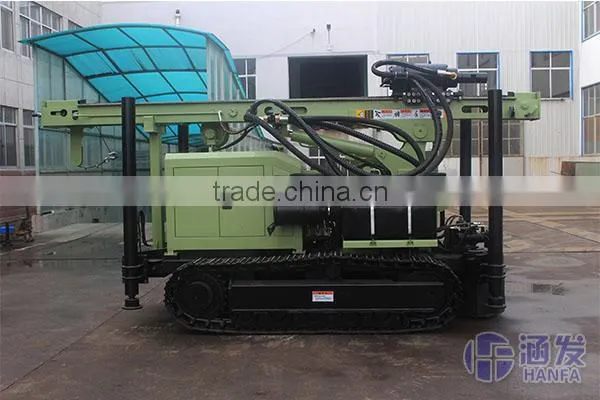

High power ! HF485Y crawler type practical water well drilling rig price
USD $25,000 - $100,000
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T Credit Card
You May Like
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Other, water well drilling rig | Power Type: | Diesel |
| Place of Origin: | Henan, China | Brand Name: | HF | Model Number: | HF485Y water well drilling rig price |
| Usage: | Water Well | Voltage: | 220V/380V | Dimension(L*W*H): | 4900*1600*2400mm |
| Weight: | 5700kg | Certification: | ISO CE | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description

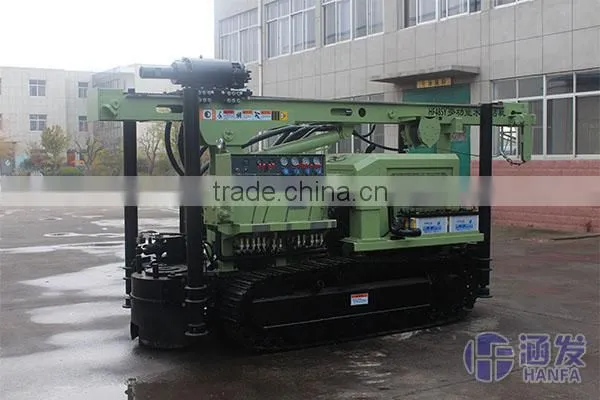

HF485Y track-type water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
Technical Details

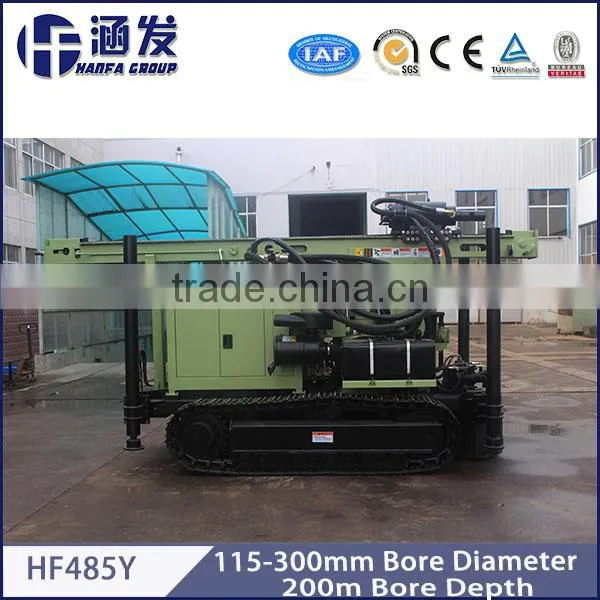

Bore diameter(mm) | 115-300 |
Bore depth(m) | 200 |
Walk speed(km/h) | 0-2.5 |
For rock | 6-20 |
Air pressure(Mpa) | 1.05-3.0 |
Air consumption(m3/min) | 16-30 |
Once promotion(mm) | 3000 |
Skid max angle(.) | 90 |
Maximum height from the ground(mm) | 320 |
Rotation Speed(r/min) | 0-100 |
Rotation torque(Nm) | 3900 |
Lifting power(T) | 8 |
Climb ability(.) | 25 |
Dimension(L*W*H)(mm) | 4900*1600*2400 |
weight(Kg) | 5700 |

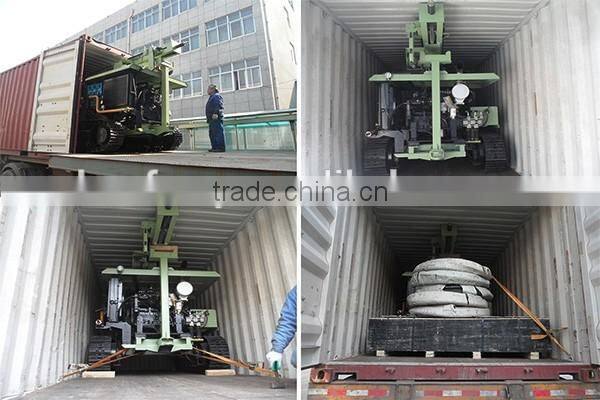

Packaging & Shipping
