Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > CE Certificate!!perfect Drill Rig,high Efficent!!! HF130Y Crawler Hydraulic DTH Drilling Machine

CE Certificate!!perfect Drill Rig,high Efficent!!! HF130Y Crawler Hydraulic DTH Drilling Machine

Zhengzhou Han Fa Imp & Exp Trading Co., Ltd.

CE Certificate!!perfect Drill Rig,high Efficent!!! HF130Y Crawler Hydraulic DTH Drilling Machine photo-1

US$ 25,000 - 32,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other

Power Type:

Diesel

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other

Power Type Diesel

Place of Origin Henan, China

Brand Name HF

Model Number HF130Y

Usage Coal

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

HF130Ycrawler hydraulic DTH drilling machine
1.diameter90mm-300mm,
2.hydraulic
3.small valume, crawler
4.easy to transport

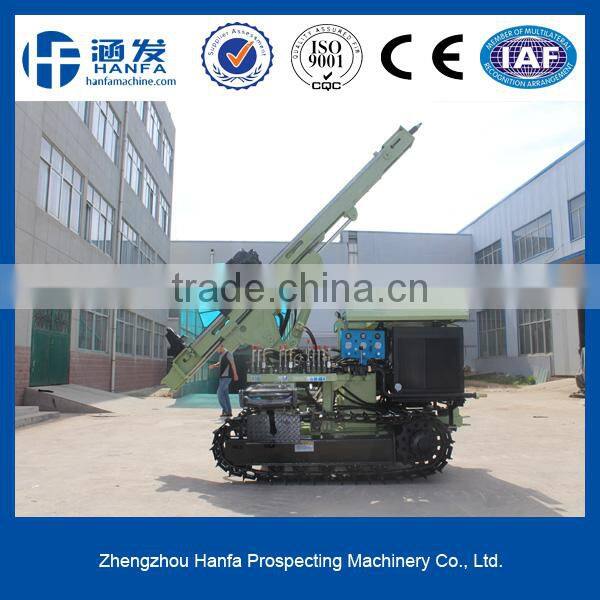

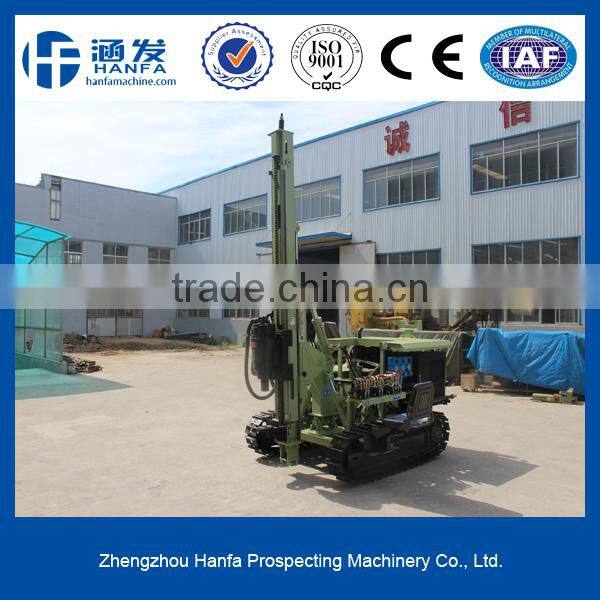

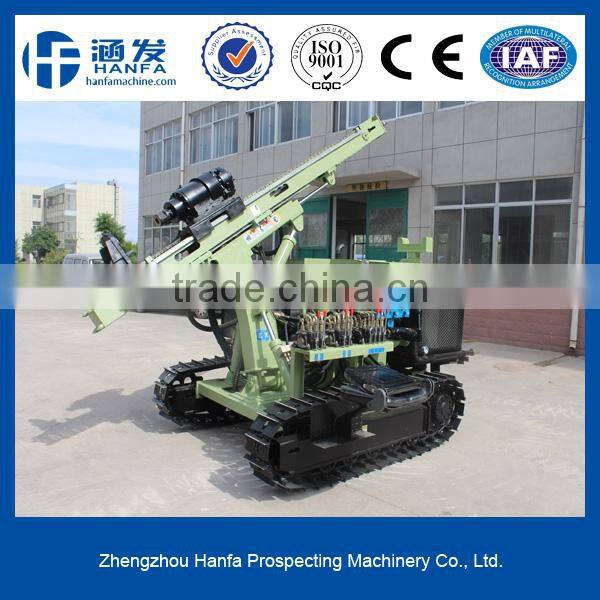

HF130Y crawler hydraulic DTH drilling machine

Introduction

HF130Y hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. HF130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency

The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc. The Technical parameters as follow:.

Main technical parameters

Bore diameter(hammer)	90-300mm
Bore depth	20-100m
Air consumption	10-26m³/min
Air pressure	0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
Pipe diameter	76mm/89mm
For rock	F=6-20
Bore diameter(screw)	Max 400mm
Bore depth	0-30m
Screw pipe diameter	130-400mm
Once promotion	2000mm
Skid pitch	100°
Swinging angle of skid	Left and right total 40°
Rotation speed	0-70r/min
Host power	56Kw
Climb ability	35°
Dimension(LWH)	446019502460(mm)
weight	4360Kg
Walk speed	0-2.5km/h
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
