Specifications
bore well drilling machine price1.diameter90mm-300mm,
2.hydraulic
3.small valume, crawler
4.easy to transport

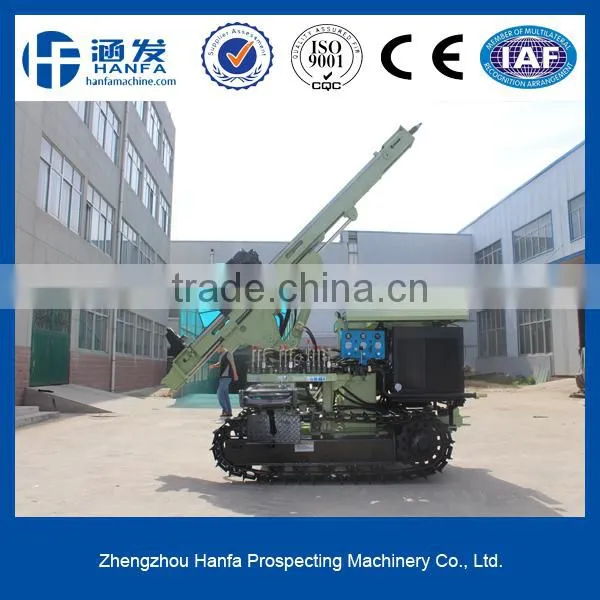

Star product!CE certificate!!perfect drill rig,high efficent!!! HF130Y bore well drilling machine price
1. Application ----- bore well drilling machine price
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs. Designed for multiple functions,our HF series water well/core drilling rigs are designed for geological exploration, water well drilling, soil sampling, core sampling(normal coring and wireline coring), pile drilling, etc.
2. technical parameters about drilling machine price
I. Features and Advantages
HF130Y hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. HF130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency
The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc. The Technical parameters as follow:.
2. The technical parameters
Bore diameter(hammer) | 90-300mm |
Bore depth | 20-100m |
Air consumption | 10-26m³/min |
Air pressure | 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
|
Pipe diameter | 76mm/89mm |
For rock | F=6-20 |
Bore diameter(screw) | Max 400mm |
Bore depth | 0-30m |
Screw pipe diameter | 130-400mm |
Once promotion | 2000mm |
Skid pitch | 100° |
Swinging angle of skid | Left and right total 40° |
Rotation speed | 0-70r/min |
Host power | 56Kw |
Climb ability | 35° |
Dimension(L*W*H) | 4460*1950*2460(mm) |
weight | 4360Kg |
Walk speed | 0-2.5km/h |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. | |
Customers
With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients’ visits and our clients’ on-the-site operation.
working in outside----- bore well drilling
Packing( drilling machine price )
To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80,HF150E,HF150,HF200,HF30: Wooden case
HF-3,HF-4,HFDX-6.HF-8,HFT200,HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.
