Specifications
blasthole drilling rig1.diameter90mm-130mm,
2.hydraulic
3.small valume, crawler
4.easy to transport

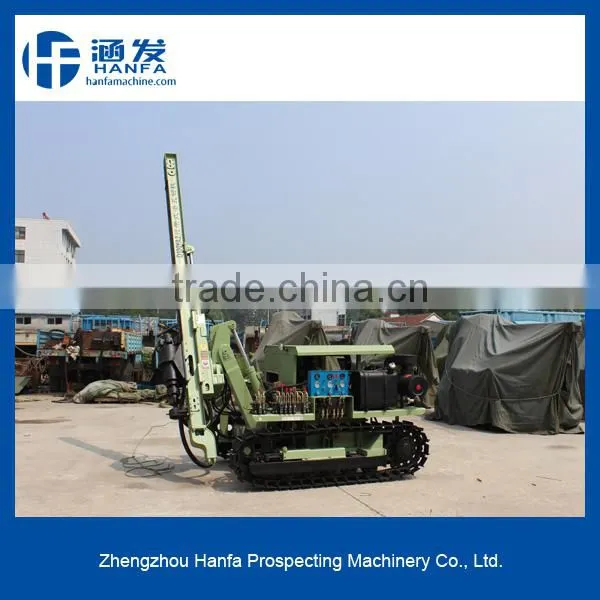

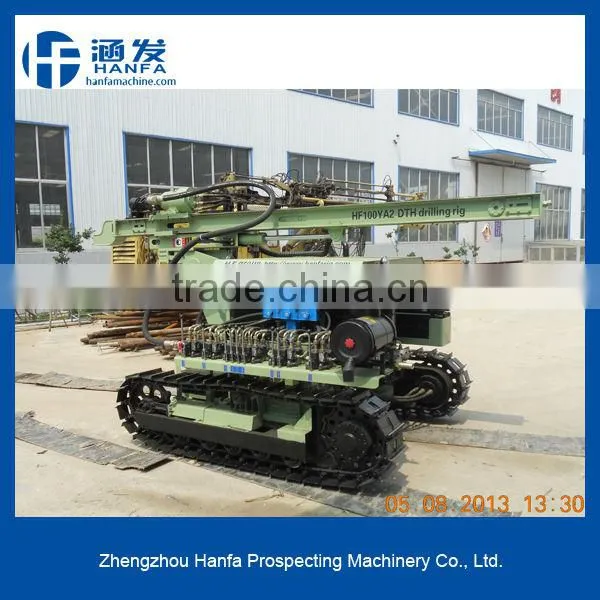

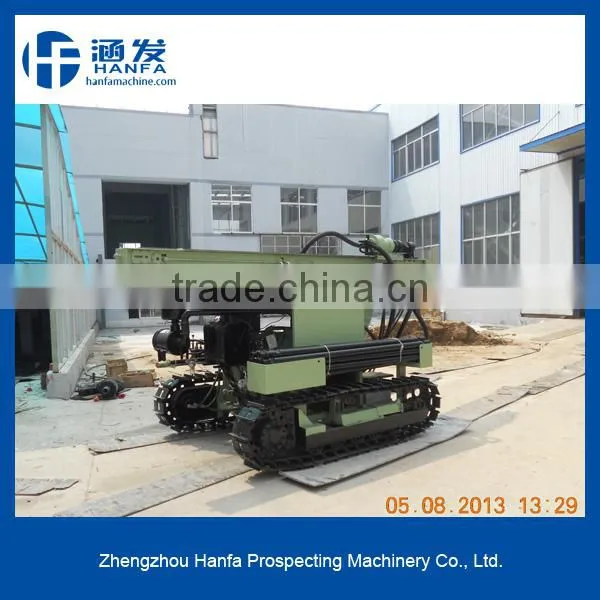

Most portable and economic!,HF100YA2 blasthole drilling rig
1,use with air compressor, high efficency
2, drill 90-130mm ,30m depth
3,high efficient,portable
Application ------ blastinghole drilling rig
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs.
Designed for multiple functions,our HF series water well/core drilling rigs are designed for geological exploration, water well drilling, soil sampling, core sampling(normal coring and wireline coring), pile drilling, etc.
Description------ blastinghole drilling rig
HF100YA2 crawler blasthole drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift convenient hole.
Advantages------ blastinghole drilling rig
This blasthole drilling rig structure compact, the smallest turning radius of only 2.8m, while promoting a retractable sliding shelf compensation, drilling hole when the sliding frame support on the ground, drilling and good stability.
The blasthole drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.
Technical Parameters------ blastinghole drilling rig
|
(kg) Total Weight |
2800 |
|
(mm) Drilling diameter |
90---130 |
|
(mm) Dimension (L * W * H) |
4100*2030*2020 |
|
(m) Drilling depth |
30 (max:40) |
|
(km/h) Travelling speed |
2 |
|
(mm) Once promotion distance |
2000 |
|
(°) Grade ability |
30 |
|
(mpa) Working pressure |
0.7—1.4 |
|
(mm) Chassis ground clearance |
260 |
|
(m³/min) Air consumption |
7--15 |
|
(°) Skid pitch |
up and down total 100 |
|
(kw) Host Power |
33 |
|
(°) Sliding tilt swing |
Left 35, right 10 |
|
(f) For rock |
6--20 |
|
(mm) Skid compensation |
900 |
|
(r/min) Impact frequency |
840 |
|
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
| |

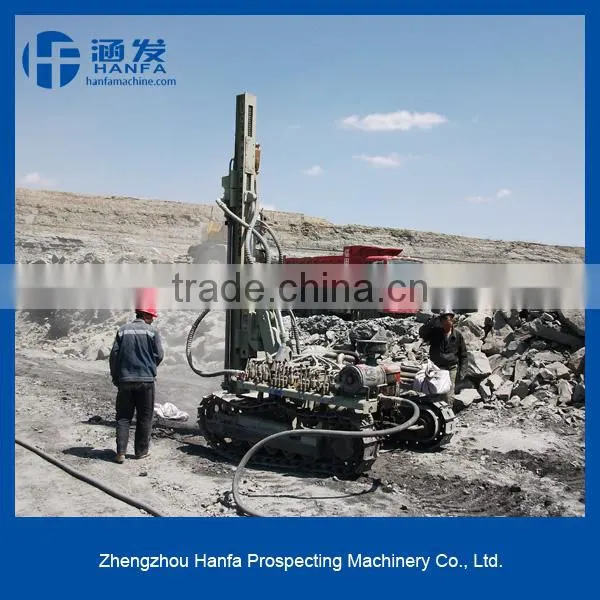

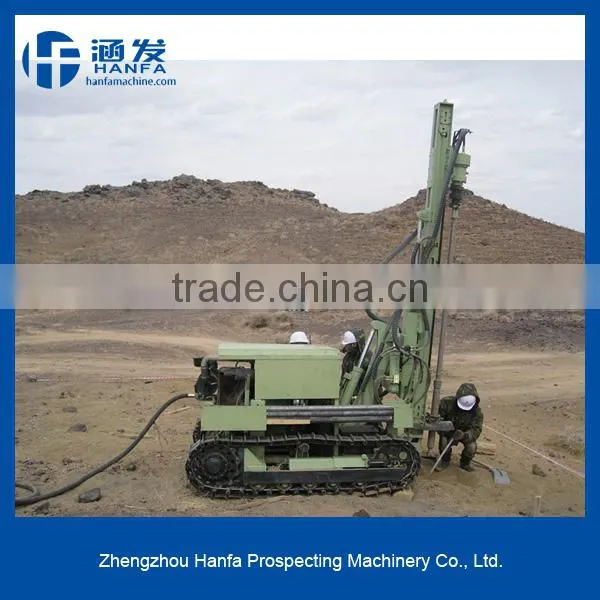

work in the outside ------ blastinghole drilling rig
Customers ------ blastinghole drilling rig
Packing ------ blastinghole drilling rig
