Specifications
HF130Y crawler drilling rig1,use with air compressor
2, for photovoltaic solar spiral pile
3,depth 20m-100m
4,crawler typ

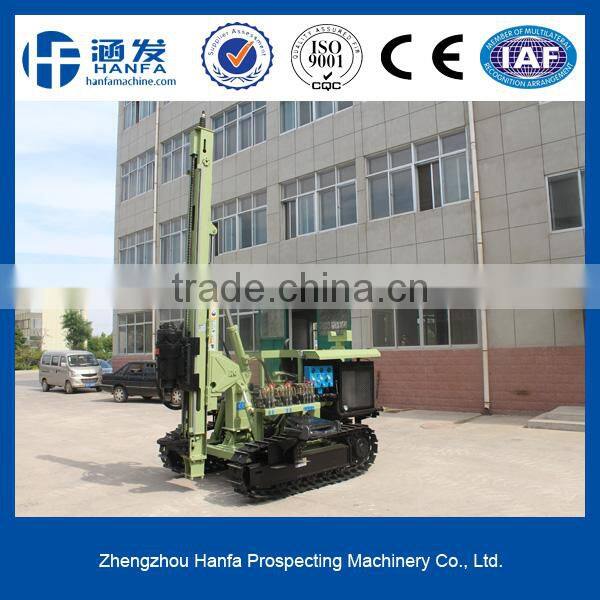

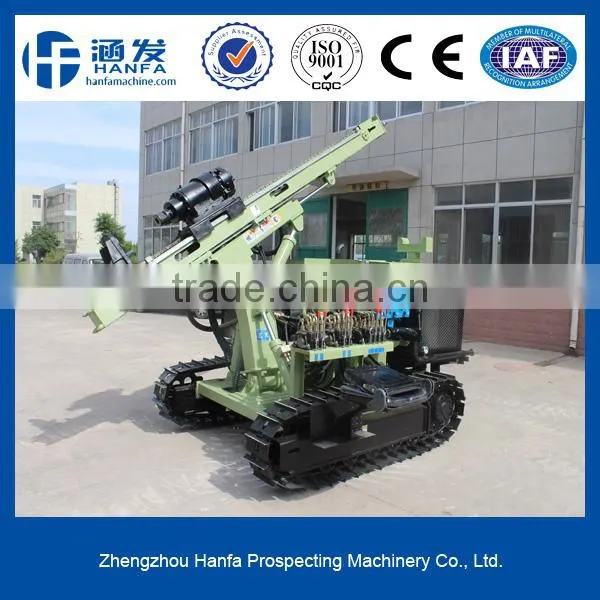

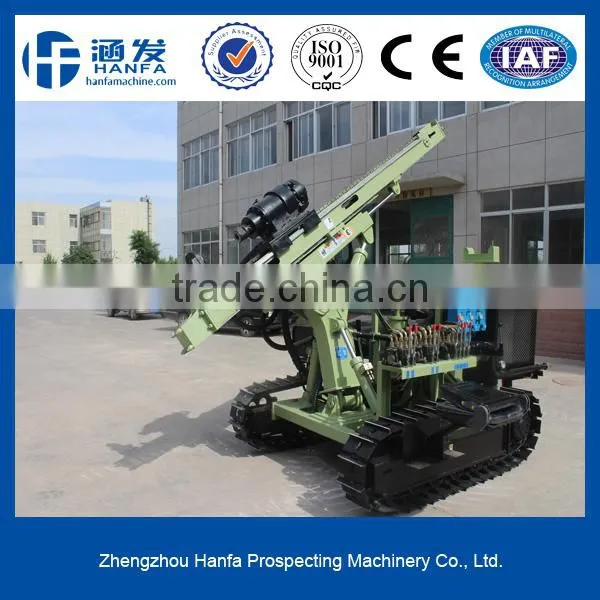

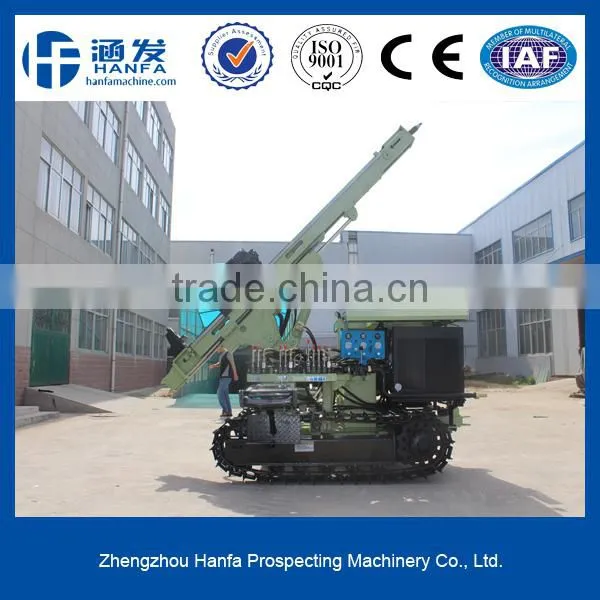

HF130Y crawler drilling rig
crawler drilling rig
1,use with air compressor
2, for photovoltaic solar spiral pile
3,depth 20m-100m
1. technical parameters about crawler drilling rig
HF130Y DTH drillig rig, using new type of hydraulic technology, low consumption, large rotary torque,
convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation
function.when drilling, the mast supported on the ground, borehole stability is good. HF130Y drilling rig has
reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency
The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction,
etc. The Technical parameters as follow:
Bore diameter(hammer) | 90-300mm |
Bore depth | 20-100m |
Air consumption | 10-26m³/min |
Air pressure |
0.7-1.6Mpa(medium)
1.6-2.46Mpa(high) |
Pipe diameter | 76mm/89mm |
For rock | F=6-20 |
Bore diameter(screw) | Max 400mm |
Bore depth | 0-30m |
Screw pipe diameter | 130-400mm |
Once promotion | 2000mm |
Skid pitch | 100° |
Swinging angle of skid | Left and right total 40° |
Rotation speed | 0-70r/min |
Host power | 56Kw |
Climb ability | 35° |
Dimension(L*W*H) | 4460*1950*2460(mm) |
weight | 4360Kg |
Walk speed | 0-2.5km/h |
