Specifications
HF410T rock drilling machine1.trailer type
2.hydraulic system easy operation
3.depth:0-150m
4.rotary and hammer

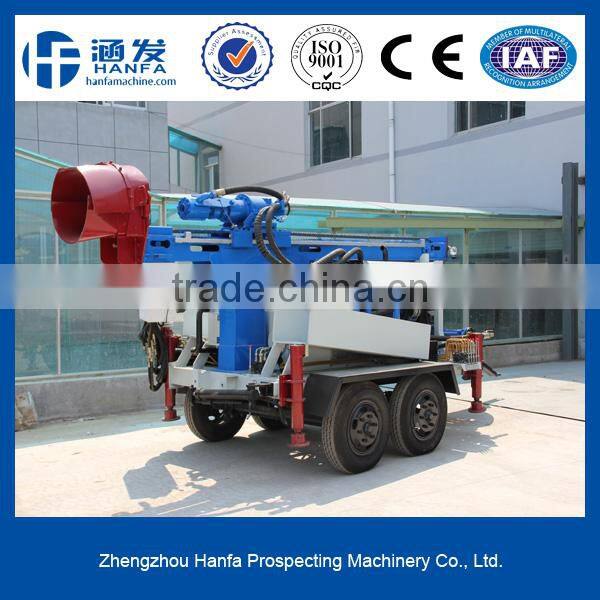

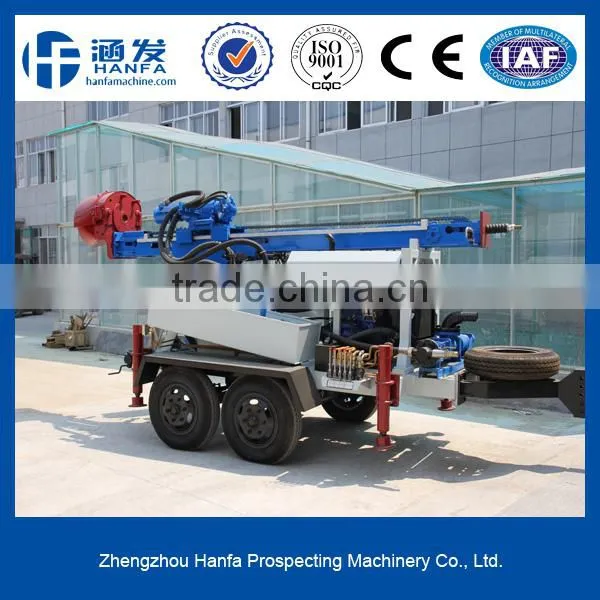

HF410T rock drilling rig
1. Application of HF series water well/core drilling rig
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs.
Designed for multiple functions,our HF series water well/core drilling rigs are designed for geological exploration, water well drilling, soil sampling, core sampling(normal coring and wireline coring), pile drilling, etc.
2. technical parameters about rock drilling rig
HF410T portable trailer core drilling rig is designed by our engineers borrowed the advanced technology from domestic and foreign countries.
The rig is reasonable design, complete matching, superior performance, easy to operate, easy to repair.
It is hydraulic drive, trailer type.
The drive head is driven by low-speed big torque motor, it has two-gear stepless speed regulating, advanced easy structure, steel wire feeding system.
The drilling rig is in good stability, attractive appearance and realizes the design principle of base on people. With large torque, high configuration, reasonable design, advanced control way assure the efficient working. The diesel engine of the drilling rig is low emission, professonal drop noise design, so it can used in various construction sites.
With nice appearance, compact structure, reliable performance, easy operation, the drilling rig is the best choice. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.
Description | HF410T |
Geology drilled | All kinds |
Drill depth | 0-150 m |
Drilling Diameter | 90 - 220mm |
Drill system and operation | Hydraulic |
Rig assembly | 1 complete unit, main engine driven |
Mobility | 4 wheel tandem road trailer |
Transportation | Towed by pickup or light truck |
Drill pipe (diameter x length) | 60/76 mm x 2 m |
Mud pump | 400 L/min@ 6 bar progressive pump |
Foam pump | Hydraulic driven, mounted on rig |
Weight | 2400kg |
ROTARYHEAD&FEED SYSTEM |
|

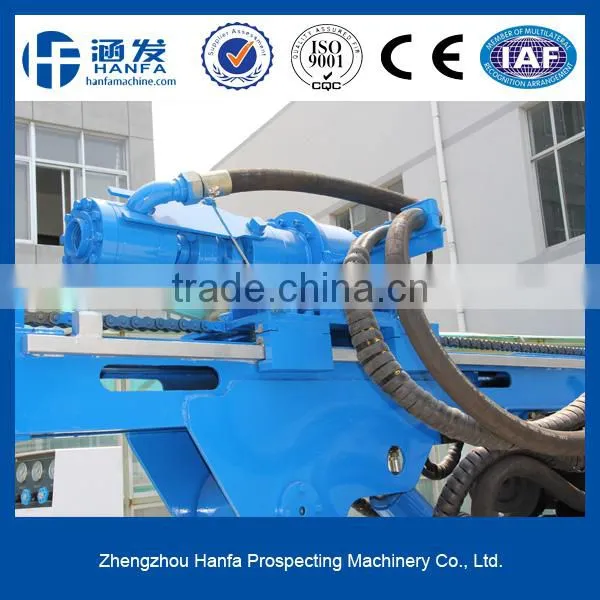

Top head drive by a hydraulic cylinder through heavy duty chain. | |
Rotation torque | 2232 N-m |
Speed | 0 - 34 rpm. |
Head travel | 2.25 meter |
Pull-up capacity | 3813.09 kg. |
Pull-up speed-slow feed | 1.22 meter/min |
Pull-up speed-rapid feed | 12.26 meter/min |
Pull-down speed-slow feed | 0-1.88 meter/min |
Pull-down speed-rapid feed | 0- 16.90 meter/min |
DRILL PIPE |
|
Drill pipe length | 2.00 meter |
Drill pipe diameter | 76 mm |
Thread | 2 3/8 REG API Mod |
Power pack speed | 3000 rpm. |
Load power pack | max. 47 hp. |
MUD PUMP |
|
Flow capacity | 400 liter/min |
Max. working pressure | 6 bar |
HYDRAULIC SYSTEM |
|
Hydraulic tank capacity | 140 liter |
STABILIZING JACK |
|
2 front jacks and 2 rear jacks. |
|
Bore | 80 mm. |
Stroke | 480 mm |
AIR SYSTEM |
|
Lubricator of venturi-type for down-the-hole drills. | |
Max. pressure | 40 bar |
Oil tank capacity | 8 liter |
DIMENSIONS |
|
Overall length | 4540 mm |
Overall width | 1750 mm |
Overall height | 1900 mm |
Diesel engine | |
Power | 45KW |
MODEL | YC2115 |
