Best sale!CE certificate!!Quality ensure!!HF140Y hydraulic crawler rock drilling rig

FOB Price

USD $30,000 - $42,000 / Set

1 Set(Min.Order)

Supply Ability 150 Set / Sets per Month
Port Qingdao Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Core Drilling Rig
Power Type	Diesel	Place of Origin	Henan, China
Brand Name	HF	Model Number	HF140Y
Usage	Ore	Certification	CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

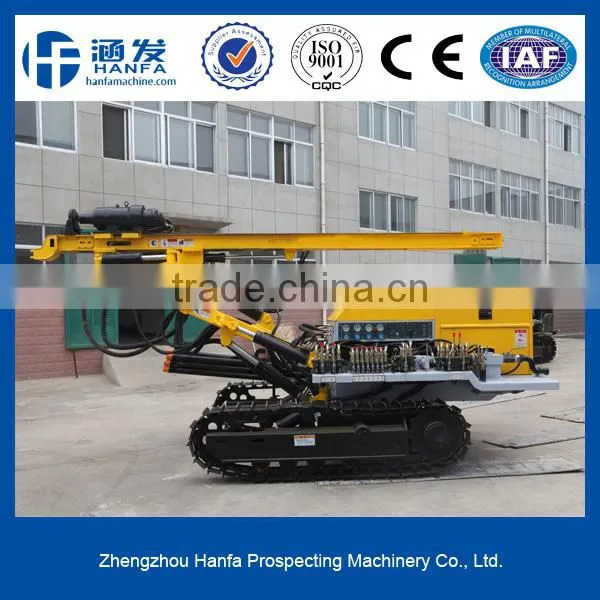

HF140Y hydraulic crawler rock drilling rig
1,use with air compressor or mud pump
2, for photovoltaic solar spiral pile

HF140Y hydraulic crawler rock drilling rig

Introduction

HF140Y High Air Pressure DTH Drill Crawler open with a low energy consumption, high efficiency, easy to transport and field construction superior technical performance, vehicle movement organizations from the hydraulic system to achieve, and only washed the source of the wind machine consumption, resulting in Air Machine Matching saves in a complete set of equipment procurement costs.

Rotary organizations to adopt a new dual-motor turret to make it to the open-air blast drilling operations when drilling large holes to maintain a strong rotary torque output, dragging air compressor, it has the mobile and flexible and climbing ability, suitable for rugged venue operations, perforation shift convenience features.

Whole diameter 115-165mm, with a piercing, high efficiency, Maintenance is simple, high reliability, is a mining, highway, water conservancy, power station construction and other construction ideal for drilling rig operations.

III. Main technical parameters

Bore diameter	115-140mm
Bore depth	60m
Walk speed	0-2.5kw/h
For rock	F=6-20
Air pressure	1.05-2.46Mpa
Air consumption	10-20m³/min
Once promotion	3000mm
Skid pitch	Up and down total100°
Skid swing angle	Up and down total100°
Boom swing angle	Left and right total 70°
Boom pitch	Up and down total 60°
Host power	56Kw
Rotation speed	0-126/min
Dimension(LWH)	527019502300(mm)
weight	4800Kg
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
