Quality Ensure!!trailer Type,for Industrial and Agricultural Water Conservancy Projects,HF150T Bore Well Drilling Machinery

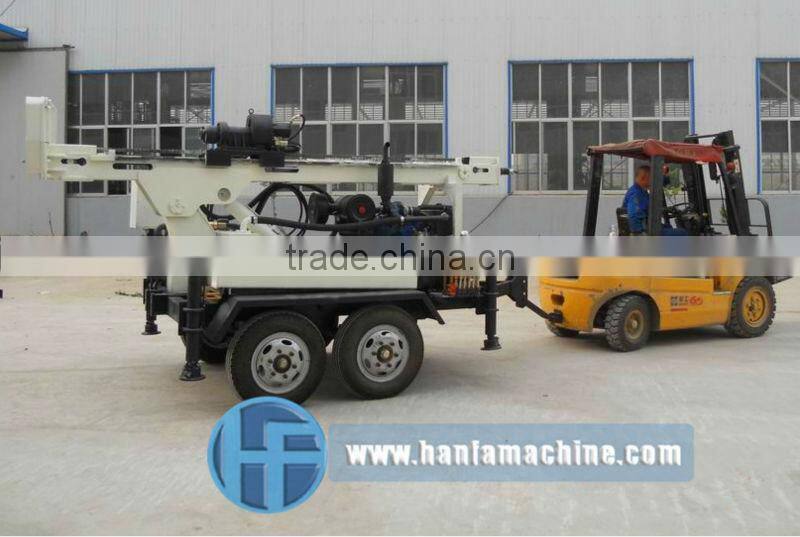

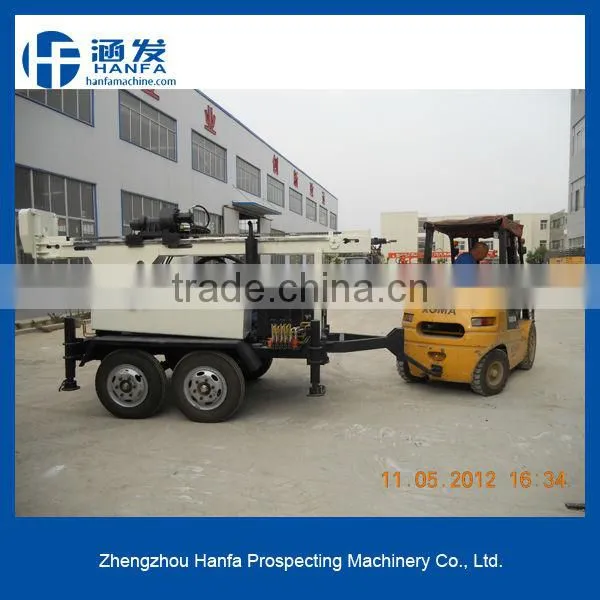

Quality Ensure!!trailer Type,for Industrial and Agricultural Water Conservancy Projects,HF150T Bore Well Drilling Machinery photo-1
US$ 19,000 - 125,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name HF
Model Number HF150T
Usage Ore
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
Dimension(L*W*H) 4400*2100*2300mm

Specifications

HF150T bore well drilling machinery
1)hydraulic&trailer type
2)rock expert,high efficiency
3),high efficient,portable

     HF150T bore well drilling machinery

  Quality ensure!!trailer type,for industrial and agricultural water conservancy projects,HF150T bore well drilling machinery

  HF150T track-type water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.

Quality ensure!!trailer type,for industrial and agricultural water conservancy projects,HF150T bore well drilling machinery

 Technical data



Total Weight (kg)

2800

Drilling diameter (mm)

90---203mm

Dimension (L * W * H)(mm)

4400*2100*2300

Drilling depth(m)

0-150m

Speed of Rotary

  0---90r/min

  Torque of Rotary

2000N.m

Once promotion distance (mm)

2000

Working pressure (Mpa)

1.2---2.46

Air consumption (m³/min)

16---25

Host Power (Kw)

45

Rotate speed of diesel engine

2400

For rock (f)

6----20

Impact frequency (r/min)

 0900

Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
