Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Most Popular on the Market!!perfect Drill Rig,high Efficent!!! HF100Y DTH Drilling Rig for Mining
Most Popular on the Market!!perfect Drill Rig,high Efficent!!! HF100Y DTH Drilling Rig for Mining
US$ 12,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Down the hole drilling rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
600m Drilling Depth Fresh Water Well Drilling Rigs 2012 Hot Sales!!US$ 50,000 - 53,000MOQ: 1 Set -
Truck Mounted Water Well Drilling Rigs 2012 Hot Sales!!US$ 50,000 - 53,000MOQ: 1 Set
-
2012 Hot Sales Truck-mounted Deep Water Well Drilling RigsUS$ 50,000 - 53,000MOQ: 1 Set
-
Blasting Hole Drilling!!! HF100YA2 Crawler DTH Blast Hole Drilling RigNegotiableMOQ: 1 Set
-
HF-200Y Hydraulic Crawler Water Well Drilling RigUS$ 50,000 - 200,000MOQ: 1 Set
Condition
New
Type
Other, Down the hole drilling rig
Power Type
Diesel
Brand Name
Hanfa
Model Number
HF100Y
Usage
Water Well
Power(W)
18.6KW
Dimension(L*W*H)
4100*2030*2020
Weight
2600KG
Certification
ISO
Warranty
12Months
After-sales Service Provided
Engineers available to service machinery overseas

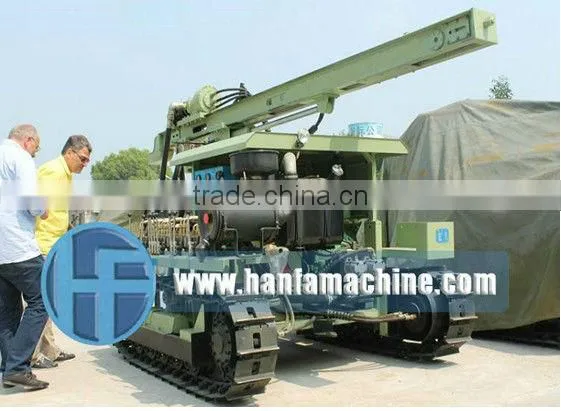

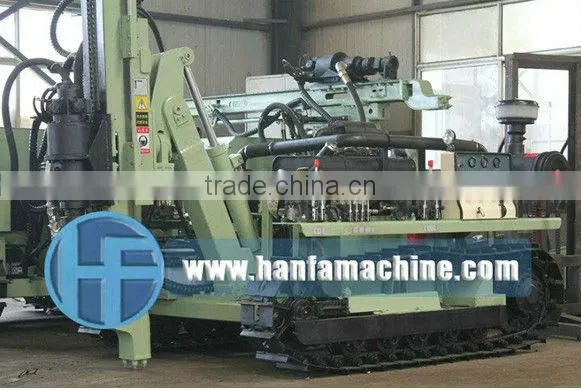

HF100Y DTH Drilling Rig for Mining
I. Application
HF100Y DTH drilling rig can be used for urban construction, railway, highway, river, hydroelectric project and other projects in the rock drilling anchor holes, blast hole, bolt holes, blow holes, grouting hole, etc. It could drill hard rock with rock hardness f = 8-16.
II. Features
1. Caterpillar type, easy to transport.
2. High mechanical efficiency, low cost and stable performance.
3. Easy to operate, needing little experience to operate.
4. Economical and reasonable price.
| Main Machine Technical Parameter | |
| Model | HF100Y |
| Borehole diameter | 90-130mm |
| Rock type | Rock, hard rock, f=8-16 |
| Bore depth | 30m |
| Air pressure | 0.7-1.0Mpa |
| Air consumption | 7-15m³ /min |
| Flush-out frequency | 840 r/min |
| Gradeability | 30° |
| Travel speed | 2km/h |
| Pitch angle of carriage | up and down 10° |
| Tilt angle of carriage | left 35° right 10° |
| Length compensation of carriage | 900m |
| Engine | |
| Oil | diesel |
| Power | 18.6KW (25HP) |
| Weight | 2.6T |
