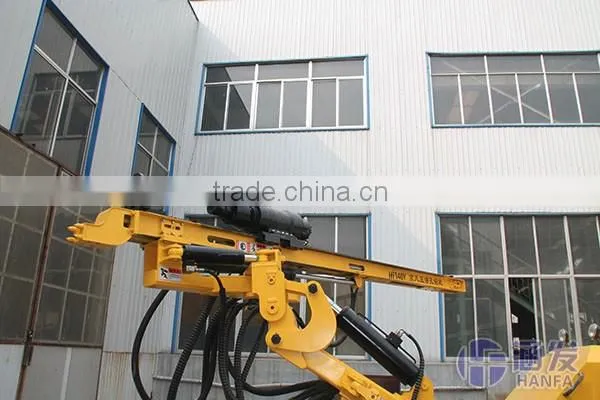

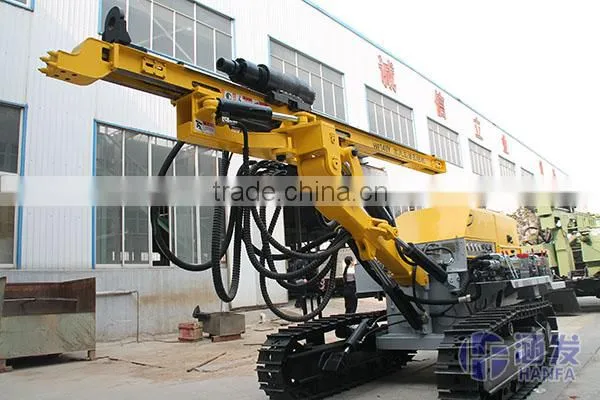

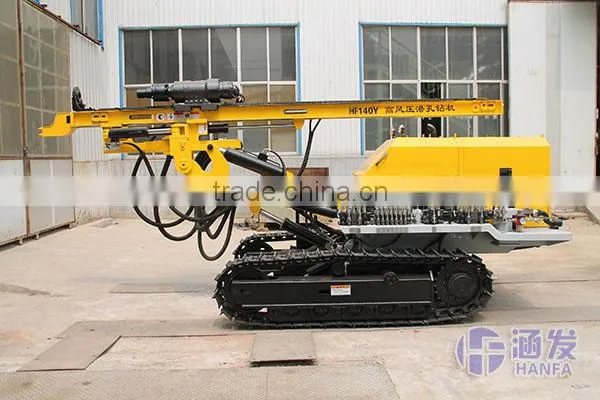

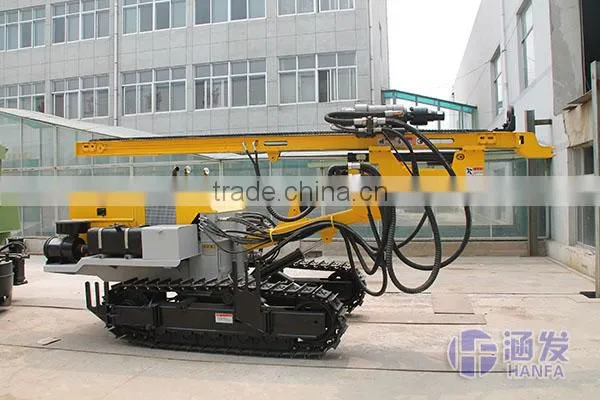

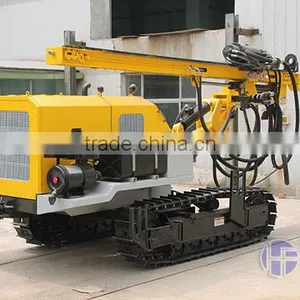

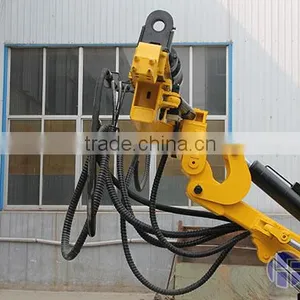

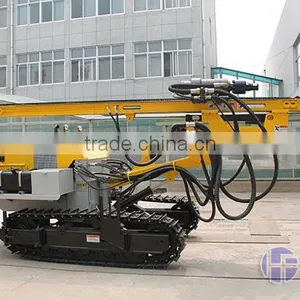

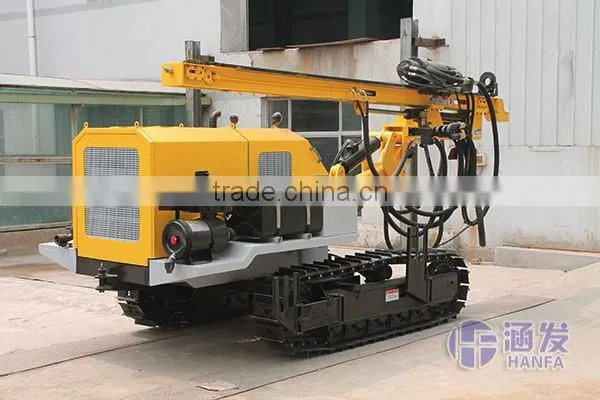

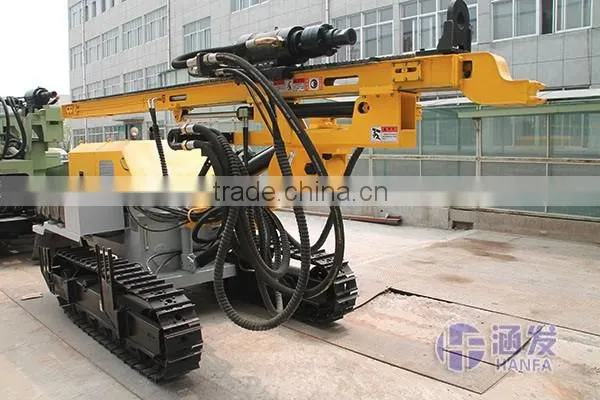

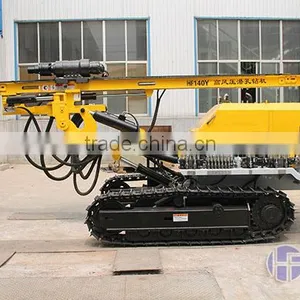

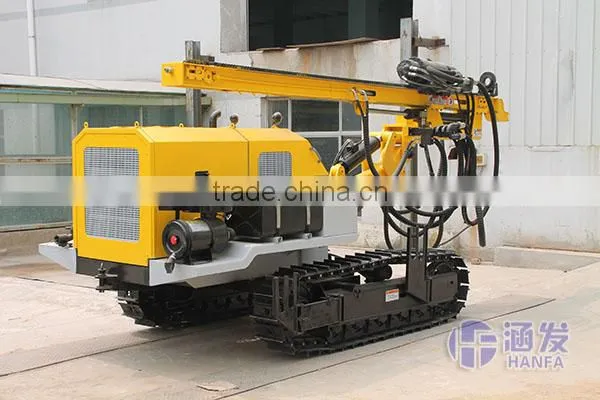

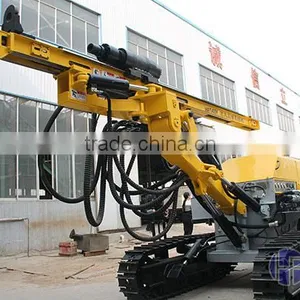

HF140Y hydraulic crawler rock drilling rig
Introduction

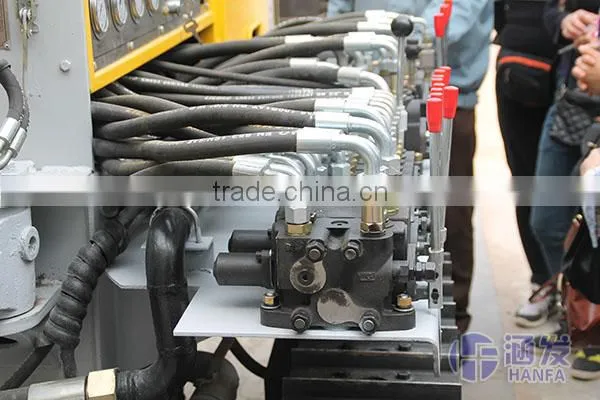

HF140Y High Air Pressure DTH Drill Crawler open with a low energy consumption, high efficiency, easy to transport and field construction superior technical performance, vehicle movement organizations from the hydraulic system to achieve, and only washed the source of the wind machine consumption, resulting in Air Machine Matching saves in a complete set of equipment procurement costs.
Rotary organizations to adopt a new dual-motor turret to make it to the open-air blast drilling operations when drilling large holes to maintain a strong rotary torque output, dragging air compressor, it has the mobile and flexible and climbing ability, suitable for rugged venue operations, perforation shift convenience features.
Whole diameter 115-165mm, with a piercing, high efficiency, Maintenance is simple, high reliability, is a mining, highway, water conservancy, power station construction and other construction ideal for drilling rig operations.
III. Main technical parameters
Bore diameter |
115-140mm |
Bore depth |
60m |
Walk speed |
0-2.5kw/h |
For rock |
F=6-20 |
Air pressure |
1.05-2.46Mpa |
Air consumption |
10-20m³/min |
Once promotion |
3000mm |
Skid pitch |
Up and down total100° |
Skid swing angle |
Up and down total100° |
Boom swing angle |
Left and right total 70° |
Boom pitch |
Up and down total 60° |
Host power |
56Kw |
Rotation speed |
0-126/min |
Dimension(L*W*H) |
5270*1950*2300(mm) |
weight |
4800Kg |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. | |

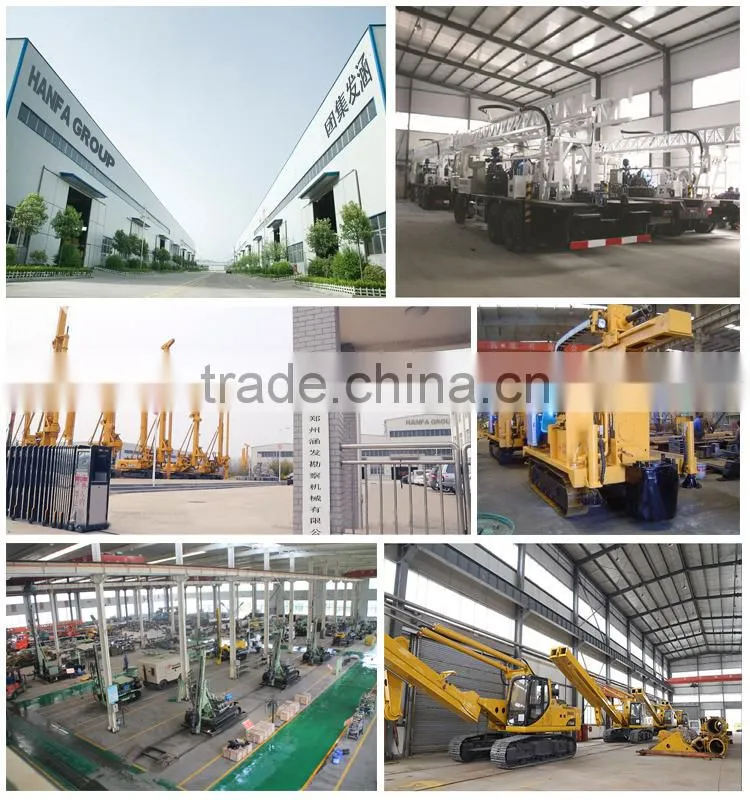

About us

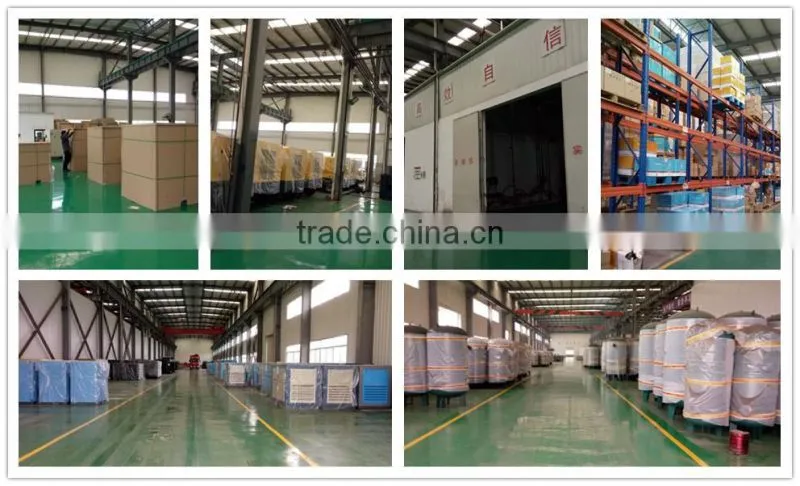

our certificated information
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
