for Water Well Drilling, Truck Mounted HFT350A Water Well Drilling Machine

for Water Well Drilling, Truck Mounted HFT350A Water Well Drilling Machine photo-1
US$ 60,300 - 73,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, rotary and DTH drill rig
Power Type:
Other, diesel engine or air compressor
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, rotary and DTH drill rig
Power Type Other, diesel engine or air compressor
Place of Origin Henan, China
Brand Name HF
Model Number HF350A
Usage Water Well
Dimension(L*W*H) 8900x2100x3300 mm
Certification CE certificate
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

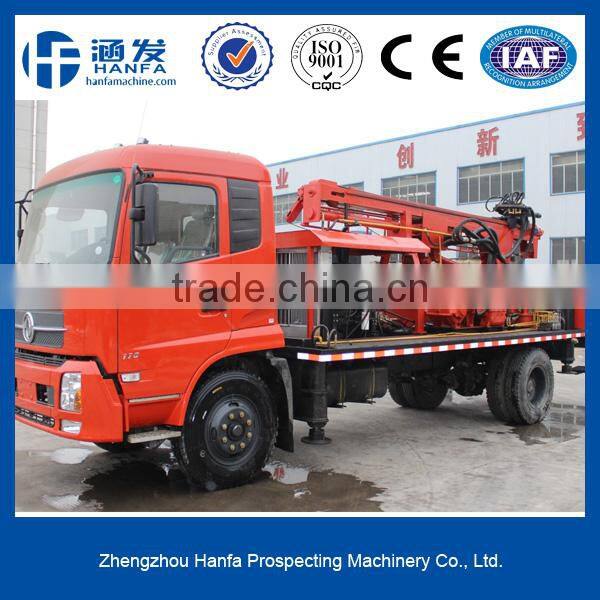

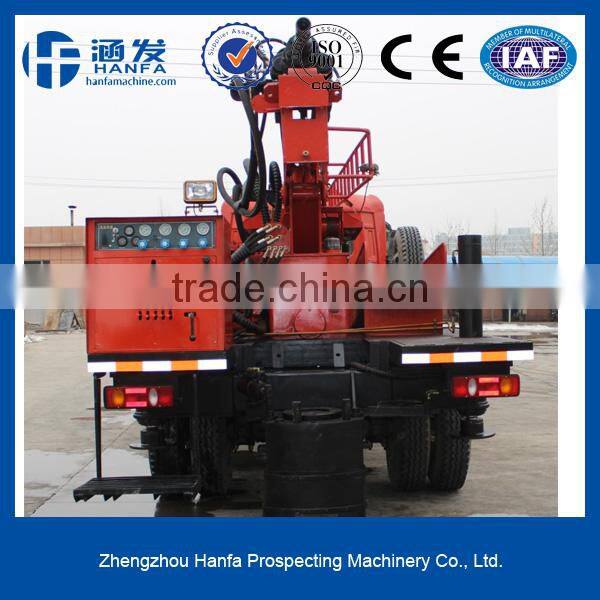

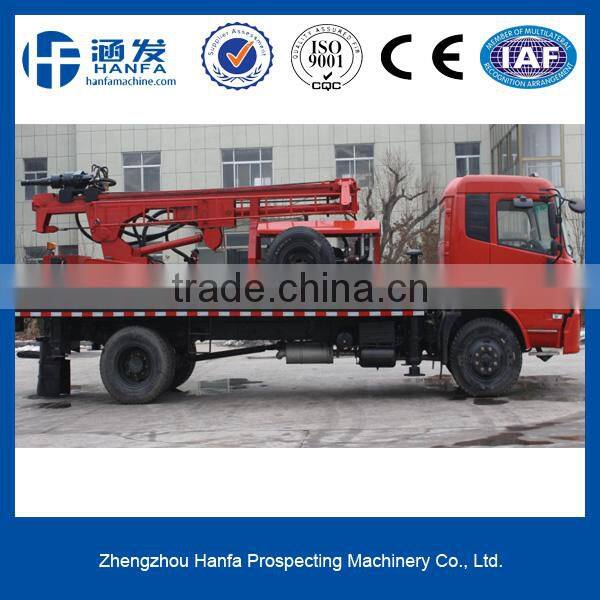

HFT350A water well drilling machine
1.depth 320m,dia.115~350mm
2.truck mounted,easy transport
3.rotary & DTH drill rig
4.hot

for water well drilling, truck mounted HFT350A water well drilling machine



Main features:



HFT350A truck mounted drilling rig is designed by our engineers, it adopts truck mounted and is a rotary and

DTH drilling rig, and it can drill on clay, sand and rock Easy operation, easy maintenance, whole drilling

system install on heavy duty truck, it solves mountain, field work transport and lifting problems;



It is widely used in industrial and agricultural water conservancy engineering, wells and other exploration well

hole, also can meet the engineering foundation reinforcement, loose sand and gravel strata with pipe drilling;

for water well drilling, truck mounted HFT350A water well drilling machine

for water well drilling, truck mounted HFT350A water well drilling machine



Technical parameters:



Drilling diameter (mm)

115~350

Drilling depth (m)

320

Work Pressure(Mpa)

1.05~3.5

Consumption (m³/min)

16~40

Drill pipe length (m)

3

Drill pipe diameter (mm)

76/89

Dimension(mm)

8900x2100x3300

Grade ability (°)

20

Footage efficiency(m/h)

5~20

Feed systems

Axle pressure (N)

57000

Lifting power (T)

12

Rotation torque (Nm)

5600

Rotation speed

0--100

Diesel engine



Model

Yuchai

Power (Kw)

84

Truck Chassis : DONGFENG

Model

Cummins

Wheel base

5000mm

Horse power

170HP

Gear box

6 speed

Top speed

85Km/h

Fuel type

diesel

Tire size

90.00-20R

Drive form

4*2



for water well drilling, truck mounted HFT350A water well drilling machine

for water well drilling, truck mounted HFT350A water well drilling machine

for water well drilling, truck mounted HFT350A water well drilling machine

for water well drilling, truck mounted HFT350A water well drilling machine

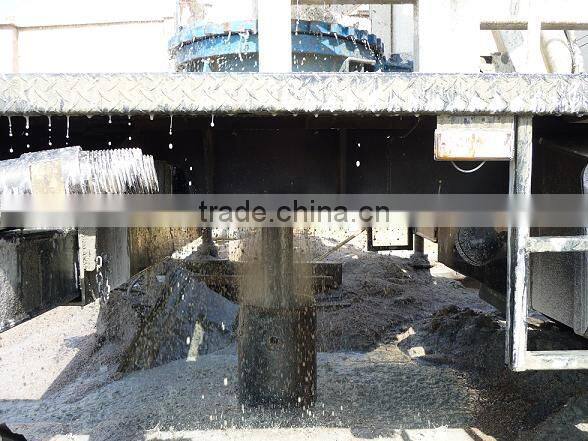

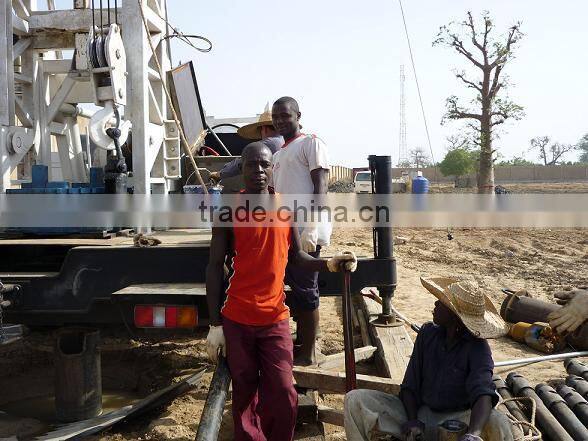

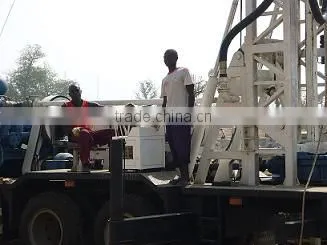

In working site
