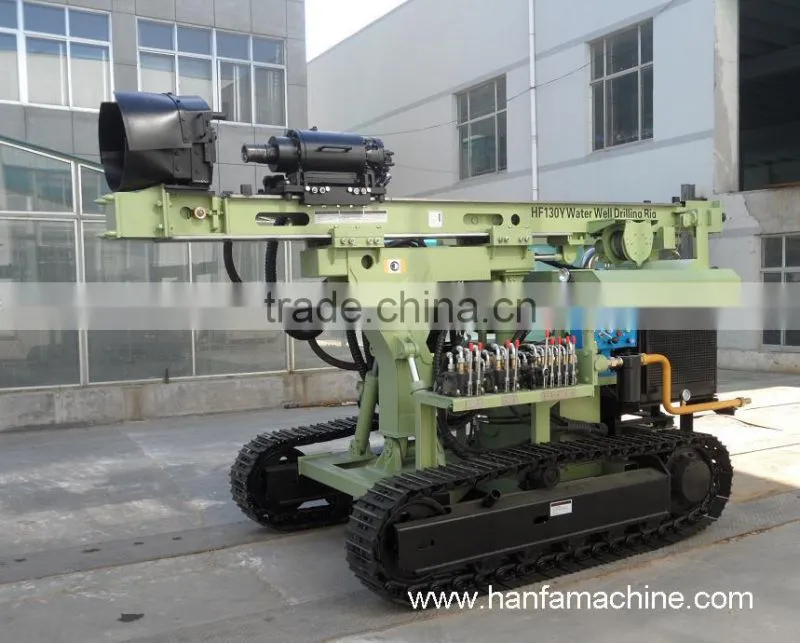

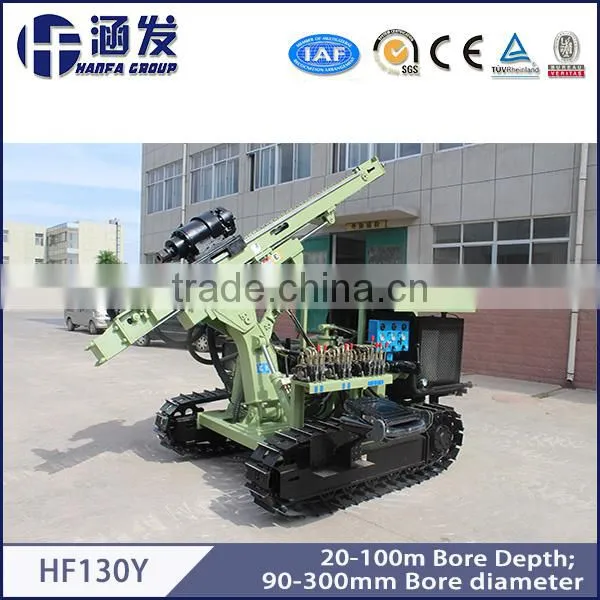

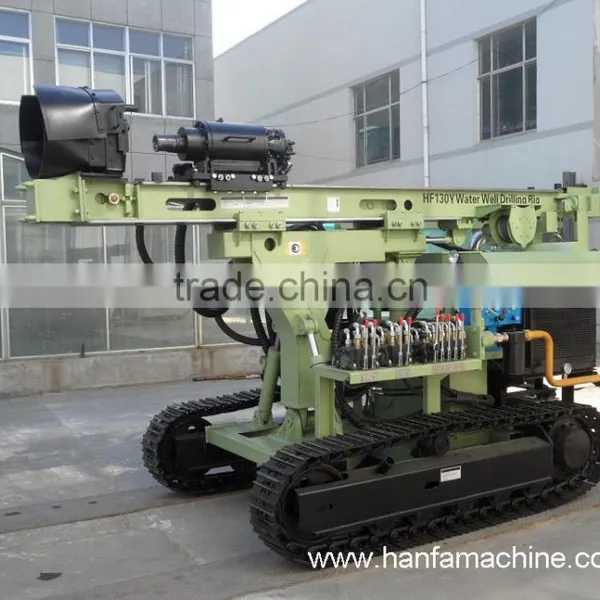

High efficent!!! HF130Y crawler type borehole drilling machine for sale
1.HF130Y portable water well drilling rigs , using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection.
2.The drilling machine structure is compact, while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good.
3.HF130Y portable water well drilling rigs has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency.

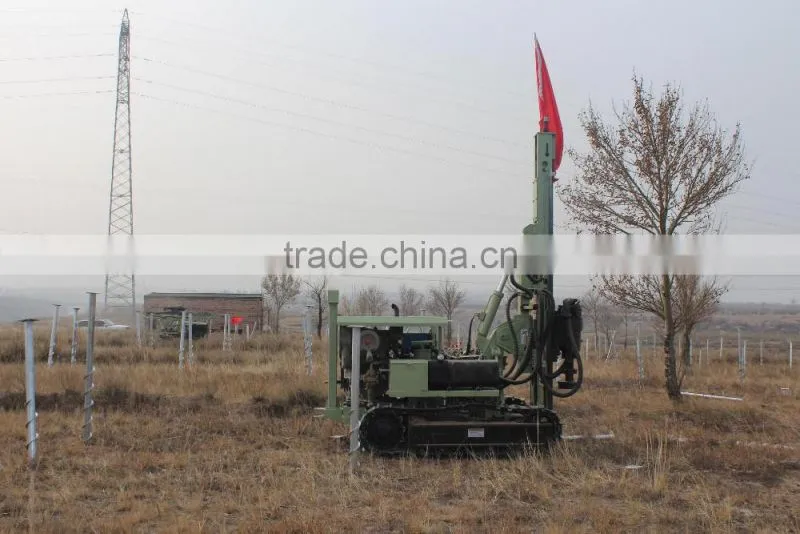

4.The drilling rig is mainly used for piling anchor, water wells, photovoltaic solar spiral pile, DTH blasting construction, etc.
HF130Y portable water well drilling rigs technical data:
Bore diameter(hammer) |
90-300mm |
Bore depth |
20-100m |
Air consumption |
10-26m³/min |
|
Air pressure |
0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
Pipe diameter |
76mm/89mm |
For rock |
F=6-20 |

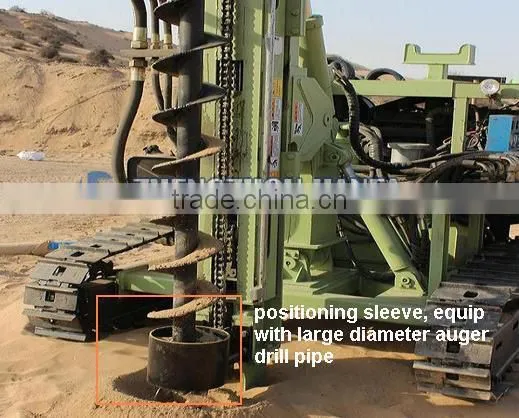

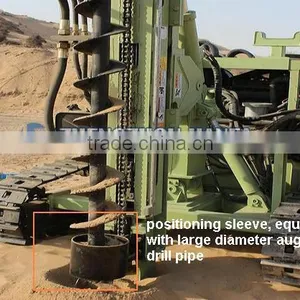

Bore diameter(screw) |
Max 400mm |
Bore depth |
0-30m |
Screw pipe diameter |
130-400mm |
Once promotion |
2000mm |
Skid pitch |
100° |
Swinging angle of skid |
Left and right total 40° |
Rotation speed |
0-70r/min |
Host power |
56KW |
Climb ability |
35° |
Dimension(L*W*H) |
4460*1950*2460(mm) |
Weight |
4360Kg |
Walk speed |
0-2.5km/h |
|
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. | |

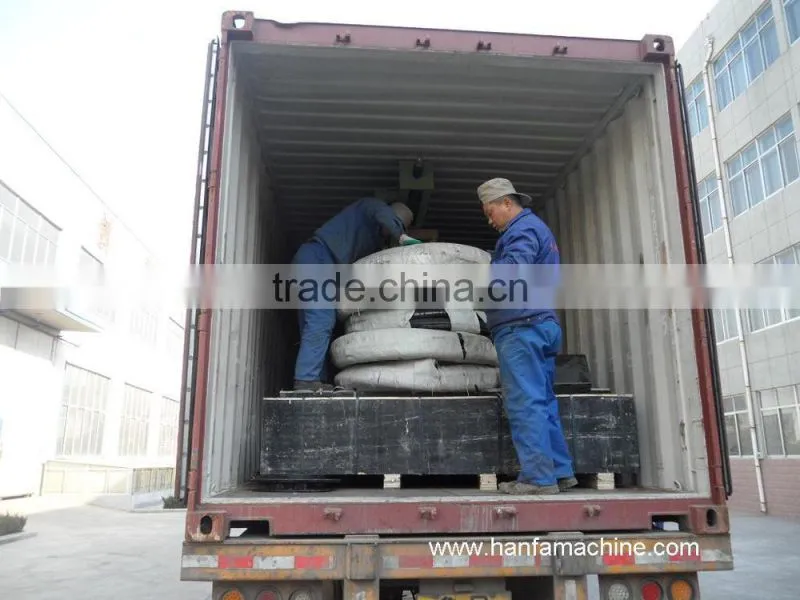

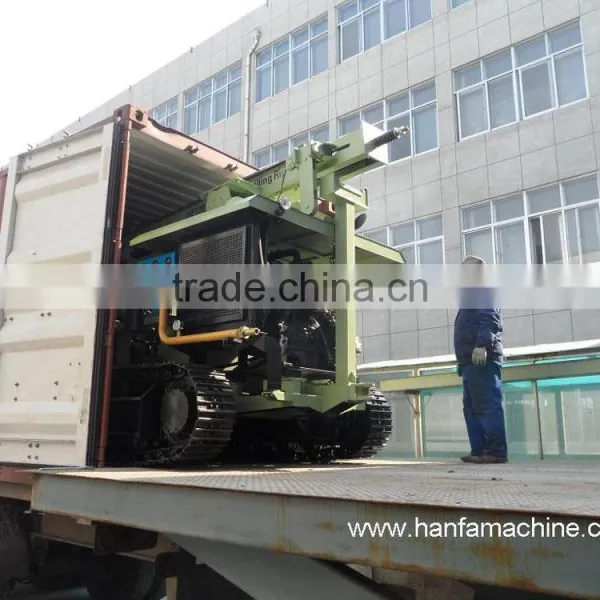

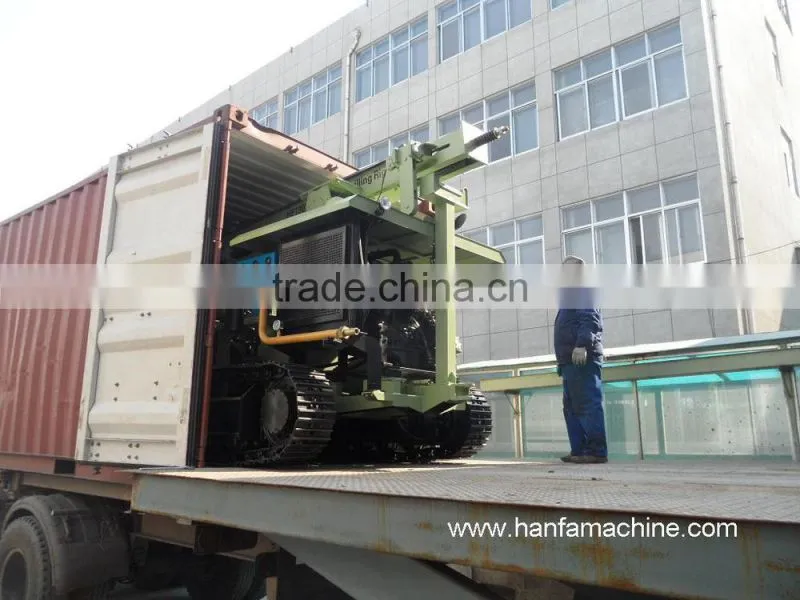

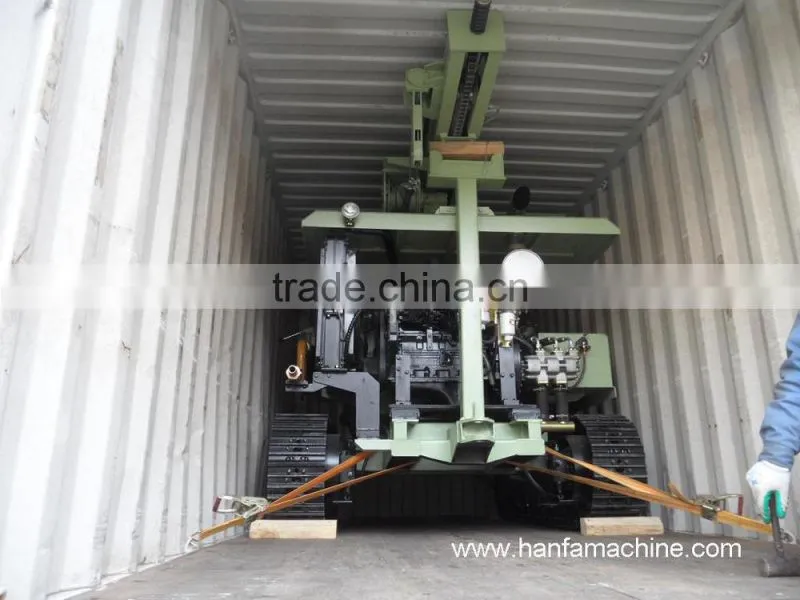

Delivery

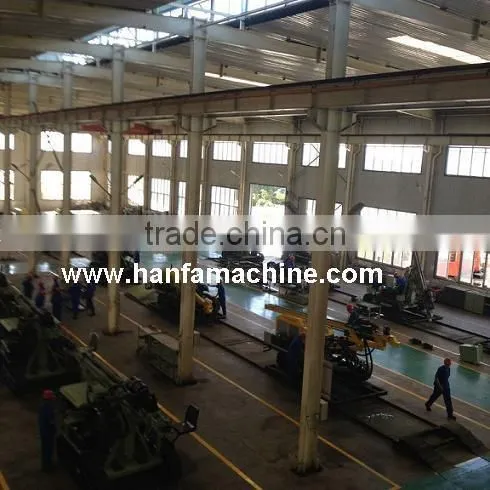

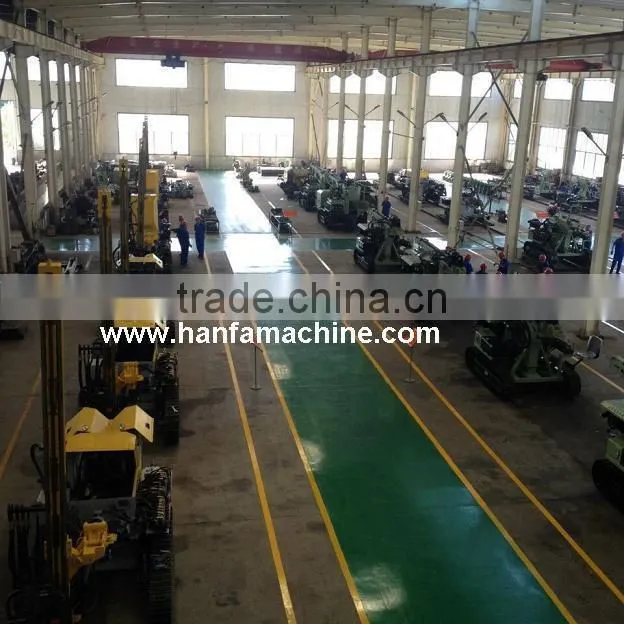

About us

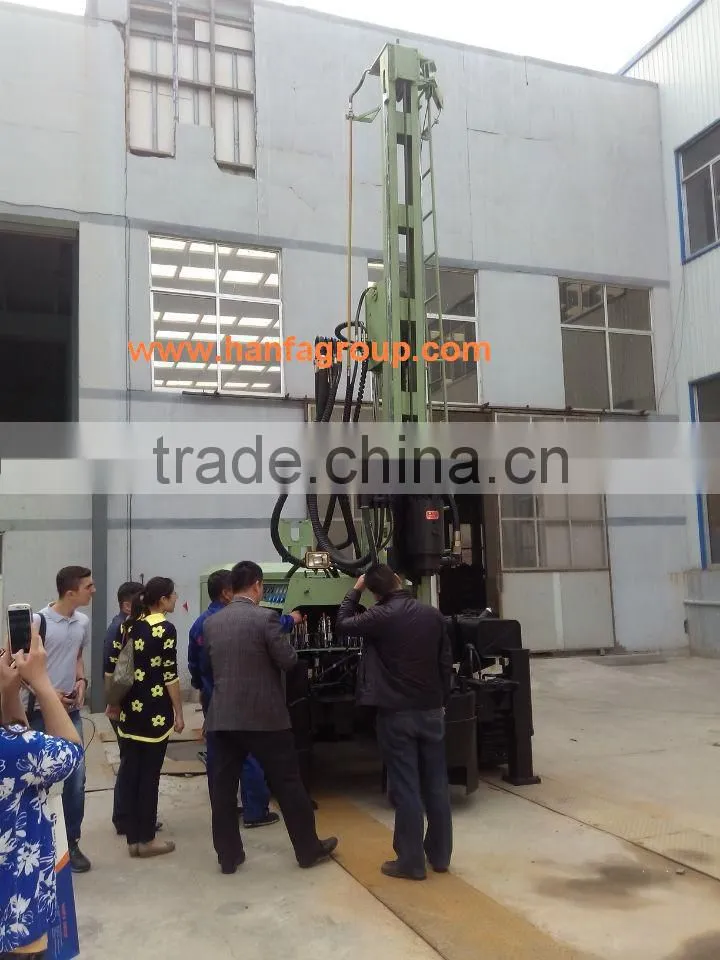

Customers visiting
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
