Home > Products > Core Drill Rig > HFQ100 DTH drilling rig portable air & Full hydraulic drilling rig

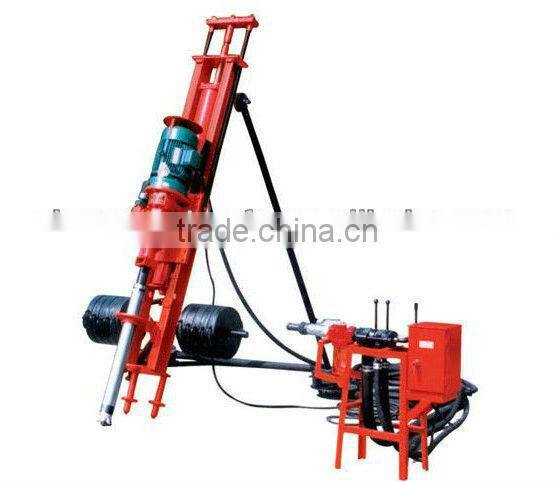

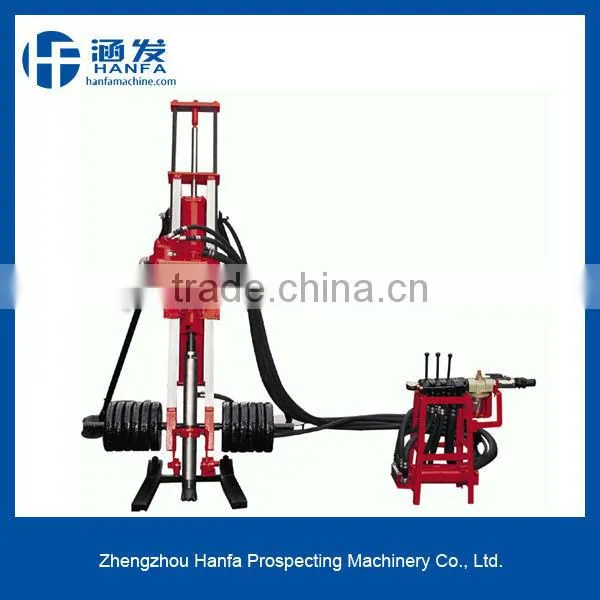

HFQ100 DTH drilling rig portable air & Full hydraulic drilling rig
- 20 Set / Sets per Month
- Qingdao
- 3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
- 2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
- The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
- Coal mine tunnel drilling rig ZLJ350 head can be turned
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
Condition: | New | Power Type: | Other | Brand Name: | Hanfa |
Model Number: | HFQ100 | Usage: | Water Well | Power(W): | 4KW |
Weight: | 260KG | Certification: | ISO | Warranty: | 12Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
DTH drilling rig, HFQ100 portable air & Full hydraulic drilling rigDTH drilling rig, HFQ100 portable air & Full hydraulic drilling rig
HFQ100 portable Motor Drive DTH Drill Rig use common motor as driving force ,economic ,high efficiency ,energy saving
It adapt cycloid reducer ,big rotary torque ,high drilling efficiency
Steady and reliable performance ,light weight ,easy to transport.
Parameters:
Model | HFQ100 |
Rock stratum | f=8~16 |
Drilling diameter | 80~130mm |
Drilling depth | 20m |
Power | 4KW |
Max. lifting ability | 9.6KN |
Work Air pressure | 0.5~0.7Mpa |
Air comsumption | 7m3/min |
Rotating speed(no load) | 110~160r/min |
Weight | 260Kg |
