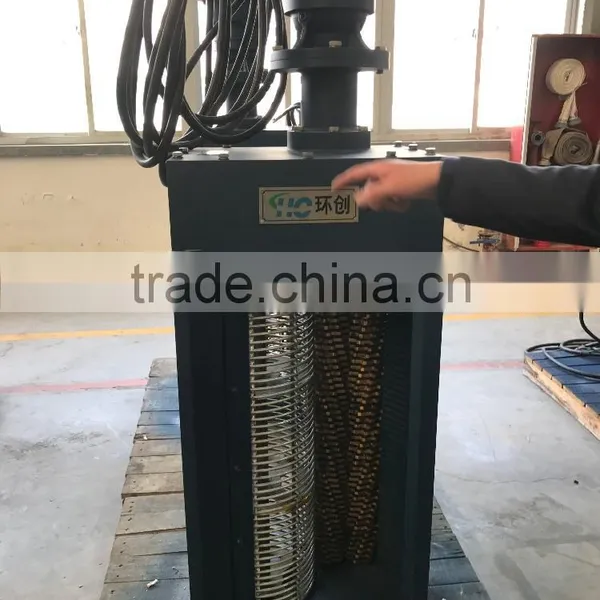

wastewater treatment plant by single drum grinder
- 10 Set / Sets per Month
- xiamen
- T/T
- excavator diesel engine Oil filter element 9N-3367
- 10g 7g ozone generator for lab waste water treatment
- PW USP Purified Water Generation Systems For Making Pill Form Drugs
- SS316L Pharma Purified Water System FDA USP cGMP GMP Standard
- Water Filters Systems Sand Carbon Purification RO To Drinking Water Treatment Machinery
- BPE SS Pipeline Pharmaceutical Water Systems With Diaphragm Valve
Product Details
Place of Origin: | Fujian, China | Brand Name: | HC | Model Number: | HC |
Product Description
Product Application
Operation Principle
protects water pump,prevents jamming.
1. Solids enter grinders through open channel.
2. Solids pass through cutters for size reduction.
3. Solids are cut into smaller particles and no threat to downstream equipment.
Materials of Construction
Motor: Customized, multiple power options
Reducer: Planet gear reducer, good ability to against the load impact
Cutter and spacer: heat-treated alloy steel 4130 with surface harden evenly.
The hardness is not less than 45~50HRC
Shaft: heat-treated alloy steel 4140
Mechanicals Seals: Tungsten Carbide faces
Housings: Ductile cast iron ASTMA 536
Frame: Stainless steel(304,316)
Main Features
Ease and Flexibility of Installation
● Adapts to most existing pipelines with little or no modification
Mechanical Seals
● Pressure capability up to 6.3kg/cm2;
● No seal flush required and no packing gland to adjust;
High-Flow Side Rails
● Increases flow capacity and decreases head loss
● Directs solids into the cutting chamber
Dual Shaft Design
●Low-speed, high torque grinders handle rags, rocks, wood, clothing, plastics and other debris
●Capable of handling a wider variety of solids than single shafted machine
Cutter Options
●Customized cutters with various tooth configurations to meet special application
Low Profile Bottom end housing
● More of the cutting chamber is utilized during low flow
Top Fastening Devices
● Easy to fasten without lifting out of the channel
Machine Parts

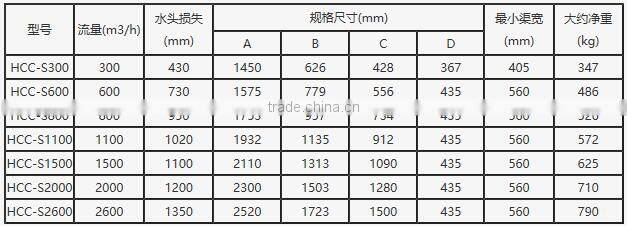

Name: No drum channel grinder specification
Brand:HC
Original: China
Main Features
No Drum Channel Grinder Specification is suitable for small channel with flow rate from 80m³ -1000 m³/hour.
optional main spare parts:
motor: IP55, IP68
optional: Dry & wet :IP55;Submersible &anti-explosion:IP68
Brand: HC
Original: China
optional main spare parts
Name: PLC cabinet
reducer: imported planetary gear reducer
cutter
Brand: HC
Original: China
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Title goes here.
Integrated on inner wall of pump station, pulverizes solid waste in the wastewater to protect stable operation of the submersible pump, no need manual supervision,
automatic operation, remove monitoring.
