Help CenterChannel Type Non Drum Wastewater Grinders Protect Screw Pump
Related Products
-
New Design Channel Type Single Drum Wastewater Grinders Replace Bar ScreenUS$ 13,500 - 25,000MOQ: 1 Piece -
Pipeline Wastewater GrindersUS$ 4,500 - 11,000MOQ: 1 Piece
-
Sewage GrinderUS$ 3,500 - 11,000MOQ: 1 Piece
-
Grinder Machine About Wastewater Lifting StationUS$ 3,500 - 11,000MOQ: 1 Piece
-
Wastewater Grinder for Sewage Lifting Station MachineUS$ 3,500 - 11,000MOQ: 1 Piece
Construction

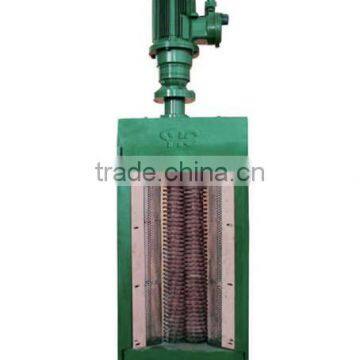

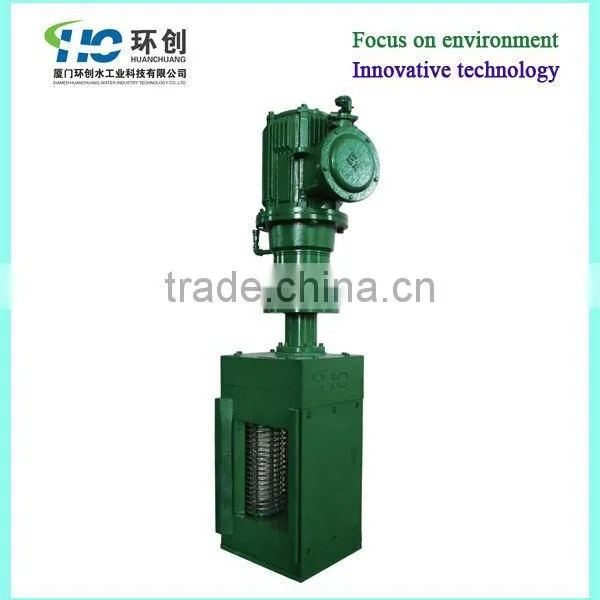

The wastewater grinders are assembled by motor, reducer, gear box, cutting chamber, mechanical seal, shell, PLC etc.
Principle
The power from the motor buffered by the reducer actuates the driving shaft. Then the driving shaft actuates the driven shaft so that two groups of cutters equipped in the driving shaft and the driven shaft rotate in opposite directions. When the captured solids enter the cutting chamber the solids are grinding and crushing into tiny particles.
Materials
l Cutters and gaskets: heat-treated alloy steel 4130 with surface harden evenly
l Shaft: heat-treated alloy steel 4140 with surface harden evenly
l Mechanicals Seals: Tungsten Carbide faces
l Side rail: Ductile cast iron ASTMA 536
l Shell and Housing: Ductile cast iron ASTMA 536
