Wastewater Fine Screen

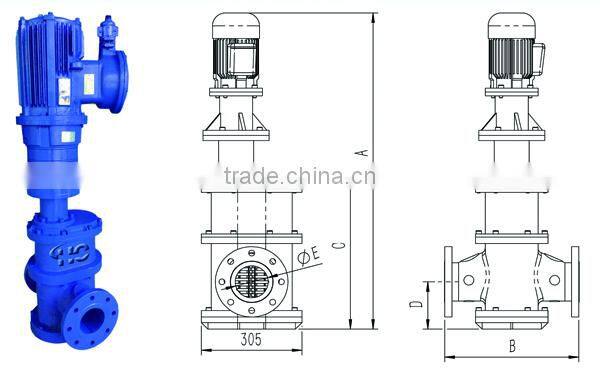

Specifications

  Operation Principle
1.Solids enter grinders through open channel.
2.Solids pass through cutters for size reduction.
3.Solids are cut into smaller particles and no threat to downstream equipment.

Materials of Construction

Mechanical Characteristic

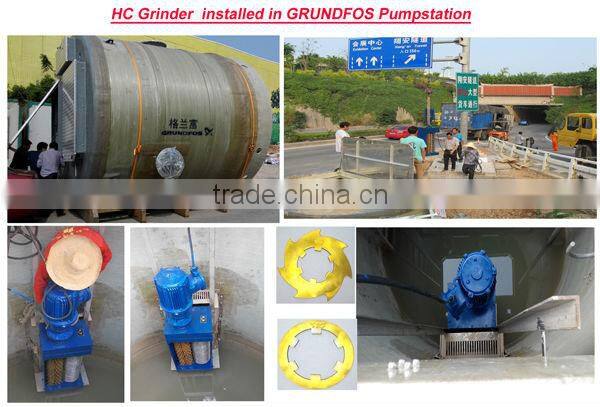

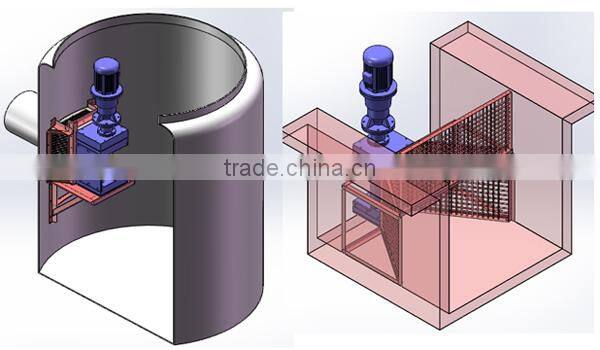

Ease and Flexibility of Installation

Mechanical Seals

• Pressure capability up to 6.3kg/cm2;
• No seal flush required and no packing gland to adjust;

High-Flow Side Rails

•  Increases flow capacity and decreases head loss
• Directs solids into the cutting chamber

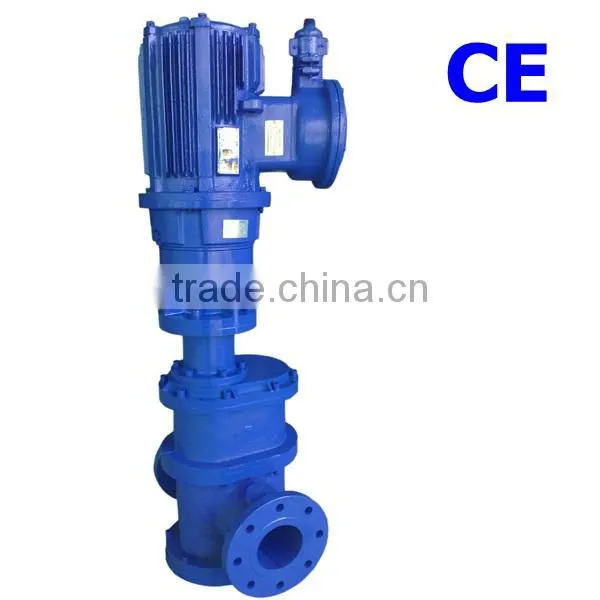

Dual Shaft Design

• Low-speed, high torque grinders handle rags, rocks, wood, clothing, plastics and other debris
• Capable of handling a wider variety of solids than single shafted machine

Cutter Options

• Customized cutters with various tooth configurations to meet special application
• Tianizing cutter and spacer optional.1.5-2 lifetimes more than general cutters.

Low Profile Bottom end housing

• More of the cutting chamber is utilized during low flow

Top Fastening Devices

•  Easy to fasten without lifting out of the channel

Control System Function

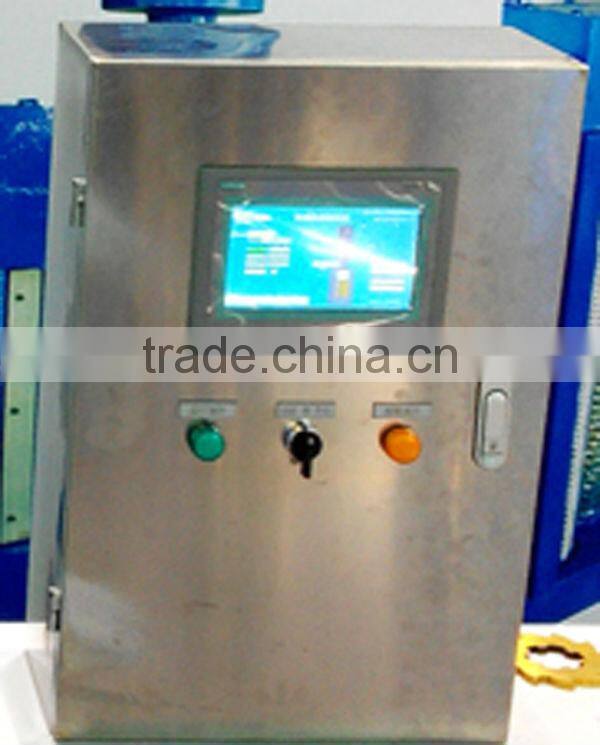

• PLC Control Cabinet with liquid crystal display, real time monitoring loading
• Simens,ABB,Schneider,etc.electric parts
• MODBUS standard field bus Communication interface and remote controllable
• Time adjustment, runtime and failure records query
• Automatic Reversal Function, time and times setting of reversal
• Leakage, Over Capacity, Overheating, Short Out and Lack of phase protection functions
• Authority setting function
