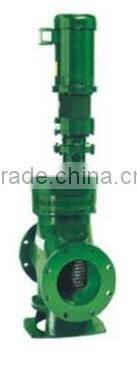

Sewage treatment grinders wastewater handling equipment
Construction :
The wastewater grinders are assembled by motor, reducer, gear box, cutting chamber, mechanical seal, shell, PLC etc.
Principle :
1. Solids enter grinders through pipeline flange connection.
2. Solids pass through cutters for size reduction.
3. Solids are cut into smaller particles and no threat to downstream equipment.
Materials :
1.Motor: Customized, multiple power options
2.Shaft: heat-treated alloy steel 4140 with surface harden evenly
3.Cutter and spacer: heat-treated alloy steel 4130 with surface harden evenly.
4.The hardness is not less than 45~50HRC
5.Housings: Ductile cast iron ASTMA 536
Features :
l Ease and Flexibility of Installation
Connection with existing pipeline flanges with no modification
l Mechanical Seals
Pressure capability up to 6.3kg/cm2
No seal flush required and no packing gland to adjust
l High flow the sidebar
Increase the water flow
To reduce head loss
Lead particles into the cutting chamber
l Dual Shaft Design
1. Capable of handling a wider variety of solid than single shafted machine
2. Low-speed,high torque
3.Two groups cutters rotating in opposite direction grind solids more efficiently
l Cutter Options
Customized cutters with various tooth configurations to meet special application
l Control System Fuction
Authority setting function
