Sewage Pump Grinder

Huanchuang(Xiamen) Technology Co., Ltd.
Sewage Pump Grinder thumbnail-1
Sewage Pump Grinder thumbnail-2
Sewage Pump Grinder thumbnail-3
Sewage Pump Grinder thumbnail-4
Sewage Pump Grinder photo-1
Sewage Pump Grinder photo-2
Sewage Pump Grinder photo-3
Sewage Pump Grinder photo-4
US$ 4,500 - 39,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HC
Model Number:
HCC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HC
Model Number HCC

Specifications

1.sewage treatment grinder,double shaft with cutters
uce the waste size in the sewage by crossing cut
3.easy to install t



Product Description

  Operation Principle
1.Solids enter grinders through open channel.
2.Solids pass through cutters for size reduction.
3.Solids are cut into smaller particles and no threat to downstream equipment.

Materials of Construction

  • Motor: Customized, multiple power options
  • Reducer: Planet gear reducer, good ability to against the load impact

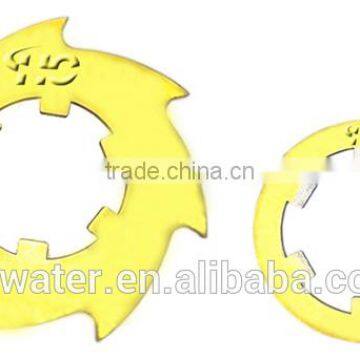

  • Cutter and spacer: heat-treated alloy steel 4130 with surface harden evenly.
  • The hardness is not less than 45~50HRC
  • Shaft: heat-treated alloy steel 4140
  • Mechanicals Seals: Tungsten Carbide faces
  • Housings: Ductile cast iron ASTMA 536
  • Frame: Stainless steel(304,316)

Mechanical Characteristic

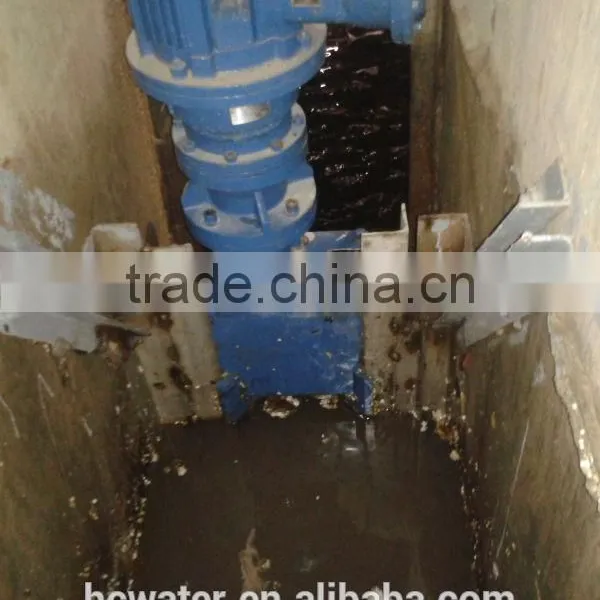

Ease and Flexibility of Installation

  • Adapts to most existing pipelines with little or no modification

Mechanical Seals

  • Pressure capability up to 6.3kg/cm2;
  • No seal flush required and no packing gland to adjust;

High-Flow Side Rails

  •  Increases flow capacity and decreases head loss
  • Directs solids into the cutting chamber

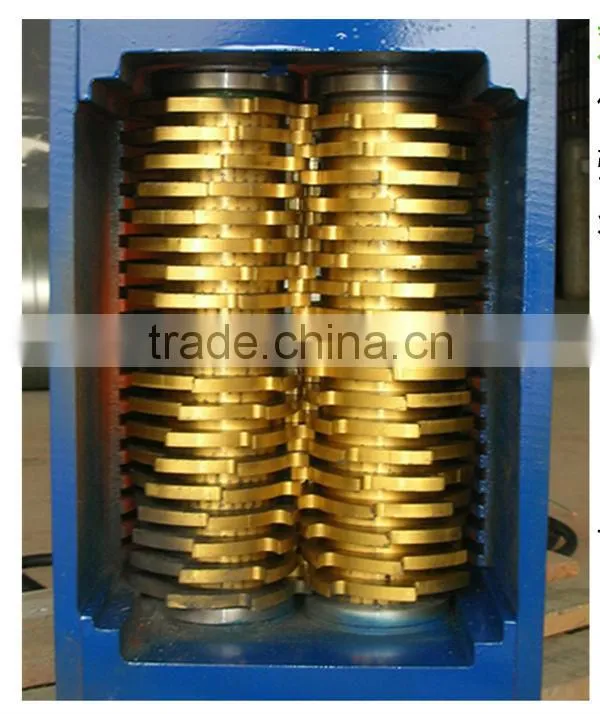

Dual Shaft Design

  • Low-speed, high torque grinders handle rags, rocks, wood, clothing, plastics and other debris
  • Capable of handling a wider variety of solids than single shafted machine

Cutter Options

  • Customized cutters with various tooth configurations to meet special application
  • Tianizing cutter and spacer optional.1.5-2 lifetimes more than general cutters.

Low Profile Bottom end housing

  • More of the cutting chamber is utilized during low flow

Top Fastening Devices

  •  Easy to fasten without lifting out of the channel

Control System Function

  • PLC Control Cabinet with liquid crystal display, real time monitoring loading
  • Simens,ABB,Schneider,etc.electric parts
  • MODBUS standard field bus Communication interface and remote controllable
  • Time adjustment, runtime and failure records query
  • Automatic Reversal Function, time and times setting of reversal
  • Leakage, Over Capacity, Overheating, Short Out and Lack of phase protection functions
  • Authority setting function

Sewage pump grinder

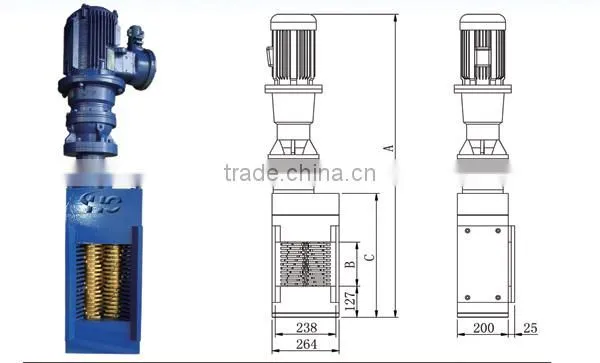

ModelFlow Rate(m3/h)Head Drop(mm)Dimensions(mm)Approximate Net Weight(kg)
ABC
HCC-N80802401250180505218
HCC-N1201203401362282607230
HCC-N1701704401504420745265
HCC-N2402405001647586914300
HCC-N34034055017207301058330
HCC-N48048060018858801208356
HCC-N670670750201710301358389
HCC-N920920900216911801508420



Sewage pump grinder

Sewage pump grinderSewage pump grinderSewage pump grinder





Packaging & Shipping

 Packed by wooden case



Our Services

 Guarantee:12months
