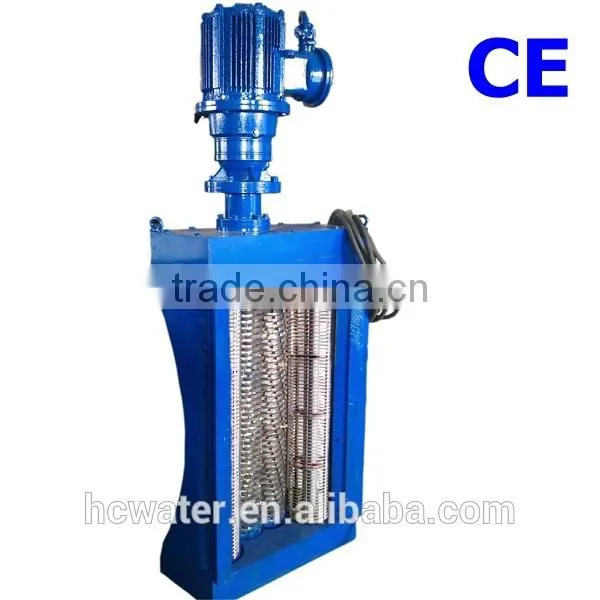

In-channel Grinder With 2 Drums

In-channel Grinder With 2 Drums thumbnail-1

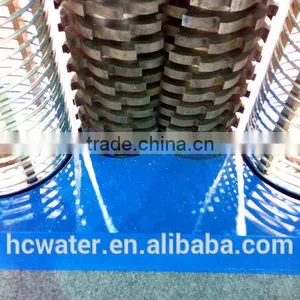

In-channel Grinder With 2 Drums thumbnail-2
In-channel Grinder With 2 Drums photo-1

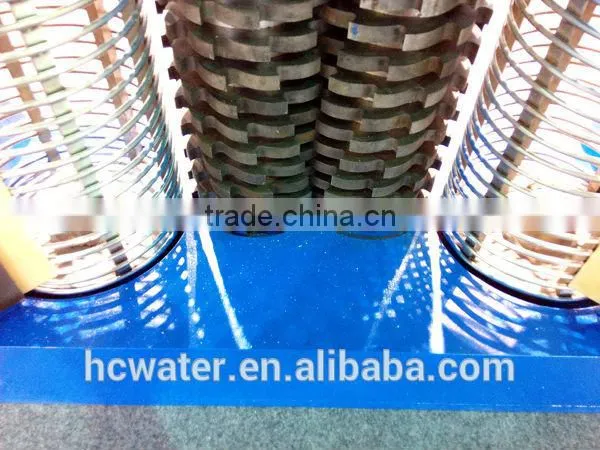

In-channel Grinder With 2 Drums photo-2
US$ 4,500 - 39,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HC
Model Number:
HCC
Contact Supplier Request Quote Chat Now
Huanchuang(Xiamen) Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HC
Model Number HCC

Specifications

1.double shaft with 2 drums
2.easy to install to the channel
3.particles size after crushed 6-12mm
4.CE,ISO9001/14001



Product Description
Product Description

  Operation Principle
1.Solids enter grinders through open channel.
2.Solids pass through cutters for size reduction.
3.Solids are cut into smaller particles and no threat to downstream equipment.

Materials of Construction

  • Motor: Customized, multiple power options
  • Reducer: Planet gear reducer, good ability to against the load impact
  • Cutter and spacer: heat-treated alloy steel 4130 with surface harden evenly.
  • The hardness is not less than 45~50HRC
  • Shaft: heat-treated alloy steel 4140
  • Mechanicals Seals: Tungsten Carbide faces
  • Housings: Ductile cast iron ASTMA 536
  • Frame: Stainless steel(304,316)

Mechanical Characteristic
Ease and Flexibility of Installation

  • Adapts to most existing pipelines with little or no modification

Mechanical Seals

  • Pressure capability up to 6.3kg/cm2;
  • No seal flush required and no packing gland to adjust;

High-Flow Side Rails

  •  Increases flow capacity and decreases head loss
  • Directs solids into the cutting chamber

Dual Shaft Design

  • Low-speed, high torque grinders handle rags, rocks, wood, clothing, plastics and other debris
  • Capable of handling a wider variety of solids than single shafted machine

Cutter Options

  • Customized cutters with various tooth configurations to meet special application
  • Tianizing cutter and spacer optional.1.5-2 lifetimes more than general cutters.

Low Profile Bottom end housing

  • More of the cutting chamber is utilized during low flow

Top Fastening Devices

  •  Easy to fasten without lifting out of the channel

Control System Function

  • PLC Control Cabinet with liquid crystal display, real time monitoring loading
  • Simens,ABB,Schneider,etc.electric parts
  • MODBUS standard field bus Communication interface and remote controllable
  • Time adjustment, runtime and failure records query
  • Automatic Reversal Function, time and times setting of reversal
  • Leakage, Over Capacity, Overheating, Short Out and Lack of phase protection functions
  • Authority setting function

In-channel grinder with 2 drums

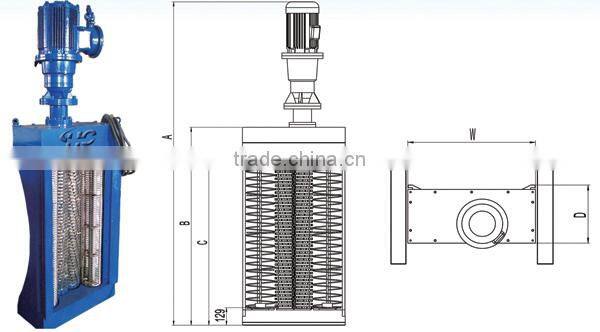

Model Flow rate(m3/h) Head Drop(mm) Dimensions(mm) Mini-width of Channel W(mm) Approximate Net Weight(kg)
A B C D
HCC-D770 770 560 1670 792 570 360 760 590
HCC-D1100 1100 620 1820 942 721 360 760 670
HCC-D1400 1400 680 1820 942 721 470 1000 730
HCC-D1600 1600 750 1970 1162 941 360 760 740
HCC-D2000 2000 800 1970 1162 941 470 1000 800
HCC-D2200 2200 860 2200 1402 1180 360 760 815
HCC-D2800 2800 920 2200 1402 1180 470 1000 1100
HCC-D2900 2900 980 2512 1712 1492 360 760 940
HCC-D3000 3000 1050 1970 1162 941 572 1300 1010
HCC-D3700 3700 1100 2910 2110 1900 360 760 1130
HCC-D3750 3750 1150 2512 1712 1492 470 1000 1500
HCC-D4000 4000 1250 2200 1402 1180 572 1300 1620
HCC-D4800 4800 1380 2910 2110 1900 470 1000 1980
HCC-D5200 5200 1500 2512 1712 1492 572 1300 2130
HCC-D6700 6700 1670 2910 2110 1900 572 1300 2700









In-channel grinder with 2 drumsIn-channel grinder with 2 drumsIn-channel grinder with 2 drums





Packaging & Shipping

 Packed by wooden case



Our Services

 Guarantee:12months
