Specifications
The grinder can capture and crush the solid waste in the pipeline.It is suitable for almost any type of waste water facility.SAME FUNCTION WITH JWCE'S MUFFIN MONSTER,CHANNEL MONSTER, CHANNEL GRINDER,INLINE GRINDER,MONO'S MUNCHER.SUIT FOR REDUCE WATE SIZE OF SLUDGE,SEWAGE,CHANNEL,WASTE WATER TREATMENT.

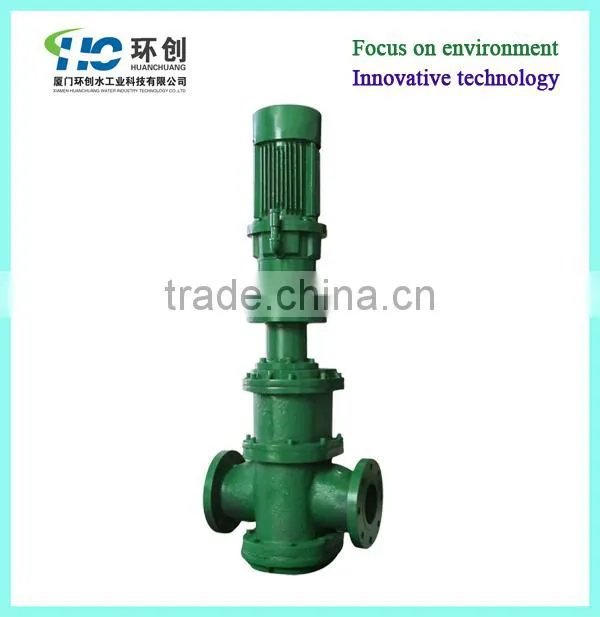

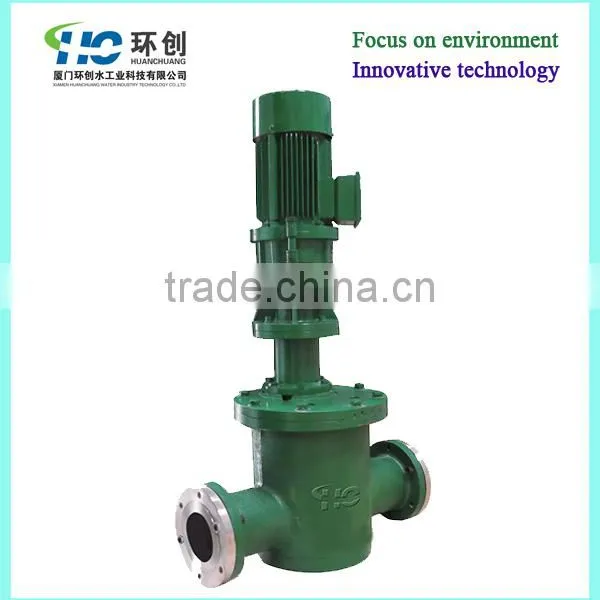

The Hydrographic pipeline grinders bolt into pipelines and reduce the size of solids in a liquid solution. This protects downstream equipment, such as pumps, valves, centrifuges and heat exchangers.
Two rows of sharp, steel cutters rotate slowly and with incredibly high-torque to turn large troublesome solids such as rags, wood, rocks, clothing and more into tiny particles that flow smoothly through pumps and pipelines. Hydrographic grinders also use extremely energy efficient 2-10 hp motors so they are more efficient to operate.
Our commitment to quality and reliability make our grinders legendary in industries such as wastewater, petroleum, agriculture, food processing and manufacturing facilities.
Operation Principle
1. Solids enter grinders through pipeline flange connection.
2. Solids pass through cutters for size reduction.
3. Solids are cut into smaller particles and no threat to downstream equipment.
Materials of Construction
Motor: Customized, multiple power options
Reducer: Planet gear reducer, good ability to against the load impact

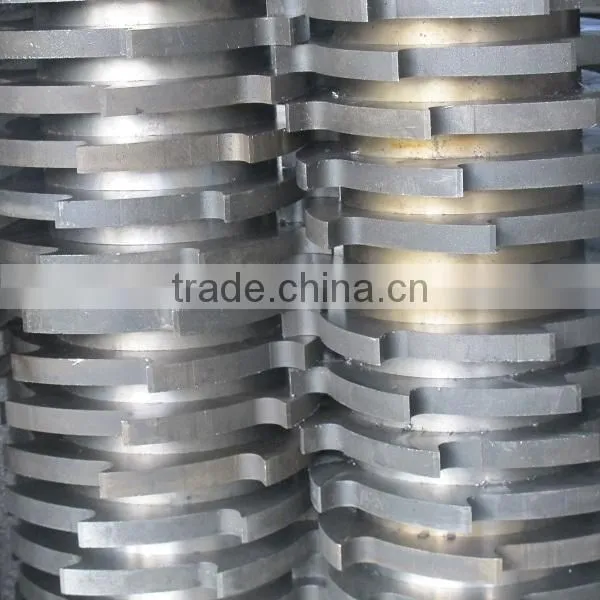

Cutter and spacer: heat-treated alloy steel 4130 with surface harden evenly.
The hardness is not less than 45~50HRC
Shaft: heat-treated alloy steel 4140
Mechanicals Seals: Tungsten Carbide faces
Housings: Ductile cast iron ASTMA 536
Mechanical Characteristic
Ease and Flexibility of Installation
Adapts to most existing pipelines with little or no modification
Mechanical Seals
Pressure capability up to 6.3kg/cm2;
No seal flush required and no packing gland to adjust;
Dual Shaft Design
Low-speed, high torque grinders handle rags, rocks, wood,clothing, plastics and other debris
Capable of handling a wider variety of solids than single shafted machine
Cutter Options
Customized cutters with various tooth configurations to meet special application
Control System Function
PLC Control Cabinet with liquid crystal display, real time monitoring loading
MODBUS standard field bus Communication interface and remote controllable
Time adjustment, runtime and failure records query
Automatic Reversal Function, time and times setting of reversal
Leakage, Over Capacity, Overheating, Short Out and Lack of phase protection functions
Authority setting function
Typical Applications
Protection of pumps to eliminate blockages
Submersible pump protection
Fine grinding of sewage and sludges
Disintegration of extracted screenings
Head of works maceration
Industrial effluent maceration
Mud contaminated drill cuttings
Food products and waste
Slaughterhouse waste
Aircraft effluent
Prison waste water maceration
Model refer to the flow below.
Model | Flow Rate (m3/hr) | Pipe Diameter (mm) | Pressure Drop (KPA) | Net Weight (kg) | Overall Dimension (mm) | ||||
A | B | C | D | E | |||||
HCP -90 | 90 | 100 | 3 | 188 | 1423 | 483 | 711 | 206 | 100 |
HCP -140 | 140 | 150 | 6 | 192 | 1423 | 534 | 711 | 232 | 150 |
HCP -185 | 185 | 200 | 11 | 197 | 1423 | 584 | 711 | 254 | 200 |
HCP -230 | 230 | 250 | 8 | 294 | 1727 | 686 | 1010 | 283 | 250 |
HCP -275 | 275 | 300 | 11 | 306 | 1727 | 787 | 1010 | 305 | 300 |

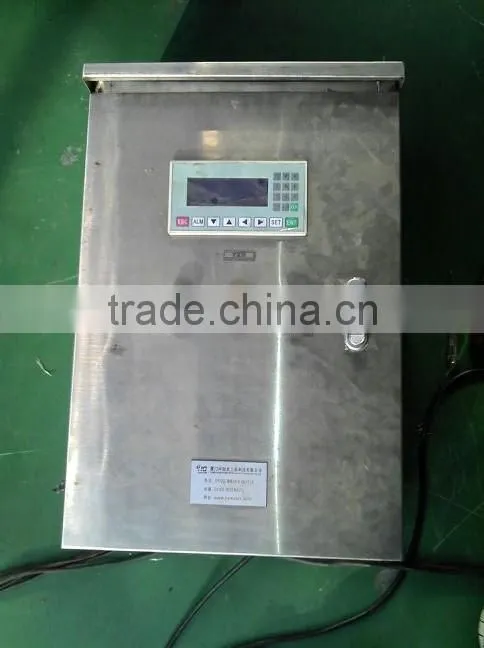

PLC control system

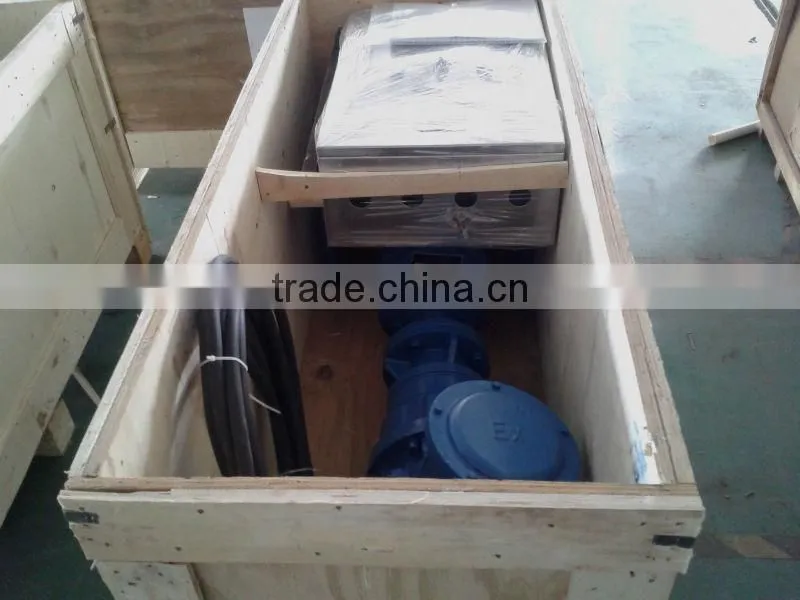

Packaging
