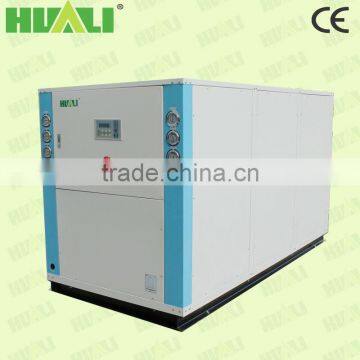

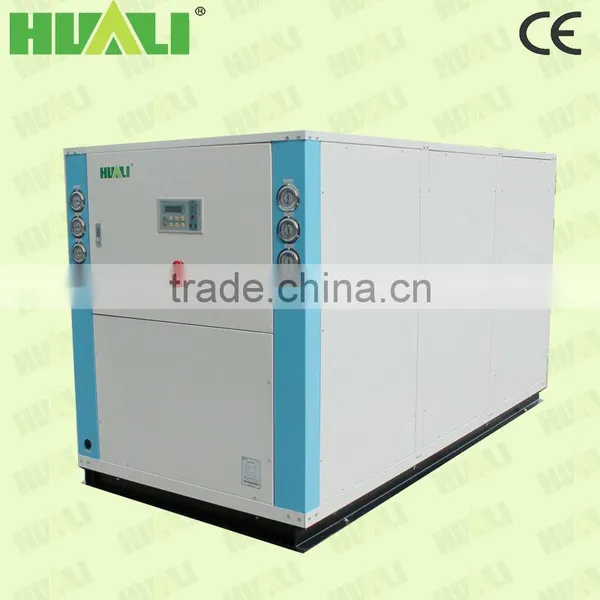

HUALI Refrigeration Trainer Aquarium China Water Chiller Aquarium

1. The Chiller cooling capacity ranged from 10.2Kw to 156 Kw.

2. Adopt good quality HANBELL compressor,high efficiency, low noise, less wearing and long life

3. Both Evaporator and Condenser are made of grooved copper tubes.

4. Danfoss/ Alco expansion valve, LG reply. other brand like PUNP, Schneider.

5. Water chillers have high COP,average COP keep 4.1-5.6, and highest can reach 8.0

6. Stable quality, long using life. the chiller can operation more then 5 years without main

components problem, like compressor, heat exchanger.

7. Strong unit basefram ensured the equipment stable operation

8. Adopt leading brand PLC, 64K color touch screen etc. user friendly and easy operation.

9. Multi-capacity regulation, energy saving, cost cut down greatly foroperation and maintenance.

Note:

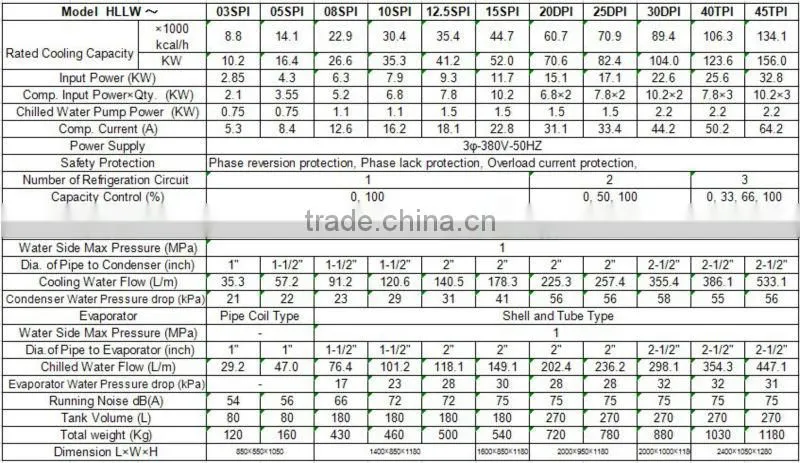

1. Rated Cooling Capacity Based on:
    Chilled water inlet/outlet temp. 17°C/12°C,
    Cooling water inlet/outlet temp. 30°C/35°C,
    Fouling factor: 0.088m.°C/KW
2. Chilled Water Range: 5~20°C;
3. Cooling Water Range: 20~40°C;
4.Changes of Specification for lmprovement May Be made without Notice.

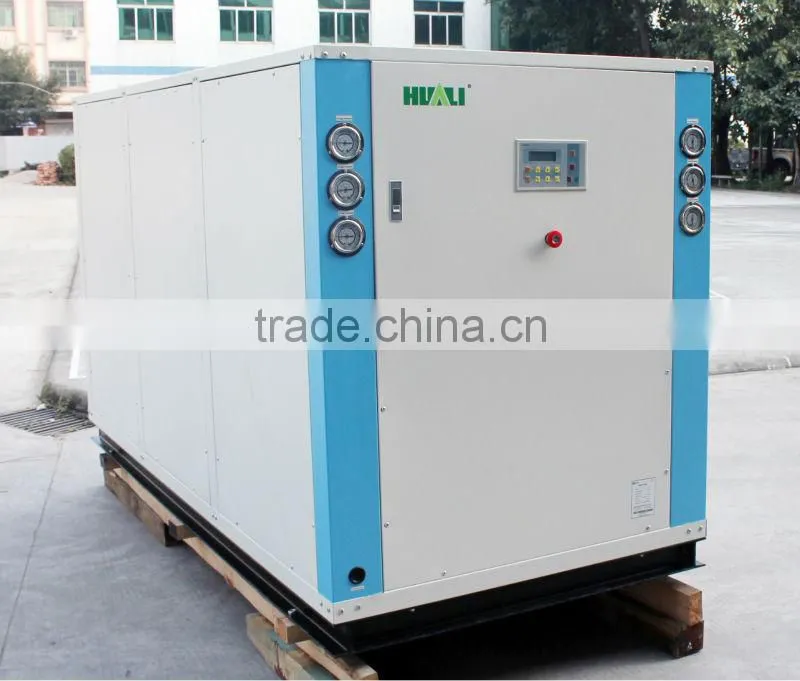

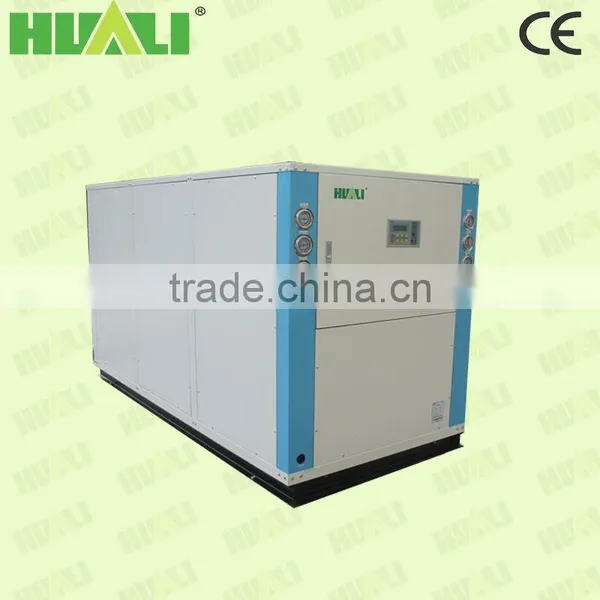

HUALI water cooled chiller is one of our leading products. This series is widely used in hotel, theatre,

office building and supermarket. Also are used in refrigerating fields, such as food industries, plastic factory,

pharmaceutical factories, and apparatus industries.

1)Plastics industry

2)Electronic industry

3)Electroplating industry

4)Mechanical industry

5)Building industry

6)Vacuum coating

7)Food industry

8)Chemical fiber industry

9)etc..

  1)Phase reversion protection,

 2)Phase lack protection,

 3)Overload current protection,

 4)Discharge air temp. protection,

 5)Low & High pressure protection,

 6)Low temp. protection,

 7)Water flow protection.

Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2  with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
