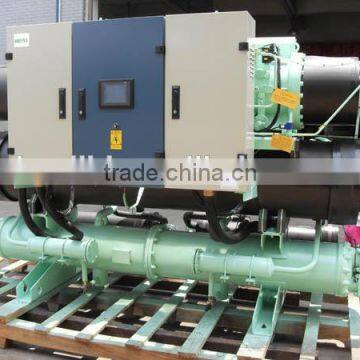

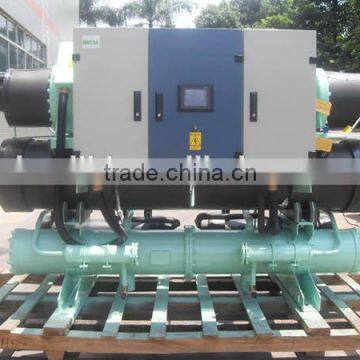

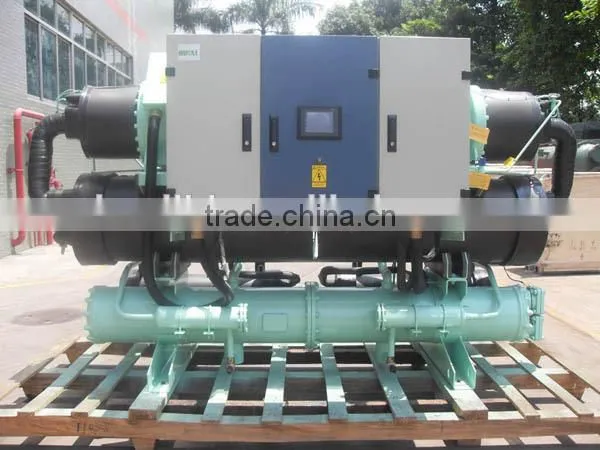

High Quality Refrigerant R22/r134a Industrial Air Conditioners Water Chiller for Carbonated Beverages

 1. The chiller adopt high-quality compressor and Taiwan pump, so it is

    very safe and noiseless, economical in power and durable

2. Temperature control range 5°C to 35°C,more or less ±1°C

3. The designs of chiller and radiator are unique, so the heat exchange efficiency is very high

4. The chiller is designed to be with current over-load protector, high voltage and low

   voltage construction and electric time-delay safeguard,  when malfunction happened,

    it could alarm and show the cause of the problem in time

5. This series chiller can customize base on the requirement of acid resistant & acidity-resistant (optional).

6.Standard model: Equiped with water pump and wate tank.

7.Refrigerant is R407C,R22,but R410A,R134A also available.

8.Power and frequency supply:380V,3PH,50HZ.   Can customerized 400V,3PH,50HZ/

  380V,3PH,50HZ/ 400V,3PH,60HZ.

9. Rated cooling capacity base: ambient temp. 35°C;

    inlet/outlet temp. 12°C/7°C, fouling factor:0.088m2 · °C/KW.

10. Chilled water range: 5°C to 20°C;    Cooling water range: 20°C to 40°C;

HUALI water cooled chiller is one of our leading products. This series is widely used in hotel, theatre,

office building and supermarket. Also are used in refrigerating fields, such as food industries, plastic factory,

pharmaceutical factories, and apparatus industries.

1)Plastics industry

2)Electronic industry

3)Electroplating industry

4)Mechanical industry

5)Building industry

6)Vacuum coating

7)Food industry

8)Chemical fiber industry

9)etc..

  1)Phase reversion protection,

 2)Phase lack protection,

 3)Overload current protection,

 4)Discharge air temp. protection,

 5)Low & High pressure protection,

 6)Low temp. protection,

 7)Water flow protection.

Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2  with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
