Good Price for Industrial Water Chillers

1. this type of chillers are made of superior compressor, so it is exllcellent in quality, noiseless, economical and durable.

2. the evaportors are shell and tube types, which are of excellent performace.

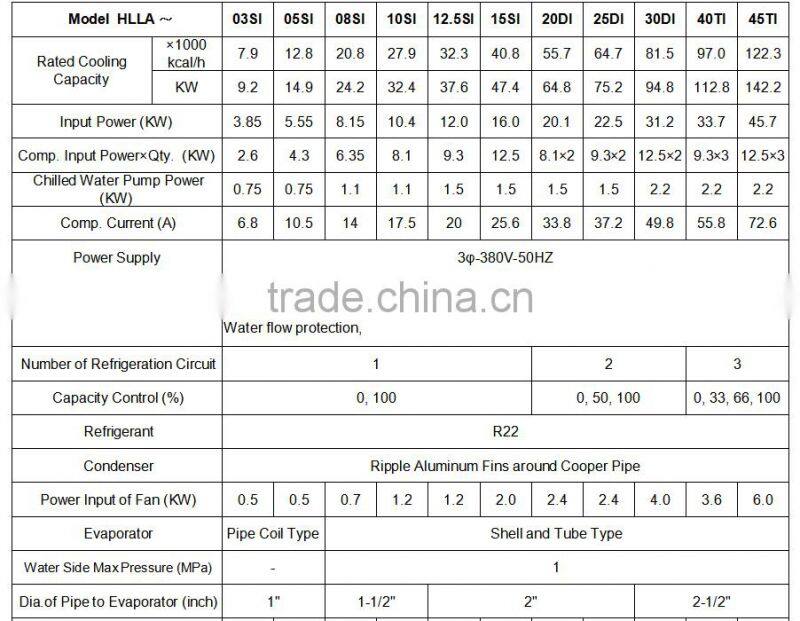

3. the cooling capacity covers a range of 9.2-142.2KW

4. it is compact-sized, with sufficent cooling capacity, and easy to clean.

5. water cooled Water chiller can be used in various feilds,such as chemical industry, medical industry, industrial processing, food processing industry,etc.

6. All-round safety protection: phase reversion protection, phase lack protection, overload current protection, discharge sir temp. protection, low&high pressure protection , low temp. protection, water flow protection

7. Refrigerant is R407C,R22,but R410A,R134A also available

8. Rated cooling capacity base: chilled water inlet/outlet temp.17 °C /12°C

cooling water    inlet/outlet temp. 30°C/35°C, fouling factor:0.088m2 · °C/KW.

9. Chilled water range: 5°C to 20°C;    Cooling water range: 20°C to 40°C;

1. Power source phase deficient protection;
2. Circuit breaker;
3. Compressor  over load protecting and indicating lamp;
4. Pump reversal protecting and indicating lamp;
5. Pump over load protecting and indicating lamp;
6. Cooling water bad heat loose protecting and indicating lamp;
7. Ice water freeze protecting and indicating lamp;
8. Coolant lose protecting and indicating lamp;
9. Safety valve abnormal by coolant high presure;
10. Ice water by-pass circuit leakage;
11. The temperature deviation alarm and the indication;
12. Ice water outlet pressure gauge;
13. Coolant high pressure gauge;
14. Coolant low pressure gauge;
15. Break down alarm buzzer;

Injection Industry

Golden chiller can accurately control the temperature of mold which can improve the quality and production rate.

Electronic Component Industry

Golden chiller can stabilize the molecular structure of electronic component inside. This can improve the FTQ and product time.

Machinery Industry

Golden chiller can cool down the oil for the machine and stabilize the oil temperature and pressure. It’ll extend the useful life of oil. And it can also improve mechanical lubrication efficiency.

Electroplating Industry

The temperature of electroplate can be controlled by our chiller. It can improve the density and smooth of electroplate and production efficiency.

Food & Drink Processing Industry

The temperature of processed food and drink will be too high to be packaged. Golden chiller can cool it down through food grade stainless steel heat exchanger.

Air conditioner system

Widely used in building air conditioning system, small and medium-sized office, workshop, restaurants, villas and other air conditioning environment

Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2  with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
