Specifications
1. reliable working performance2. high efficiency
3. competitive price
1. Tension leveling line technicial parameter
Aluminum alloy | 1000,3000,8000 series |
Dia. of stretch roll | 550~1300 mm |
Stretching and bending material Aluminum and alloy | Aluminum or aluminum alloy |
Rolling speed | 80~400 m/min |
Entry thickness | 0.08~4.0 mm |
Cleaning forms Water cleaning | Neutral agent, agent, oil |
Entry width | 600~2150 mm |
Max. Extension ratio | 3% |
Max. Weight of coil | Max 30000 kg |
2. Tension leveling line introduction
Tension leveler: Tension leveler main line of work is finished by cold rolling mill rolled sheet by uncoiling, entrance S roller leveler, export S roll winder, ultimately producing elongation meet the requirements of the finished roll. The main equipment decoiler, entrance S roller, precision straightening machine, export S rolls, coiling machines, and can get a good plate shape. Following the adoption of tension leveling, can completely eliminate the layout edge waves, wave-shaped, buckling and mild camber, which greatly improves the flatness of the sheet.
3. Brief advantages
1.Great quality
2.ISO9001:2008
3.Best after-sales service
4.Fully automatic operation

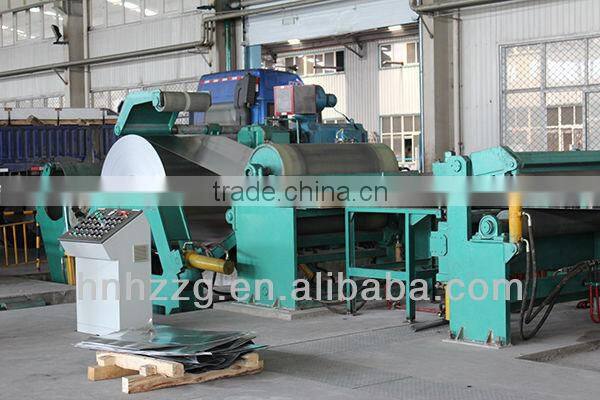

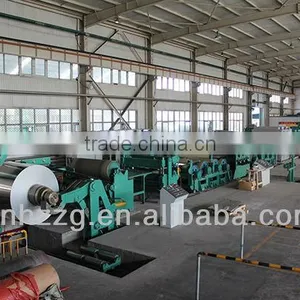

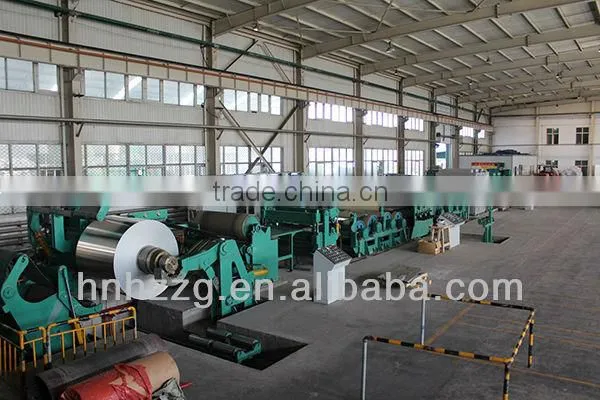

4. Tension leveling line pictures show
If you are interested in our tension leveling line machine, you can contact us or leave us email to get more information.
