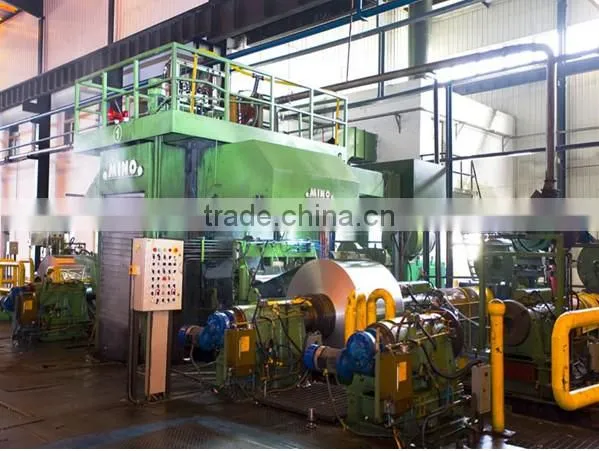

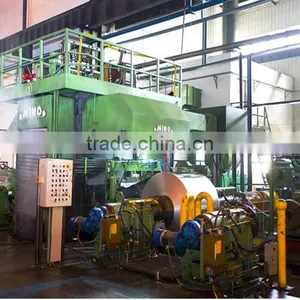

Aluminum Foil Rolling Mill Machine Production Line
Aluminum Foil Rolling Mill is used to produce aluminum foil, it is the further process after cold rolling. And it has been widely used. The thickness of strip range from 0.6mm down to 2*0.006mm. Our foil rolling technology has reached the world-class level.
1. Production flow:
Decoiling, rolling, coiling, unloading and others.
2. Latest technology with PLC automatic control system.
3. The simple and quick roll changing device reduces the time of roll changing.
4. Rolling speed up to 2000m/min.
5. Advanced pre-coated plate filtration system.
6. The minimum strip thickness of foil roughing mill is 0.012mm
The minimum strip thickness of foil finishing mill is 2*0.006mm
7. Easy to operate and to maintain
8. High Safety standard and clean environment
9. Customized design.
Our service scope:
1. Complete design of installations
2. Complete manufacturing of equipment.
3. Technological training
4. Perfect after-sale service
Aluminum alloy | 1000,3000,8000 series |
Entry thickness | 0.6 max mm |
Dia. of working roll | 200~320 mm |
Width of work roller | 800~2300mm |
Dia. of back up roll | Φ550~850 mm |
Width of back-up roller | 750~2250 mm |
Weight of coil | 30000 max kg |
Foil rough-rolling thickness | 0.05~0.2 mm |
Thickness of foil medium-rolling | 0.1 mm |
Thickness of foil rolling (double sheet) | mm |
Rolling speed | 2000 max m/min |
Exit of Al foil width | 700~2080 mm |
Rolling form | Non-reversing |
Electric control system | SIEMENS OMRON |
2,Our aluminum foil rolling mill have following advantages:
A. Aluminum foil rolling mill has an advanced hydraulic pressure on the thickness of the automatic control system (AGC).
B. Piecewise controlled cooling system .
C. Advanced pre-coated plate filtration system.
D. Automatic and manual controlled CO2 fire extinguishing system.
E. Full digital control and network communication, aim to provide control accuracy and reliability.
F. Advanced engineering workstations.
G. The roller bearing of aluminum foil rolling mill use a four-row cylindrical roller bearings and oil mist lubrication.
H. 12 inch color LCD operator terminals, easy to operate and display.
We are specialized in the design, manufacture & install of aluminum foil rolling mill, we supply kinds of auxiliary equipment and aluminum foil rolling mill accessories. We have a strong technical force, advanced production capacity and high quality after-sale service team. We can provide you product with comfortable price, great after-sale service.
