Specifications
gold separating machine1.Easy adjustment
2. Reliable operation and easy maintenance
3. Less power consumption
4.ISO,BV
Gold separating machine with realible supplier
6-S shaking table is a mine separation device for fine minerals working by gravity.
It is widely applied on separating Gold, Tungsten, Tin, manganese, Iron, Titanium, Zircon,
Tantalum, Barium, Chrome, Lead, Zinc, Mercury, Copper, Aluminum ,and rare metals and the noble metal ore,
also applied on sorting coal etc.
Compare with traditional tool , this shaking table has below advantages:
1. fiber glass material
2. high recovery
3. extend the life of using.
Construction and mechanical features of shaking table
Head Motion are furnished with a totally enclosed selfoiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication.This feature protects the moving parts, reducing operating
and maintenance costs to a minimum.

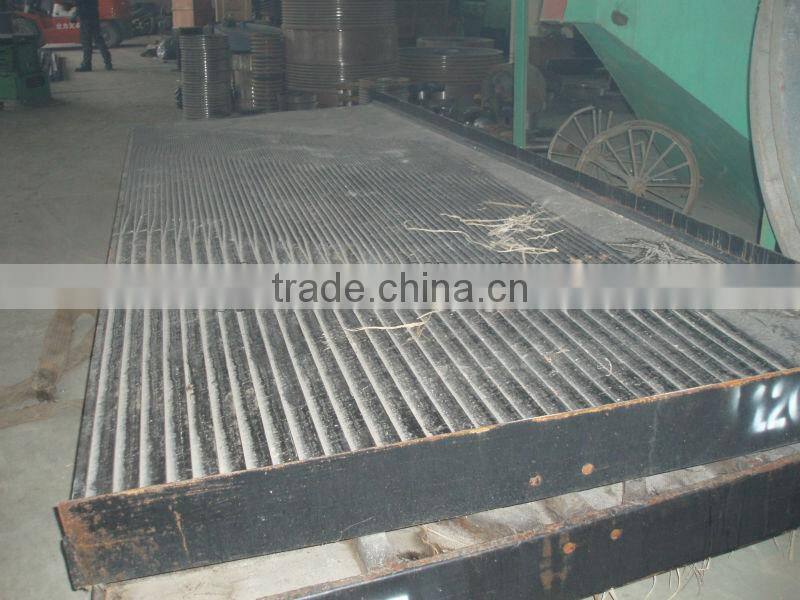

Decks of shaking table
The decks are constructed of steel framework and covered 16mm fibreglass with corundum, this cover its strength
reaches as high as 70% of steel, the features of this design are stronger, wear-resistant,
corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform
perfectly on different mineral and different weather condition.
Feed and Water Box of shaking table
A wooden feed distributing box with hopper and a long water box are attached to the iron
of the deck, giving a very even distribution of feed and water.
Technical Specification of shaking table
The Tables have three distinct deck designs available. The course ore deck is designed
for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of
0.074mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm.

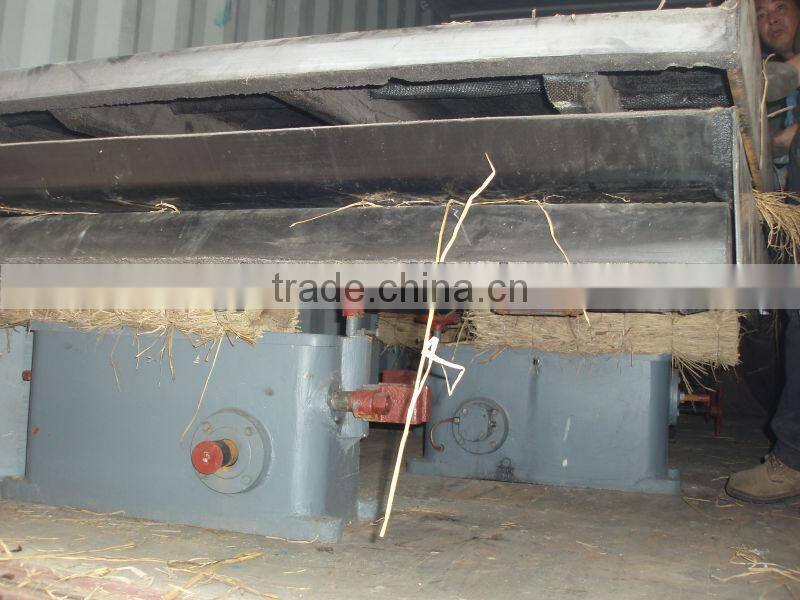

Head Motion of shaking table
shaking tables are furnished with a totally enclosed selfoiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum.
Technical specification of shaking table
Item |
LS(6-S) |
|
Bed structure
|
Polyester glass steel,embedded Skeletons composite structure |
Bed specifications |
150-1850×4500mm |
Sorting area |
7.5m2 |
Bed direction |
The left- right -- |
Landscape angle(°) |
0-5 |
Stroke |
10-30mm |
Times(time/min) |
240-360 |
|
Size of material selected
|
Coarse sand2-0.5mm Fine sand 0.5-0.074mm Pulp 0.074mm |
Motor power |
1.1kw |

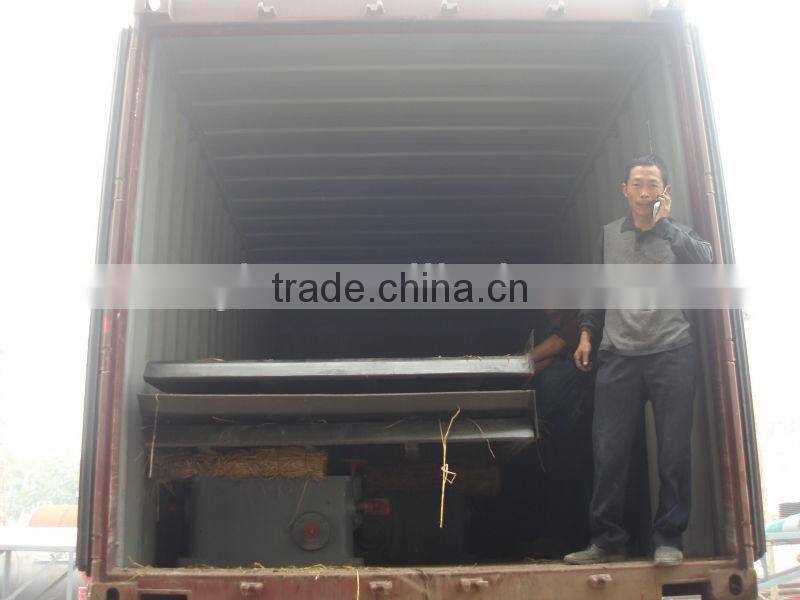

Pictures of shaking table
