Specifications
steel frame angle corrugated-sidewall belt conveyor-conveying speed,0.8m/s
-belt width,500mm
-conveying capacity,78t/h

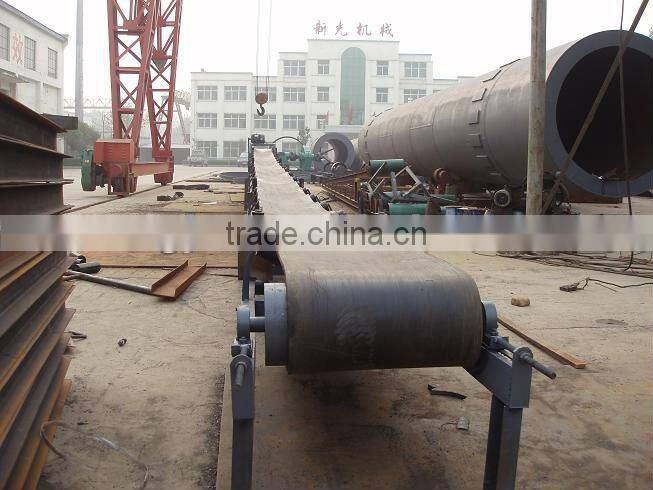

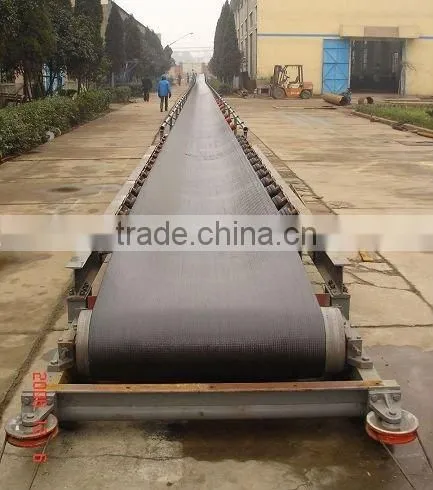

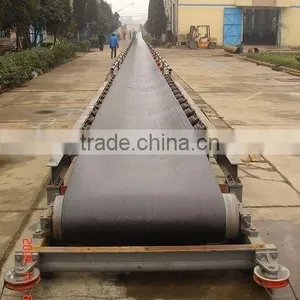

Belt Conveyor consists of two pulleys and a continuous loop rubber belt that rotates around them. It is used in conveying a variety of materials, including food and beverage processing, manufacturing, mining, packaging, and power transmission. Some other belt conveyor are designed to transport commercial goods, construction materials, forest products, or pulp and paper.
1. Devided by Driving Method:
a. STDMechanical Drive It’s driven by cycloidal pinwheel reducer (with outdoor motor ) and chain-drive mechanism.
b. STDJ Mechanical Drive Series .It adopts upside-down reducer and belt-drive mechanize.
c. STD-Electric Rotor Drive SeriesIt's driven by electric rotor.
2. Divided by Installation Methods
a. Fixed Series it’s directly installed on foundation.
b. SDY-Portable Series It can be easily and freely moved and the capacity can be adjusted.
3. Divided by Structures:
The belt conveyors produced by SJLC have three different structures.
a. U-steel b. Framec. Truss
nical parameter
Model |
Rubber Width |

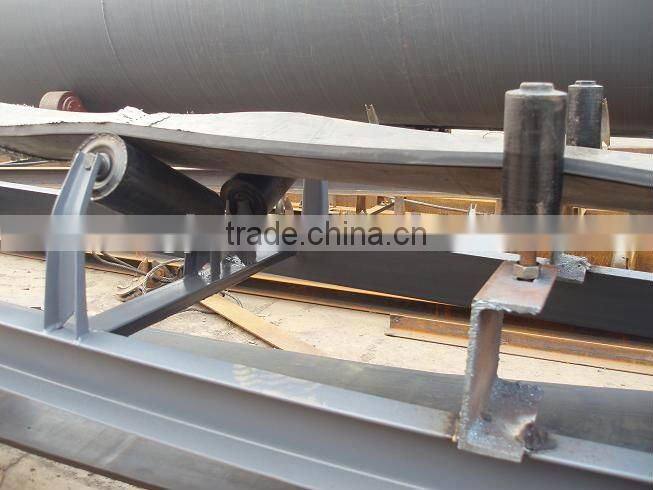

Support axis outline : Trough |
||||||
Belt speed m/s |
0.8 |
1 |
1.25 |
1.6 |
2 |
2.5 |
||
LD75 |
500mm |
Capacity (t/h) |
78 |
97 |
122 |
156 |
191 |
232 |
LD75 |
650mm |
131 |
164 |
206 |
264 |
323 |
391 |
|
LD75 |
800mm |
278 |
348 |
446 |
546 |
691 |
||
show

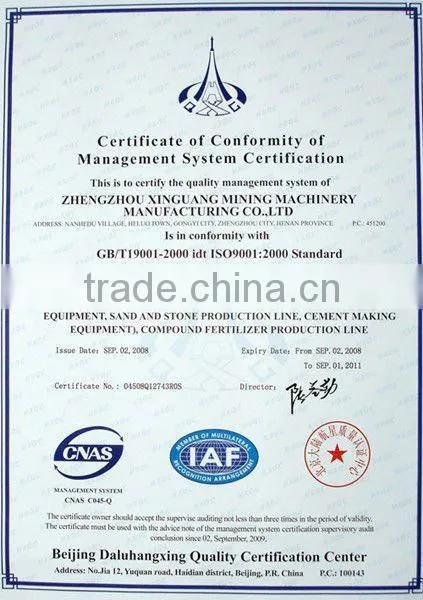

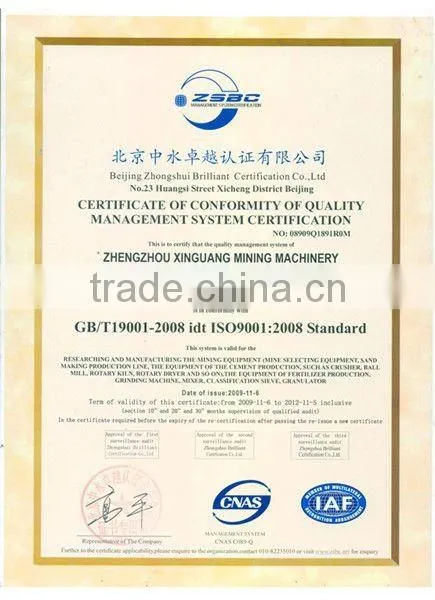

ISO certificate
