Specifications
Lead,zinc,chromite fluorite gold copperore process plant
-benefication process floation machine
-ISO manufacturer price

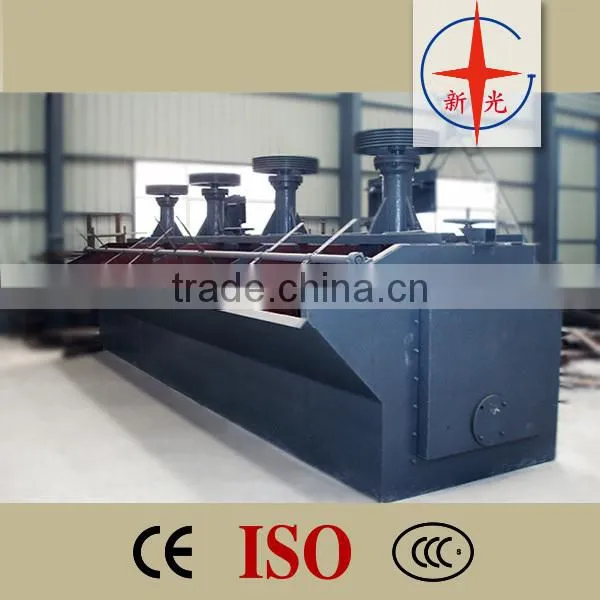

The Floatation Machine has the advantages of large air-absorption capacity and low energy consumption. Every cell owns three functions: air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse and to the largest extent. There is self-control device on the surface of mineral slurry, so it is easy to adjust it. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.
Flotation machine belongs to flotation separating process machinerys.
Flotation machine used to separate copper, lead, zinc, aluminium, nickel, gold, silver and other ferrous metals, black metals and other non ferrous metals.
Flotation machine is a kind of crude and fine metal selecting equipment.
Our flotation machine is multi-slot flotation machine.
Technical parameter
Specification |
XJK- 0.35 (3A) |
XJK- 0.62 (4A) |
XJK- 1.1(5A) |
XJK- 2.8(6A) |
XJK- 5.8(7A) |
SF1.2 |
SF2.8 |
SF4.0 |
SF8.0 |
|||
Actual Volume (m3) |
0.35 |
0.62 |
1.1 |
2.8 |
5.8 |
1.2 |
2.8 |
4 |
8 |
|||
Capacity(t/h) |
0.18-0.4 |
0.3-0.9 |
0.6-1.6 |
1.5-3.5 |
5-7 |
0.7-1.8 |
1.6-3.8 |
2-4 |
4-8 |
|||
Speed(r/min) |
470 |
400 |
330 |
280 |
240 |
325 |
270 |
220 |
191 |
|||
|
Impeller Diameter (mm) |
300 |
350 |
500 |
600 |
750 |
500 |
600 |
650 |
760 |
|||
Auxiliary motor |
Model |
Rotor |
Y90l-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y200L2-6 |
Y132M-6 |
Y160L-6 |
Y200L-8 |
Y250M-8 |
|
Scraper |
Y802 |
Y90S |
Y90L-6 |
Y90L-6 |
Y90L-6 |
Y90L-6 |
Y90L-6 |
Y100L-6 |
Y100L-6 |
|||
|
Power (kw) |
1.5 |
3 |
5.5/1.1 |
11/1.1 |
22/1.5 |
5.5/1.1 |
11/1.1 |
15/1.5 |
30/1.5 |
|||
|
Weight (t/trough) |
|
|
0.43 |
0.86 |
1.38 |
2.33 |
1.38 |
1.44 |
2.40 |
2.66 |
4.129 |
|

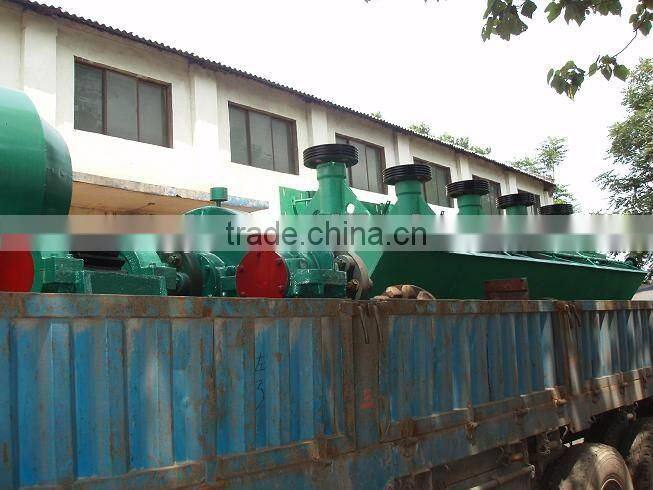

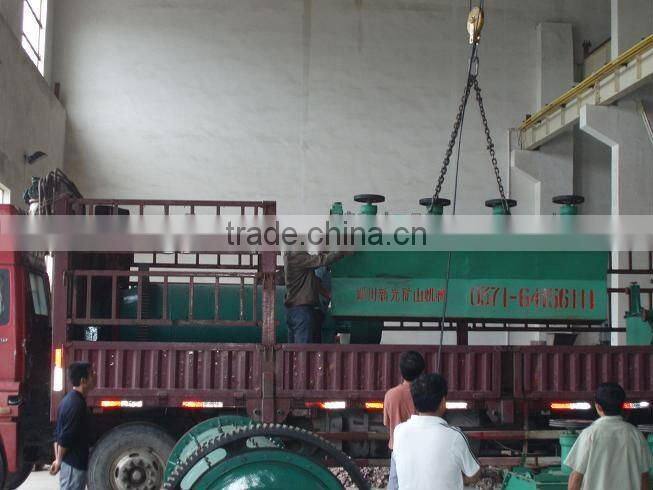

Shipment of floation machine
ISO Certificate
