Specifications
-manufacturer,factory price-ISO9001:2000,ISO9001:2008
-LD75 series belt conveyor
-large capacity belt conveyor
Belt Conveyor consists of two end-pulleys and a continuous loop of material that rotates about them. They are used in a variety of material handing applications, including food and beverage processing, manufacturing, mining, packaging, and power transmission. Some conveyor belts are designed to transport commercial goods, construction materials, forest products, or pulp and paper.
1. Devided by Driving Method:
a. STDMechanical Drive It’s driven by cycloidal pinwheel reducer (with outdoor motor ) and chain-drive mechanism.
b. STDJ Mechanical Drive Series .It adopts upside-down reducer and belt-drive mechanize.
c. STD-Electric Rotor Drive SeriesIt's driven by electric rotor.
2. Divided by Installation Methods
a. Fixed Series it’s directly installed on foundation.
b. SDY-Portable Series It can be easily and freely moved and the capacity can be adjusted.
3. Divided by Structures:
The belt conveyors produced by SJLC have three different structures.
a. U-steel b. Framec. Truss
nical parameter
Model |
Rubber Width |
Support axis outline : Trough |
||||||
Belt speed m/s |
0.8 |
1 |
1.25 |
1.6 |
2 |
2.5 |
||
LD75 |
500mm |
Capacity (t/h) |
78 |
97 |
122 |
156 |
191 |
232 |
LD75 |
650mm |
131 |
164 |
206 |
264 |
323 |
391 |
|
LD75 |
800mm |
278 |
348 |
446 |
546 |
691 |
||

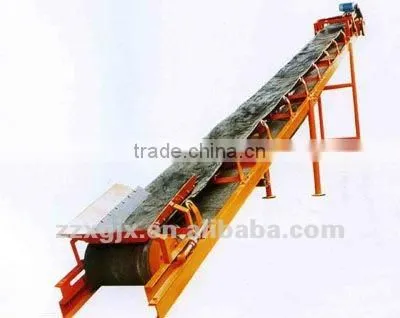

belt conveyor show
