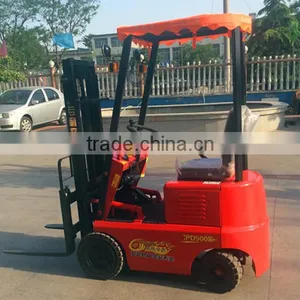

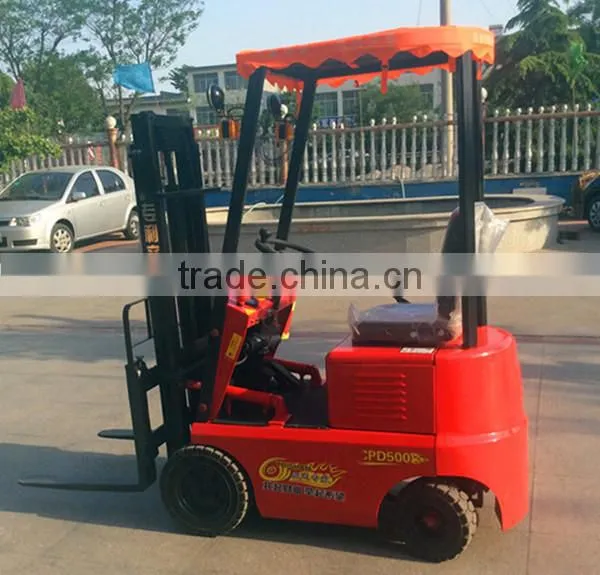

0.5 Ton TCM Electric Fork lift
- 500 Set / Sets per Month
- qingdao
- T/T
You May Like
-
0.5 Ton Battery / Electric Forklift
-
China Brand New Mini Electric Forklift, Small Forklift (500kg+2000mm)
-
Mini 1.0 Ton Electric Forklift With Good Qualtiy And Best Price Four-Way Electric Forklift
-
china 0.5ton Electric Forklift, Forklift Truck, Fork Lift
-
cheap forklift truck 3.5 ton
-
Manual mini forklifts 1.5T
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Model Number | MP50 | Type | Powered Pallet Truck | |
| Power Souce | AC Motor | Rated Loading Capacity | 500kg | |
| Max. Lifting Height | 2000mm | Min. Lifting Height | 100mm | |
| Fork Length | 630mm | Fork Width | 90mm | |
| Overall Dimensions | 1350*760*1780mm | Certification | ce | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.500kg rated load2.2kw lifting motor power
3.220V input voltage
4.8/10h charge time
5.high qualtiy with factory price
1.Main technical parameters:
Model | CPD500 | CPD1000 |
Power type | Electric | Electric |
Operating mode | Seated type | Seated type |
Rated load | 500kg | 1000kg |
Max. lifting height | 2000mm | 3000mm |
Min. turning radius | 1200mm | 1650mm |
Door frame tilt angle | 8/8 degree | 6/12 degree |
Lift speed | 480/460mm/s | 480/460mm/s |
Down speed | 400mm/s | 400mm/s |
Driving speed | 12km/h | 15km/h |
Load center distance | 300mm | 400mm |
Turned way | Electric power(Mechanical) | Electric power |
Machine weight | 725kg | 1250kg |
Lifting motor power | 2kw | 2kw |
Drive motor power | 1.5kw | 2kw |
Motor brake | Front wheel foot brake | Front wheel foot brake |
Min ground clearance | 80mm | 100mm |
Overall dimension | 1350*760*1780mm | 1780*960*2150mm |
Fork length | 630mm | 630mm |
Fork width | 90mm | 90mm |
Max.extend width | 700mm | 700mm |
Wheel base | 890mm | 1080mm |
wheel tread | 620/580 | 780/730 |
Front tyre size | 15*4½-8 | 16*6-8 |
Rear tyre size | 3.50-5 | 15*4½-8 |
Battery | 12v/170ah * 4 | 12v/70ah * 5 |
Working time for one charge | Less than 8h | Less than 8h |
Input voltage | 220v | 220v |
Charging time | 8/10h | 8/10h |
2.Electic forklift application:
Widely used in Railway stations, ports, airports, factories, warehouses,containers and so on .
3.Friend tips:
we are a professional manufacturer for making electric forklift and have enjoyed a good reputation for many years. We have confidence of making high class products for you , so any requirements ,please contact us freely ,we can reply you promptly!
