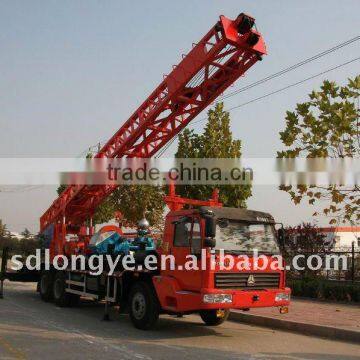

300mTruck-mounted Water Well Drilling Equipment

Technical parameters

Drilling depth(m)

80

300

Drilling diameter(mm)

1500

500

Rotary speed(r/min)

21.2;36;63.2;100.6;155;20.2(reverse)

Rotary torque(KN)

18;10.6;6;3.8;2.5;18.9(reverse)

Single rope lifting capacity of windlass(KN)

30

The mix lifting capacity of windlass(KN)

180

Single rope lifting capacity of hydraulic hoisting vice(KN)

40

The mix lifting capacity of hydraulic hoisting vice(KN)

160

 The lifting capacity of hook(KN)

180

Bearing capacity of mast (KN)

180

The height of mast (mm)

11500

 Bearing capacity (t)

25

Pipe

Kelly(mm)

108*108*7500

Assistant pipe (mm)

Diameter 89*10*5500

BW850/2A

Mud pump

Diameter of cylinder (mm)

150

Stroke of piston (mm)

180

Theory of flow (L / min)

600    850

Rated pressure (Mpa)

3     2

Pounding  times (min^-1)

58    82

Diameter of suction tube (mm)

127

Diameter of drain pipe (mm)

64

Input speed (r / min)

470

Input power (kw)

40

Overall dimensions (mm)

2000*1030*1400

Weight (t)

1.5

Supporting power

Engine

Model

CA6DE3-20E3

Rated power(KW)

147

Speed (r/min)

2300

The maximum torque

650.m/1400-1500rpm

Truck chassis

      Model

 Drive form

6*4

Engine

 Model

CA6DE3-20E3(Europe three emission standard)

Rated power(KW)

147

 Speed (r/min)

2300

11110*2490*2500

Electri

generator

Model

MF

Rated power (kw)

15

Rated voltage(v)

400

Rated current(A)

27

power factor

0.8

Speed (r/min)

1500

Frequency(Hz)

50

Insulation Class

H

Protection level

IP21

 The best working gear (or speed)

5^th gear (1000-1400r/min)

 The highest speed(Km/h)

75

 Weight (kg)

19600

 Transport size(L*W*H)(mm)

12160*2490*3440

 Working size(L*W*H)(mm)

11110*2490*13110
