Small Portable Water Well Drilling Rig(CTQ-L100Y)
- Qingdao Port
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Other | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | longye | Model Number | CTQ-L100Y | |
| Usage | Water Well | Voltage | 220v | |
| Power(W) | 16.2kw | Dimension(L*W*H) | 3200*1400*1500mm | |
| Weight | 800kg | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Overseas service center available |
Product Description

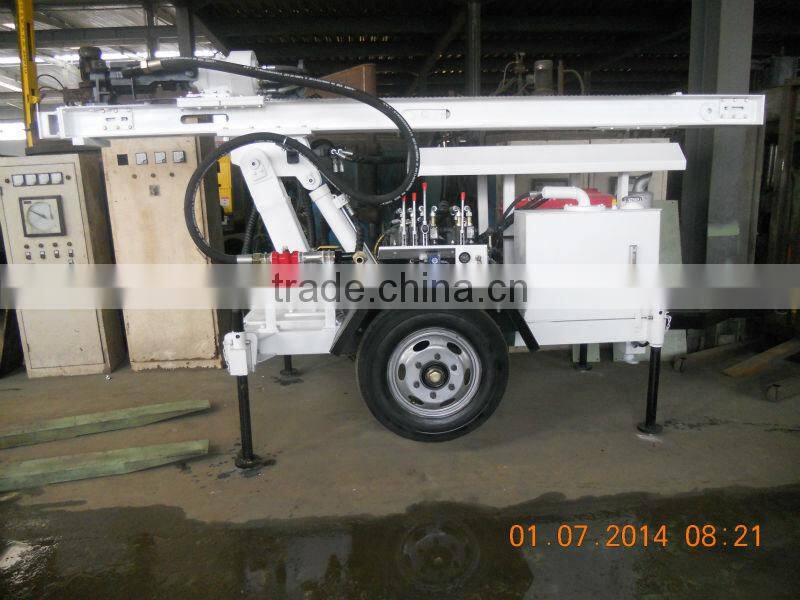

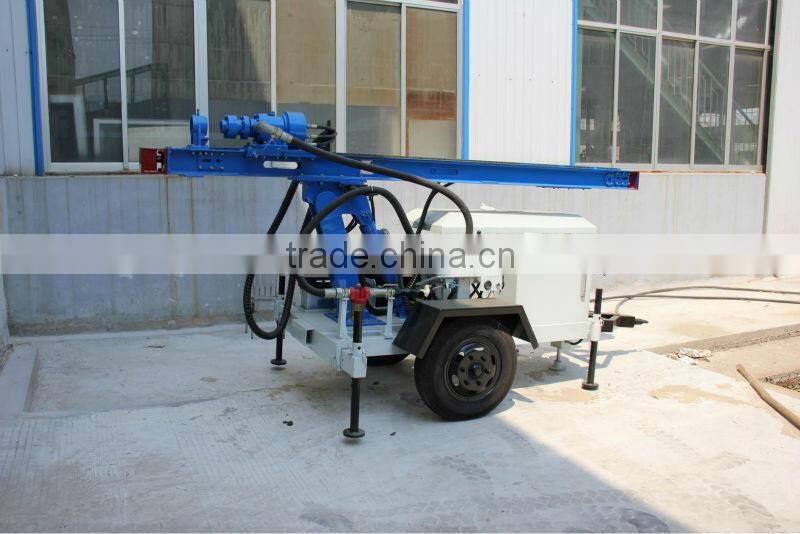

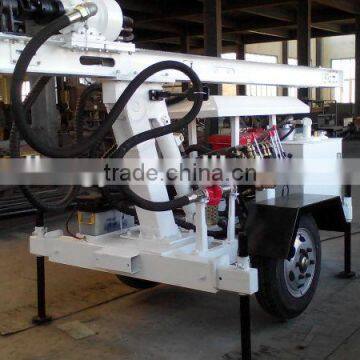

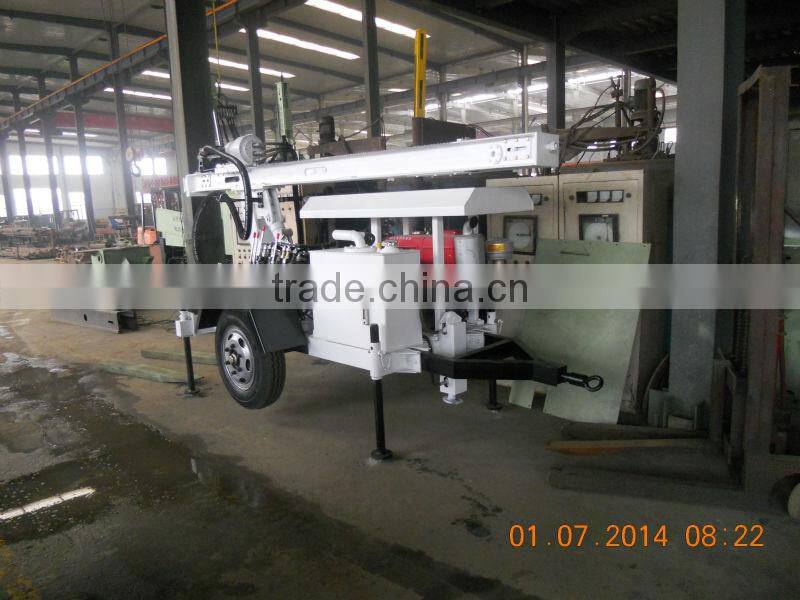

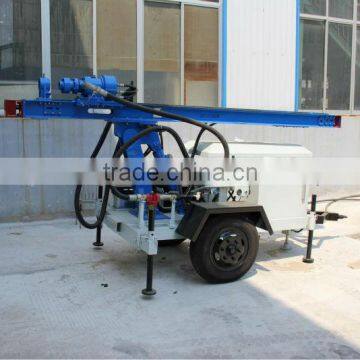

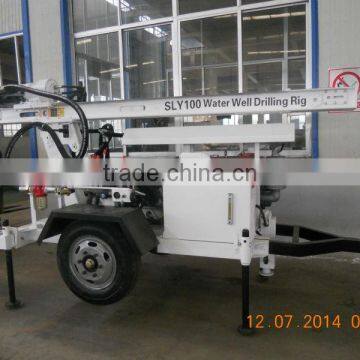

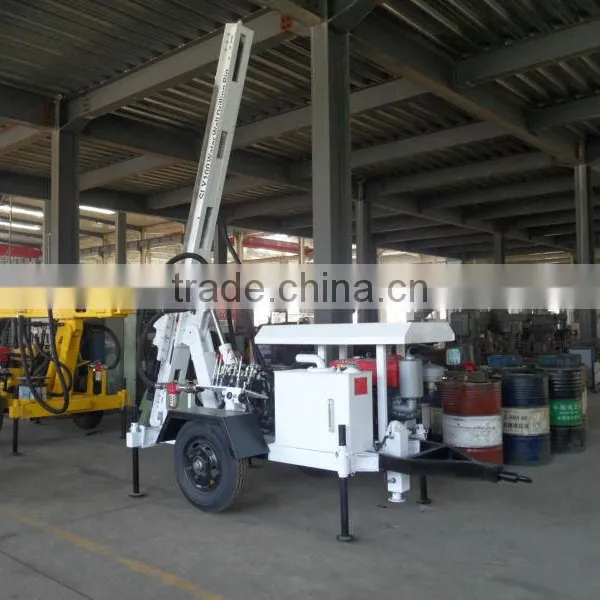

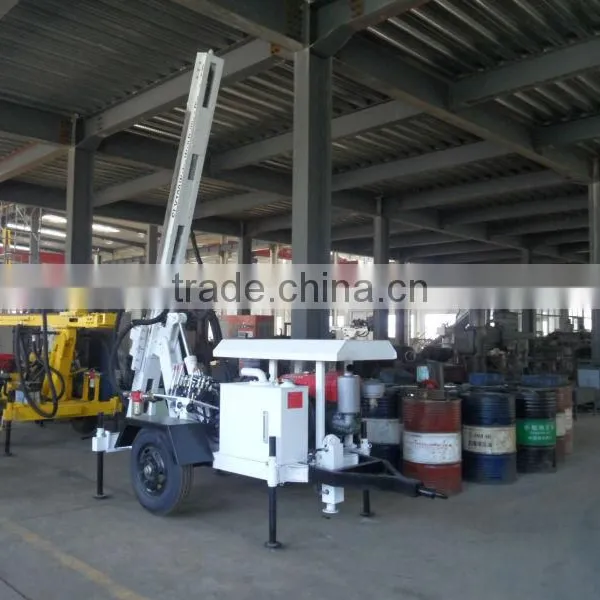

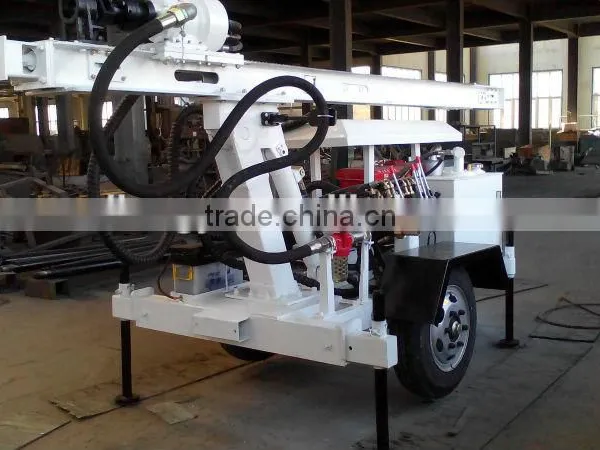

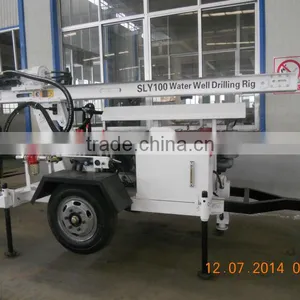

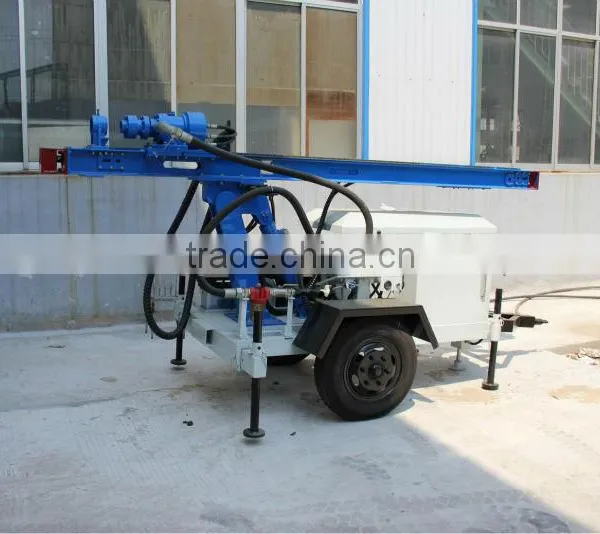

CTQ-L100Y small portable water well drilling rig
CTQ-L100Y water well drilling rig have the character of light,high efficiency,multi-function.According to different conditions,it uses air,foam or slurry to rotate and drill.
Application:it is widely used in industrial and agriculture water project,drill water well,inspect well and other exploration borehole.which especially used for drilling geothermal heating stove.
Technical parameter;
Main technical parameters
Total Weight (kg) | 800 |
Drilling diameter (mm) | 90---130 |
Dimension (L * W * H) | 3200*1400*1500 |
Drilling depth (m) | 80 |
Once promotion distance (mm) | 1500 |
Working pressure (Mpa) | 0.7---1.0 |
Air consumption (m³/min) | 7.2---12 |
Host Power (Kw) | 16.2 |
For rock (f) | 6----20 |
Impact frequency (r/min) | 800 |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
