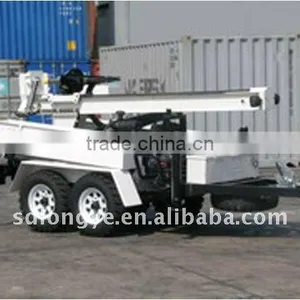

Small Trailer Water Well Drilling Rig

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.SLY400-T use for drill water well
2.depth is 200m depth
3.low cost
4.DTH and mud pump drilling

SLY400-T small trailer water well drilling rig technical data

Description	SLY400-T
Geology drilled	All kinds
Drill depth	0-200 m
Drilling Diameter	90 - 200mm
Drill system and operation	Hydraulic
Rig assembly	1 complete unit, main engine driven
Mobility	4 wheel tandem road trailer
Transportation	Towed by pickup or light truck
Drill pipe (diameter x length)	60/76 mm x 2 m
Mud pump	400 L/min@ 6 bar progressive pump
Foam pump	Hydraulic driven, mounted on rig
Weight	2177 kg
ROTARYHEAD&FEED SYSTEM
Top head drive by a hydraulic cylinder through heavy duty chain.
Rotation torque	2232 N-m
Speed	0 - 34 rpm.
Head travel	2.25 meter
Pull-up capacity	3813.09 kg.
Pull-up speed-slow feed	1.22 meter/min
Pull-up speed-rapid feed	12.26 meter/min
Pull-down speed-slow feed	0-1.88 meter/min
Pull-down speed-rapid feed	0- 16.90 meter/min
DRILL PIPE
Drill pipe length	2.00 meter
Drill pipe diameter	76 mm
Thread	2 3/8 REG API Mod
Power pack speed	3000 rpm.
Load power pack	max. 47 hp.
