Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Crawler DTH Drill

Crawler DTH Drill

Name: Crawler DTH Drill
Brand: longye
SKU: 141558524
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Core Drilling Rig

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Shandong Longye Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Core Drilling Rig

Place of Origin Shandong, China

Brand Name longye

Model Number CTQ-D100YA1

Usage Ore

Specifications

CTQ-D100YA1 crawler DTH Drill,low air pressure hydraulic drilling rig

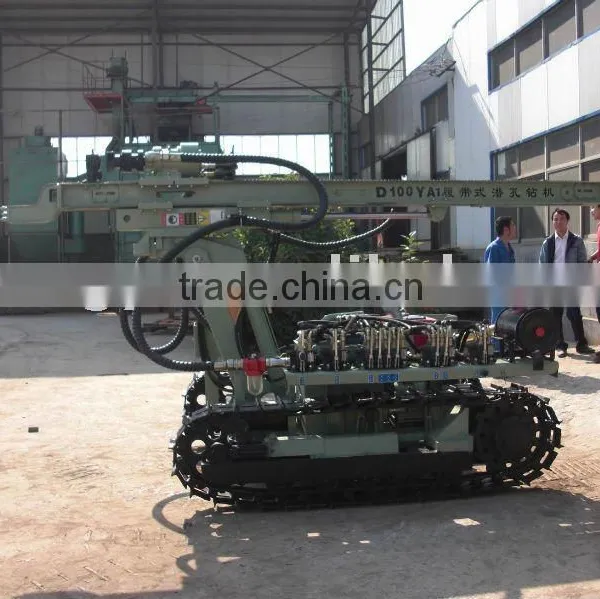

CTQ-D100YA1 Crawler DTH Drill

CTQ-D100YA1 Crawler open hole drill thing of the Company CTQ-D100Y after rig to improve the product, the integrated use of in order to improve product performance, this model improved the lifting mechanism, running gear, and the entire system life and reliability of hydraulic components , thereby greatly reducing the customer's use of cost. The drilling rig compact structure, climbing ability, simple operation, sliding shelf with telescopic compensation function to ensure the stability of the drilling operations.

This product is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.

Main technical parameters

Total Weight (kg)	2600
Drilling diameter (mm)	90---130
Dimension (L * W * H)	410020302020
Drilling depth (m)	30
Travelling speed (km/h)	2
Once promotion distance (mm)	2000
Grade ability (°)	30
Working pressure (Mpa)	0.7---1.0
Chassis ground clearance (mm)	250
Air consumption (m³/min)	7---10
Skid pitch (°)	up and down total 100
Host Power (Kw)	18.6
Sliding tilt swing (°)	Left 35, right 10
For rock (f)	6----20
Skid compensation (mm)	900
Impact frequency (r/min)	840

Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
