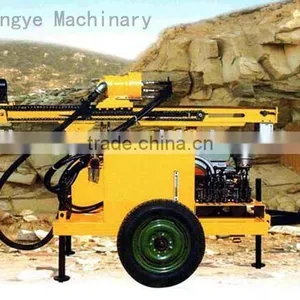

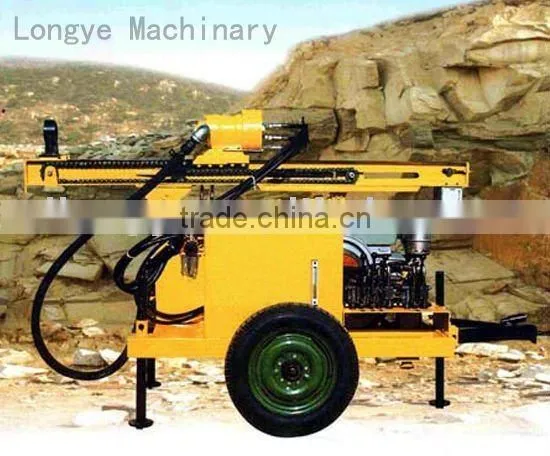

Hydraulic Drilling Rig (CTQ-L100Y)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Crawler Drilling Equipment (CTQ-D100YA1)NegotiableMOQ: 1 Set -
(CTQ-D100YA2) Mobile Hydraulic Crawler Drilling EquipmentNegotiableMOQ: 1 Set
-
Hydraulic Core Drilling MachineNegotiableMOQ: 1 Set
-
Portable Hydraulic Drilling RigNegotiableMOQ: 1 Set
-
Blasthole Drilling Machine(CTQ-D100Y)NegotiableMOQ: 1 Set
Condition
New
Type
Core Drilling Rig
Place of Origin
Shandong, China
Brand Name
Longye
Model Number
CTQ-D100YA1
Usage
Ore
Specifications
Hydraulic Drilling Rig(CTQ-L100Y)mainly used in opening mining,hydro-power plant,electric power stations
Hydraulic Drilling Rig(CTQ-L100Y)
using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift convenient hole, the drilling rig structure, a compact, the smallest turning radius of only 2.8m, while promoting a retractable sliding shelf compensation, drilling hole when the sliding frame support on the ground, drilling and good stability.
Technical parameter
Total weight:2600kg
Hole diameter:90-130mm
Dimension:4100mm*2030mm*2020mm
Hole depth:30m
Walking speed:2km/h
Feed stroke:2000mm
Climb ability:30 degree
Working pressure:0.7-1.0Mpa
Ground clearance:250mm
Air consumption:7-10m3/min
Motor powewr:18.6kw
Slide swing:left 35 right 10
