Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Drilling Mchine

Drilling Mchine

Name: Drilling Mchine
Brand: longye
SKU: 141558520
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Core Drilling Rig

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Shandong Longye Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Core Drilling Rig

Place of Origin Shandong, China

Brand Name longye

Model Number CTQ-Z120Y

Usage Ore

Specifications

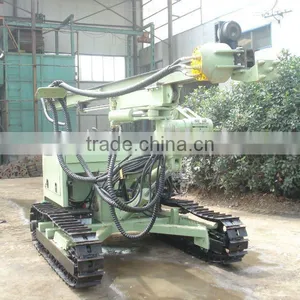

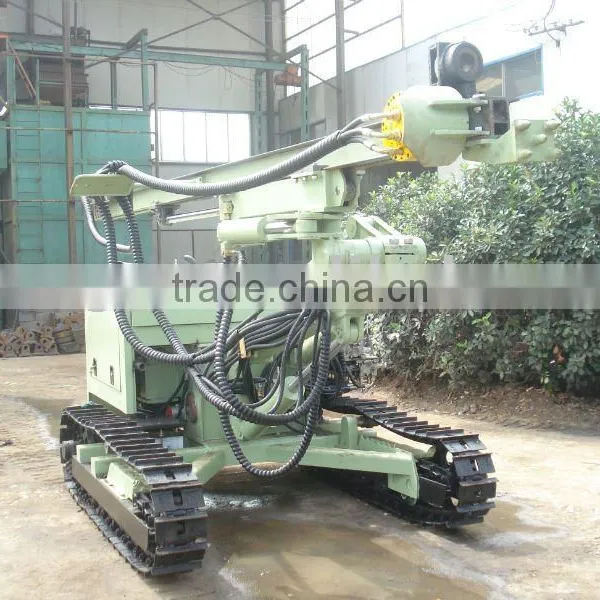

CTQ-Z120Y core drilling machine,low air pressure hydraulic drilling rig

CTQ-Z120Y

core drilling machine,adopt new-style hydraulic technique which have low air consumption,large rotation torque.the structure of the drilling rig is compact, During drilling the slide-skid are support on the ground to ensure the drilling has good stability.The usage of Z120 drilling rig has realiable property,high efficiency in drilling.

Application:

CTQ-Z120Y crawler hydraulic drilling rig is mainly used in open cut ore mining,power station,road building for exploring the stone.

Working pressure	0.7-1.6Mpa
Air consumption	10-12m3/min
Bore diameter	90-130mm
Bore depth	Horizontal 40 down 30
Feed stroke	3000mm
Drill rod diameter	60mm
Guide compensation	1020mm
Lifting force	18000N
Guide pitch	Up and down 100degree
Guide swing	Left 90 right45
Boom pitch	Up and down 70degree
Boom swing	Left 90 right45
Climb ability	25 degree
Ground clearance	250mm
Walking speed	2km/h
Rotation speed	0-80r/min
Rotation torque	2000N.M
Motor power	37KW
Total weight	4600kg
dimension	520020302300
