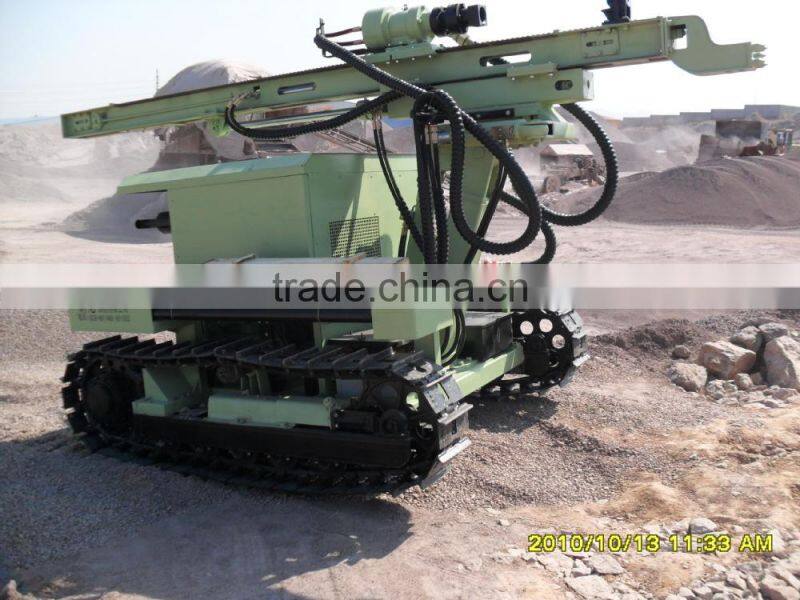

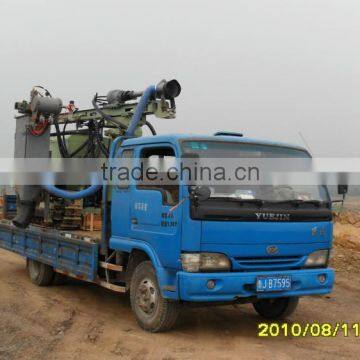

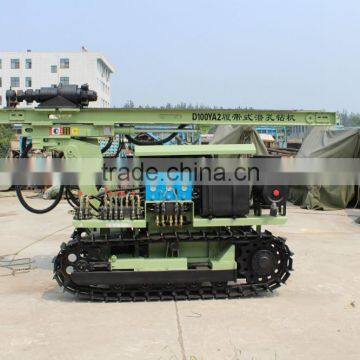

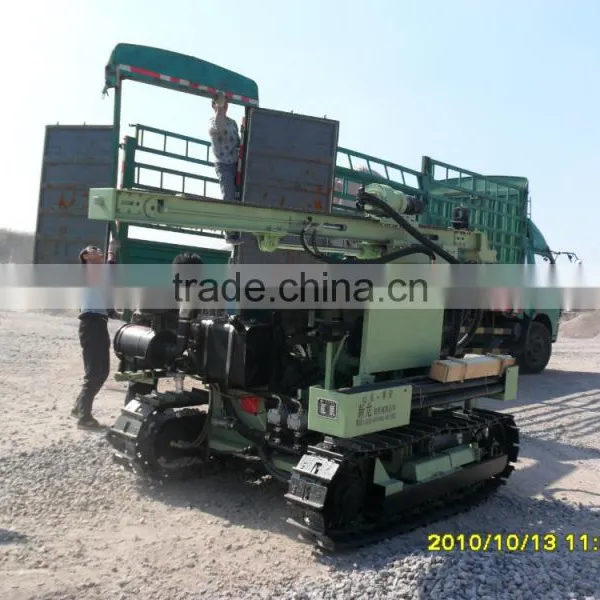

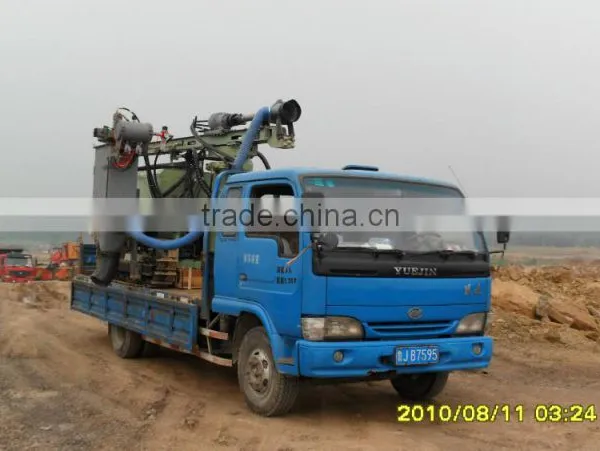

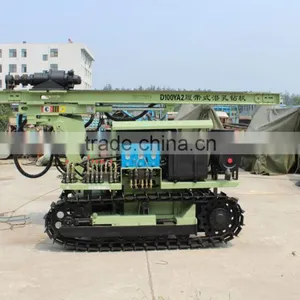

D100YA2 Rotary DTH Drilling Rig for Mine Exploitation
- QingDao port
- T/T Money Gram
You May Like
-
D100YA2-2 Crawler for Mine Blasting Hole Drill Rig
-
G150YF Best Brand Hydraulic DTH Drill Rig for Mine Exploration and Blasting
-
G150YF High Efficiency Different Angle Drilling Bore Hole Hydraulic DTH Blasting Drill Rig for Mine
-
High Pressure Bore Hole Hydraulic Rock DTH Blasting Drill Rig for Mine CTQ-G150YF
-
Slope Project Soil Nailing Track Bore Hole Drilling Machine CTQ-G140YF
-
Hydralic Crawler Mining Rock Drilling Rig CTQ-G140YF
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | LongYe | Model Number | CTQ-D100YA2 | |
| Usage | Ore | Voltage | 24 v | |
| Power(W) | 33000 | Dimension(L*W*H) | 4300*2030*2160 (mm) | |
| Weight | 2860kg | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

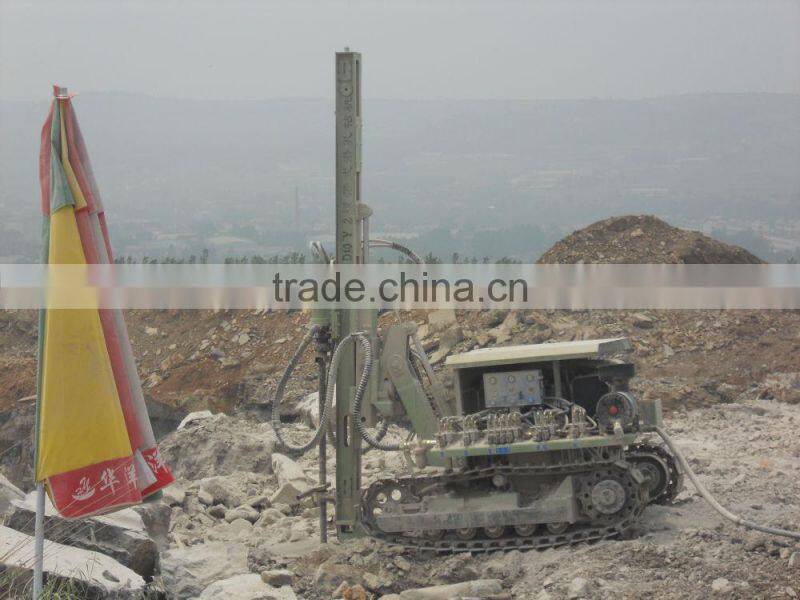

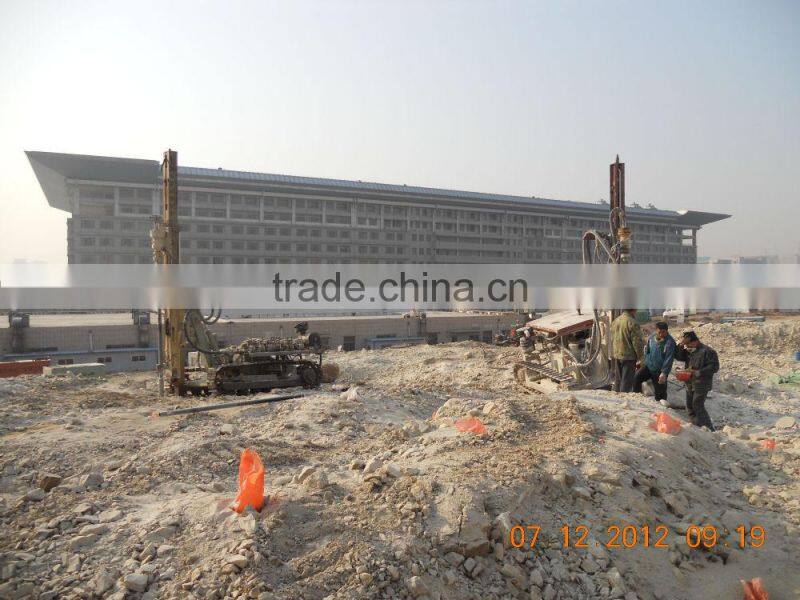

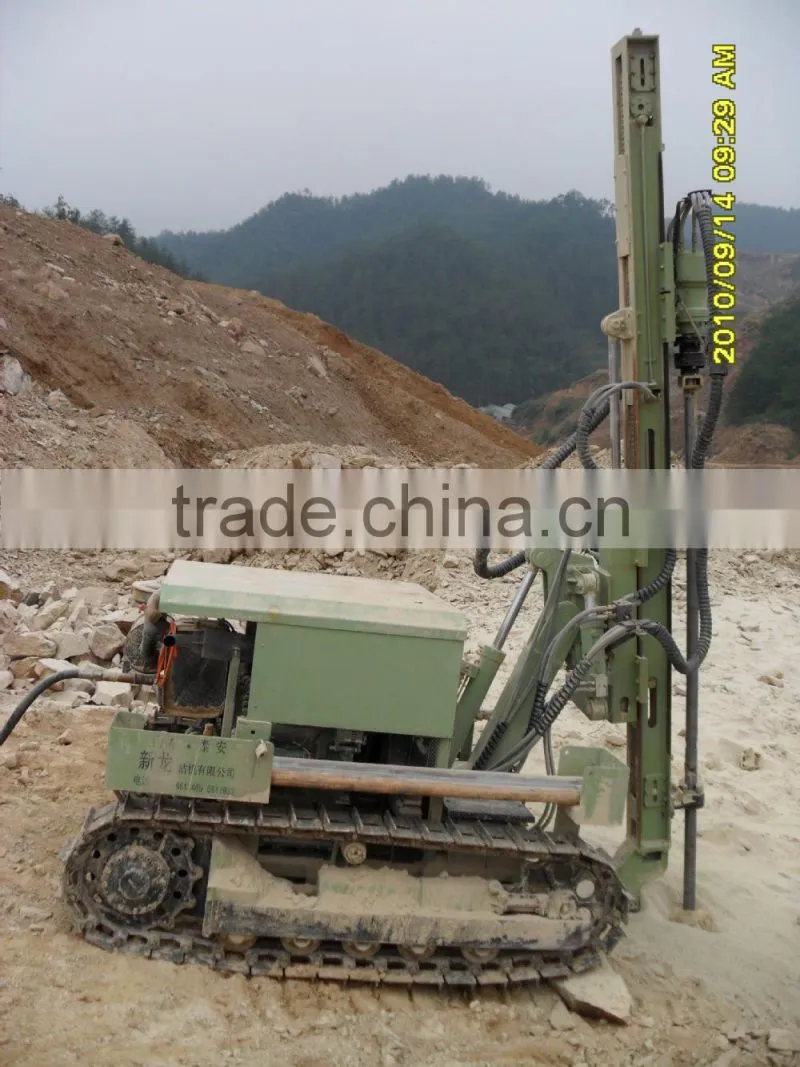

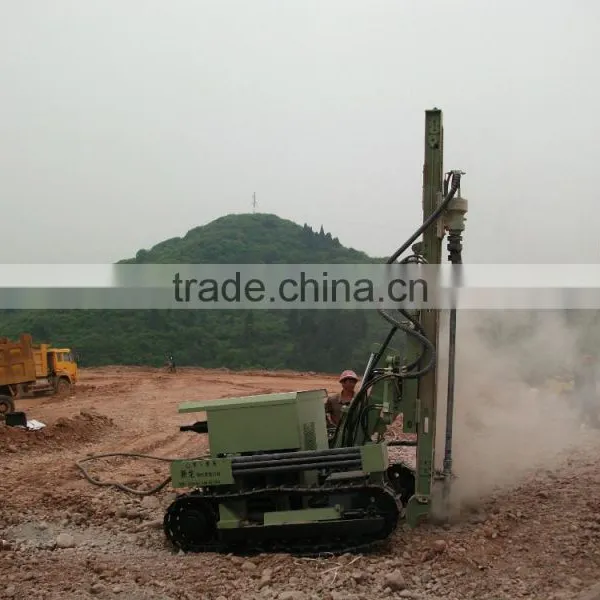

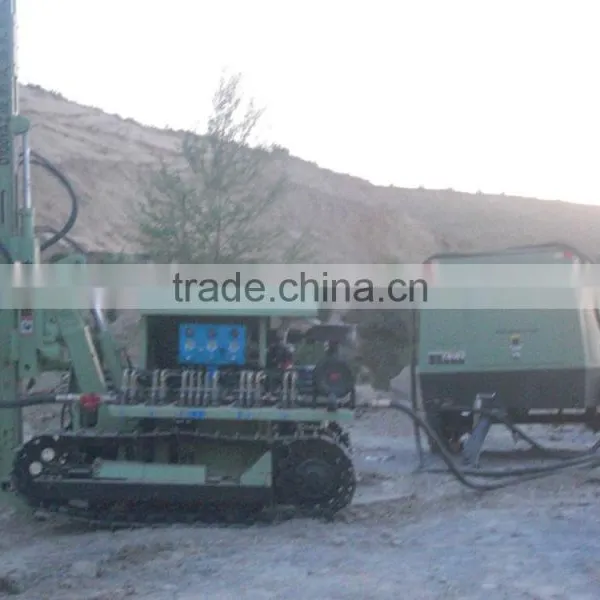

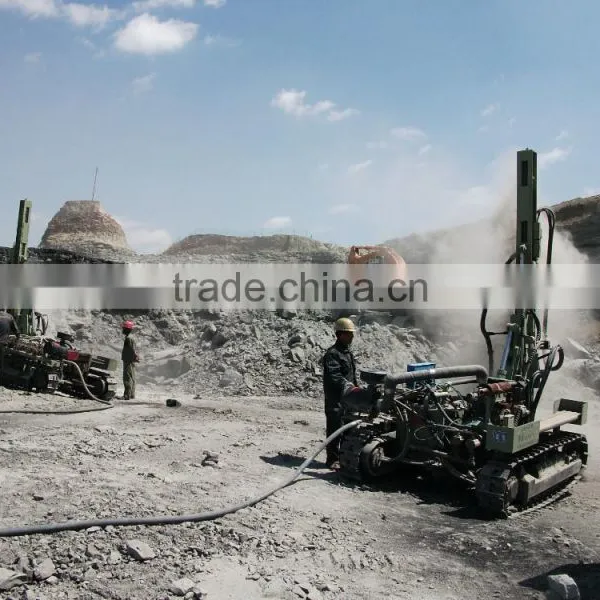

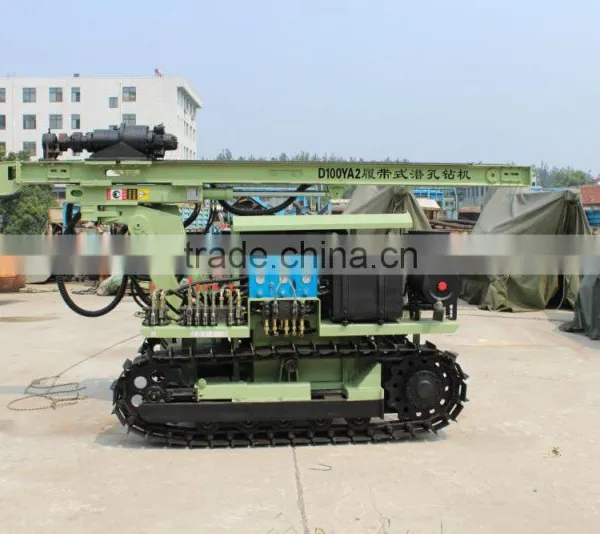

CTQ-D100YA2 crawler hydraulic drilling rig ,the smallest turning radius of only 2.8m,while promoting a retractable sliding shelf compensation, using a new hydraulic technology,is mainly suitable for open mining ,hydro-power plants, electric power stations,road building and other rock drilling blasting holes.
Total Weight(T) | 2.8 |
Drilling diameter(mm) | 90--130 |
Dimension (L * W * H)(mm) | 4100*2030*2020 |
Drilling depth(m) | 30 |
Travelling speed(km/h) | 2 |
Once promotion distance(m) | 2 |
Climb ability(.) | 30 |
Working pressure(MPa) | 0.7-1.4 |
Chassis ground clearance(mm) | 250 |
Air consumption(m3/min) | 7-15 |
Skid pitch(.) | up and down 100 |
Host Power(kw) | 33kw |
Sliding tilt swing(.) | L35,R10 |
For rock | F=6-20 |
Skid compensation(mm) | 900 |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.
