Help CenterD100YA2-2 Crawler for Mine Blasting Hole Drill Rig
Related Products
-
G150YF Best Brand Hydraulic DTH Drill Rig for Mine Exploration and BlastingNegotiableMOQ: 1 Set -
G150YF High Efficiency Different Angle Drilling Bore Hole Hydraulic DTH Blasting Drill Rig for MineNegotiableMOQ: 1 Set
-
High Pressure Bore Hole Hydraulic Rock DTH Blasting Drill Rig for Mine CTQ-G150YFNegotiableMOQ: 1 Set
-
Slope Project Soil Nailing Track Bore Hole Drilling Machine CTQ-G140YFNegotiableMOQ: 1 Set
-
Hydralic Crawler Mining Rock Drilling Rig CTQ-G140YFNegotiableMOQ: 1 Set

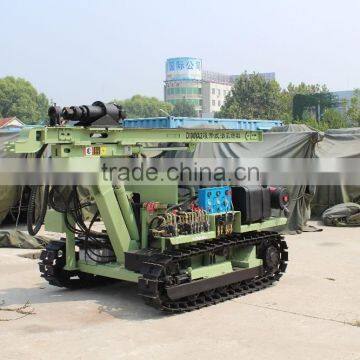

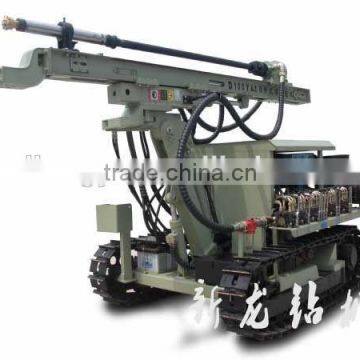

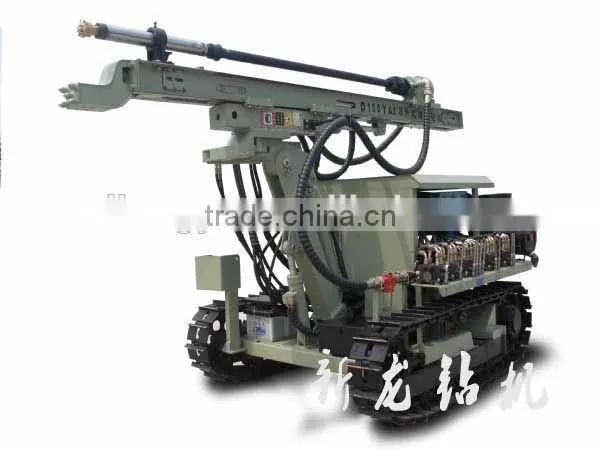

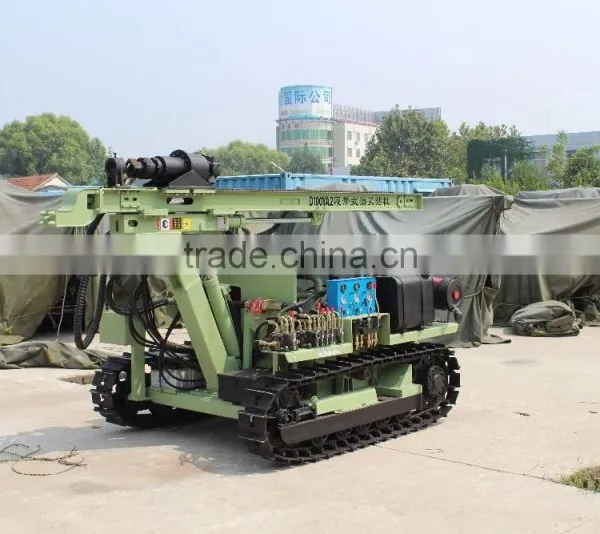

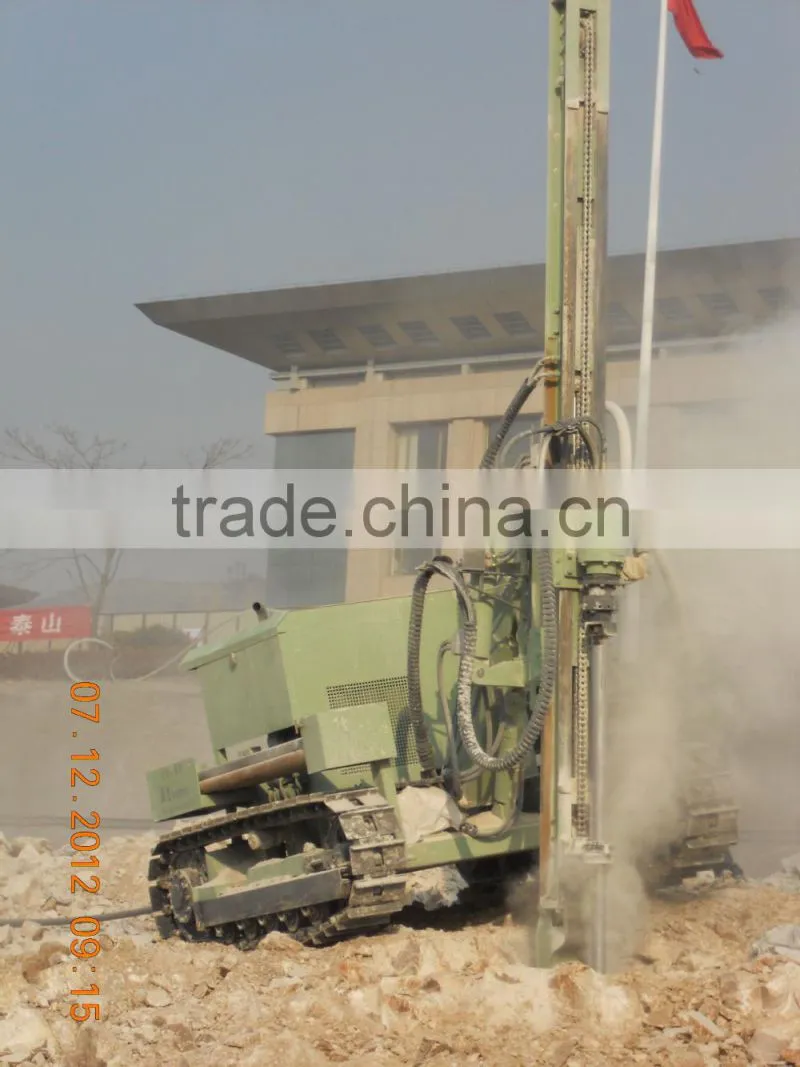

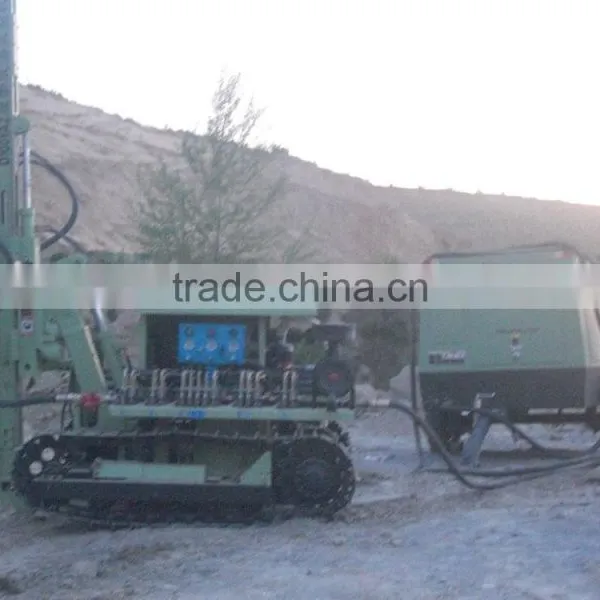

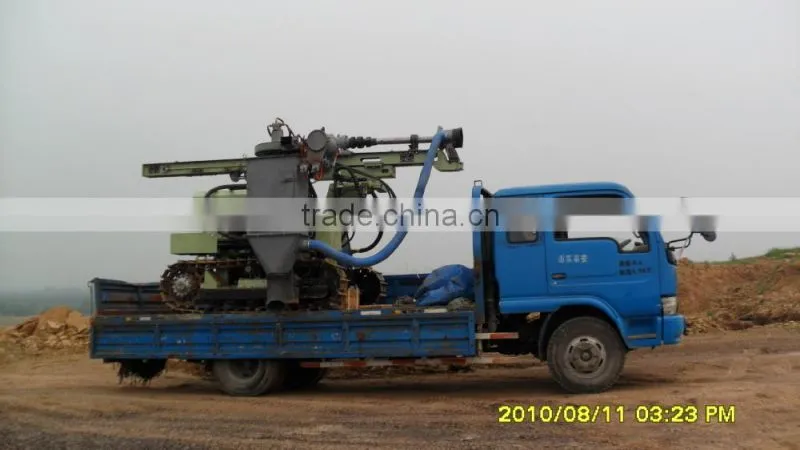

CTQ-D100YA2-2 crawler hydraulic blasting hole drilling rig adopts new hydraulic rotary motor , increase the rotation gearbox with high speed , torque, and low failure rate. Low air consumption of the rig ,the shift hole becomes convenient,use air filter and oil filter, reduce engine wear, thereby increasing the life of the diesel engine. The rig structure is compact , the minimum radius of gyration is 2.8m, while advancing the skid compensation function. when drilling the skid support on the ground, and hole have good stability.

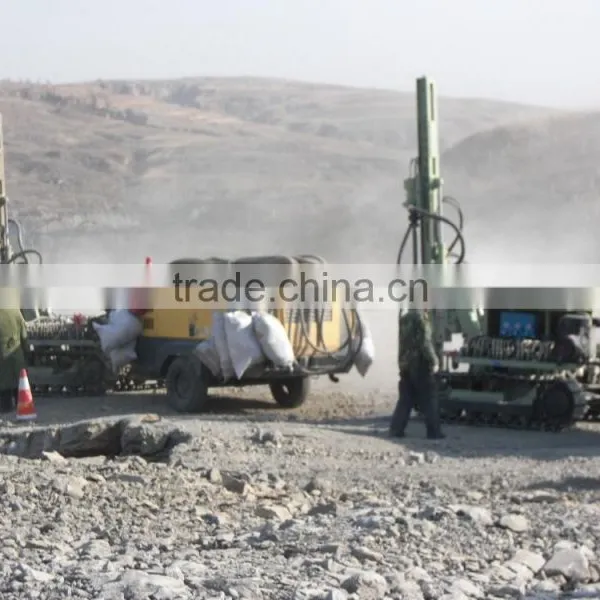

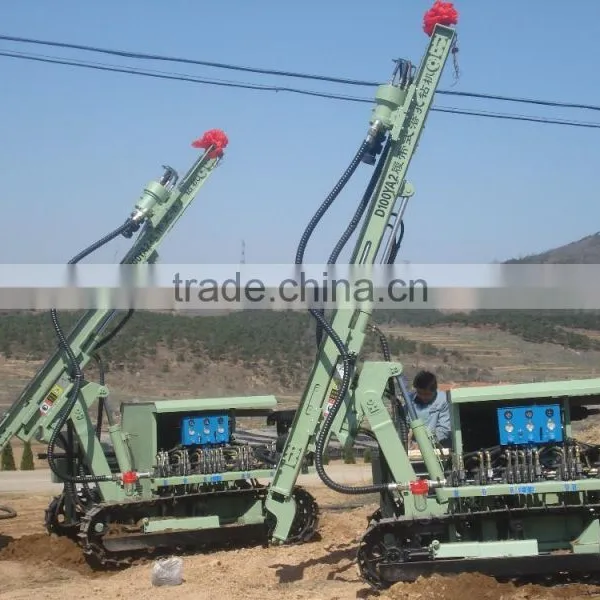

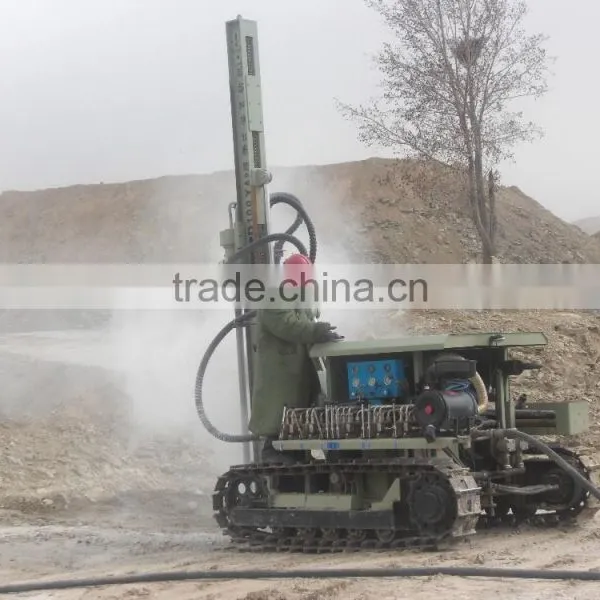

The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.
Total Weight(T) |
2.8 |
Drilling diameter(mm) |
90--130 |
Dimension (L * W * H)mm |
4100x2030x2020 |
Drilling depth(m) |
30 |
Travelling speed(km/h) |
2 |
Once promotion distance(m) |
2 |
Grade ability(°) |
30 |
Working pressure(MPa ) |
0.7-1.4 |
Chassis ground clearance(mm) |
260 |
Air consumption(m3/min) |
7-15 |
Skid pitch(.) |
up and down 100 |
Host Power(kw) |
33kw |
Sliding tilt swing(.) |
L35,R10 |
For rock |
F=6-20 |
Skid compensation(mm) |
900 |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.The company covers an area of 35,000square
meters,more than 160 employees,20 engineering and technicians, all are engaged in specialized drilling rig mechanical
design talents.
