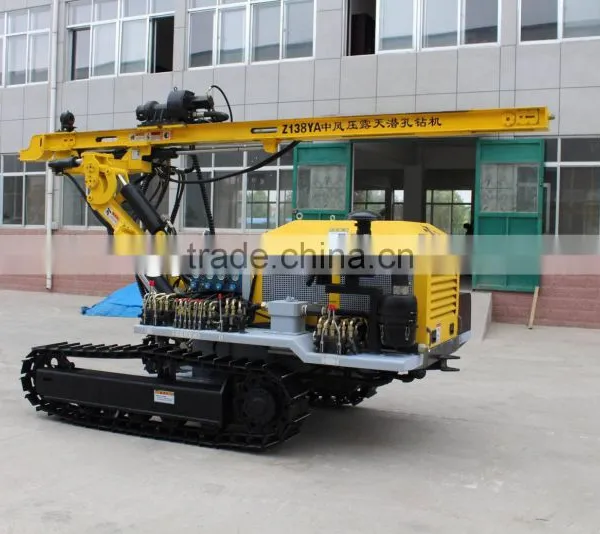

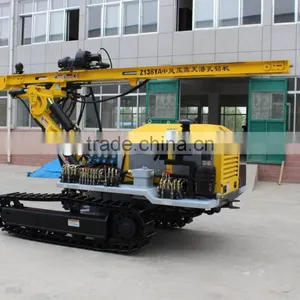

Crawler Rock Blasting Hydraulic DTH Drilling Rig
- QING DAO
- T/T Money Gram
You May Like
-
DTH Blast Hole Drilling Rig/rock Drilling Equipment CTQ-G140YF for Sale
-
Mining Blasting Hole Drilling Rig CTQ-G140YF for Sale
-
Anchor Drilling Rig Blasting Hole Drilling Rig CTQ-G140YF
-
Gold Mining Blasting Hole Drilling Rig CTQ-G140YF
-
Hydraulic Rock Drill CTQ-G150Y for Sale
-
DTH Gold Mining Drilling Rig With Dust Collector
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | longye | Model Number | CTQ-Z138YA | |
| Power(W) | 45kw | Dimension(L*W*H) | 5200*1950*2300mm | |
| Weight | 4170kg | Certification | CE |
Product Description
Specifications
CTQ-Z138YA rock blasting hydraulic DTH drilling rigdrilling diameter:90~130mm
drilling depth:40m
CTQ-Z138YA rock blasting hydraulic DTH drilling rig
drilling diameter:90~130mm
drilling depth:40m

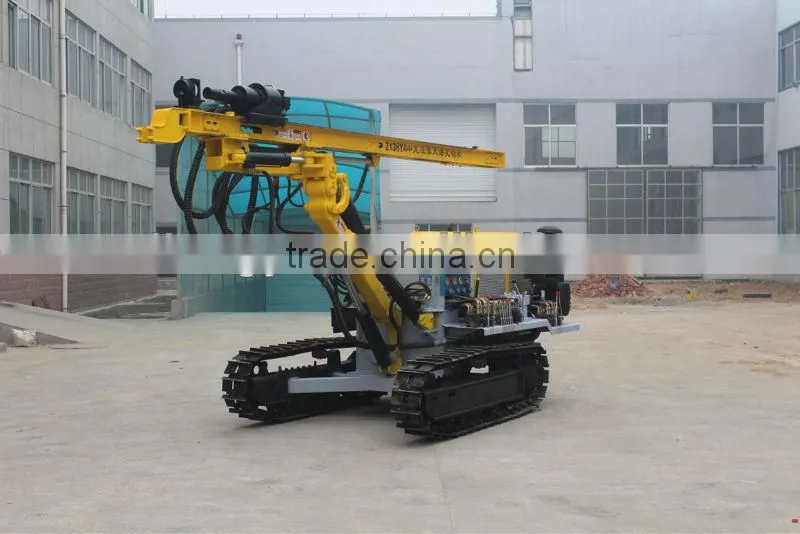

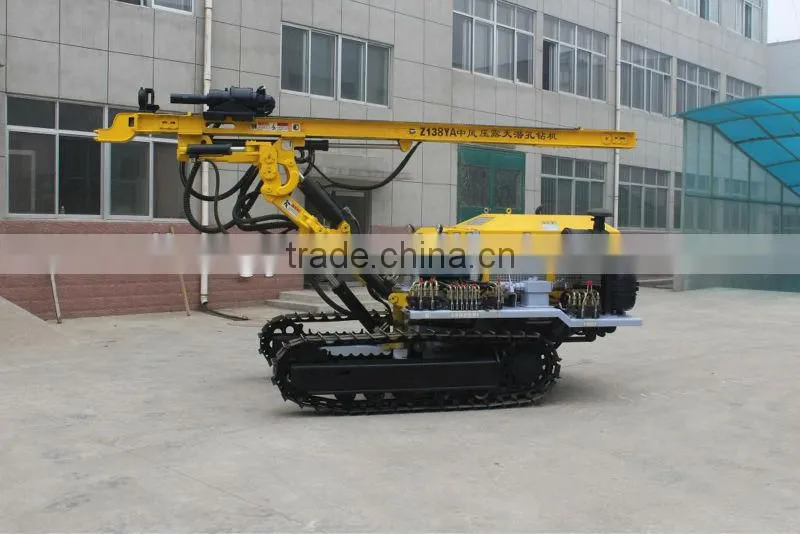

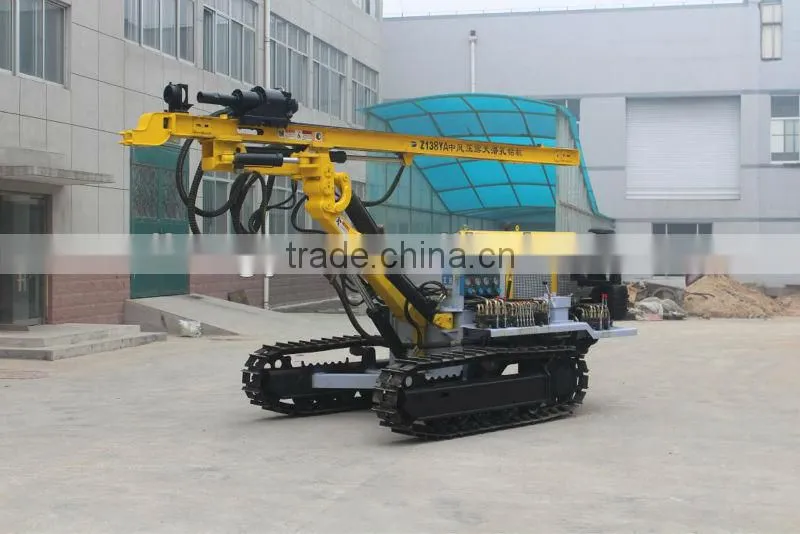

CTQ-Z138Y crawler hydraulic drilling rig
CTQ-Z138Y type crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift hole easy The drilling rig compact structure, while promoting a retractable sliding shelf compensation, drilling when the sliding frame support on the ground, drilling and good stability. Use Z138 rig reliable Chazzan efficient drilling in hard rock drilling rig as fast as 2 times the low air pressure is the construction unit cost efficiency gains strong support.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.
Main technical parameters of CTQ—Z138Y | |
Wind pressure (Mpa) | 0.7----1.6 |
Air consumption (m³/min) | 10----15 |
Drilling diameter (mm) | 90----130 |
Drilling depth (m) | level 40m,down 30m |
Once promotion distance (mm) | 3000 |
Drill diameter (mm) | 60 |
Skid compensation (mm) | 900 |
Maximum lift force (N) | 24800 |
Skid pitch (°) | up and down total 45 |
Swinging angle of skid (°) | Left40, right 30 |
Boom Pitch (°) | up and down total 60 |
Boom swing angle (°) | Left 30, right 40 |
Grade ability (°) | 30 |
Chassis ground clearance (mm) | 260 |
Travelling speed (km/h) | 2 |
Back to the transit speed (r/min) | 0----110 |
Rotary torque (N.m) | 2000 |
Host Power (Kw) | 45 |
For rock (f) | 6----20 |
Impact frequency (r/min) | 950---1500 |
Total Weight (kg) | 4170 |
Dimension (L * W * H) | 5200*1950*2300 |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
