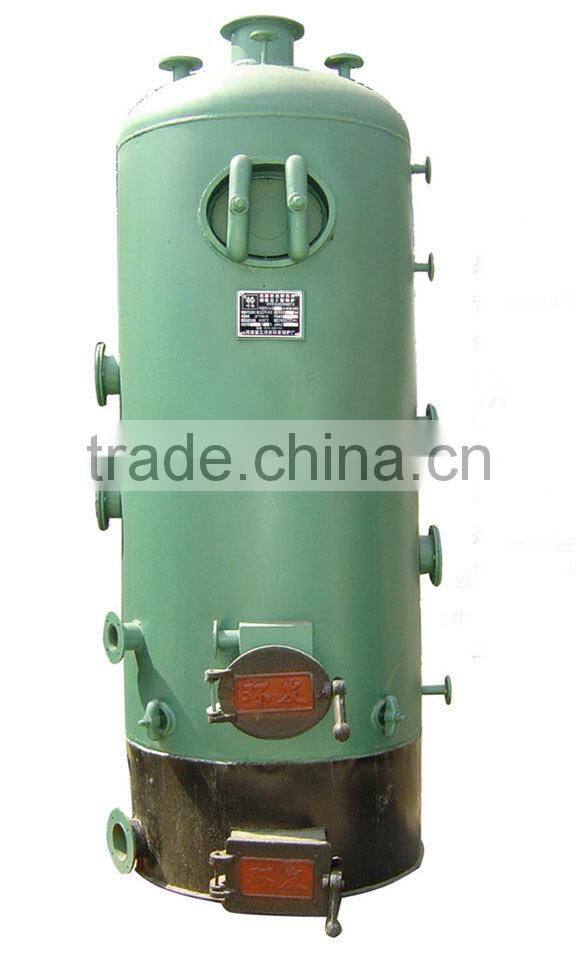

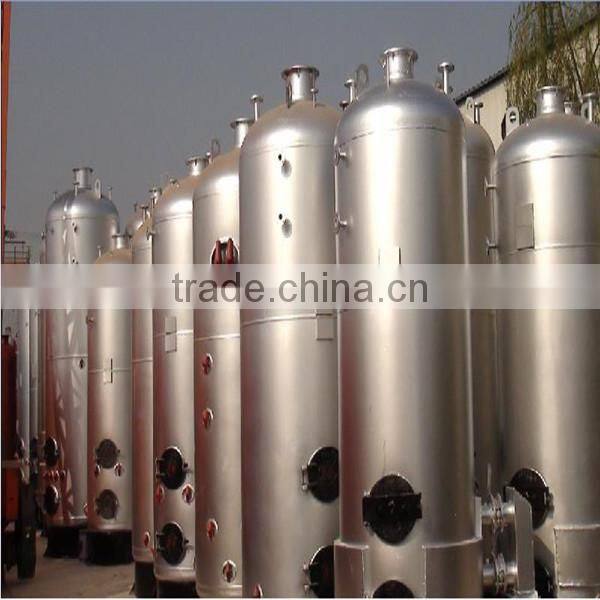

Small Vertical Coal Boiler
Usage: The steam boiler can be used for producing desired hot water for product manufacturing process in the weave factory, printing and dying, papermaking, and rubber, plastic chemical, pharmaceutical, etc. And for heating room, bath, air conditional, and daily life water in the factories, departments, hotels, schools, restaurants, services industries etc.
The Advantages:
1.Combine the coal gas generator with boiler by using the the coal gasfication principle, reduce the heat losses ,
improve the heat efficiency, the energy-saving effect is excellent.
2.The design of the small vertical coal boiler is unique and scientific, pollutant is lower than the national standard,the whole preocess is environmental.
3.Continous and clean steam supply, high fuel efficiency and energy-saving, application field is small factory, government,school,hotel and bathing pool.
The following is the detail parameter list of the small coal fired vertical steam boiler , different boiler's parameters are available:
Model | LS0.3-0.4-WII | LS 0.5-0.4-WII | LS 0.5-0.7-WII | LS 1-0.4-WII | LS 1-0.7-WII |
Rated steam evaporation(t/h) | 0.3 | 0.5 | 0.5 | 1 | 1 |
Steam pressure (Mpa) | 0.4 | 0.4 | 0.7 | 0.4 | 0.7 |
Steam temperature(°c) | 151 | 151 | 170 | 151 | 170 |
Fire grate area(m²) | 0.503 | 0.78 | 0.78 | 1.53 | 1.53 |
Heating surface area(m²) | 12 | 24.57 | 24.57 | 40 | 40 |
Dust concentration(Mg/m3) | 30 | 30 | 30 | 30 | 30 |
Noise degree(Db) | 73 | 73 | 73 | 73 | 73 |
Total boiler wight(t) | 1.99 | 3.03 | 3.49 | 5.56 | 5.98 |
1. Capacity: 0.1-2Ton/hr
2.Rated working pressure: 0.4-1.5Mpa (4-15kgf/cm2)
Can be adjusted according to customer’s demand
3.Fuel: Coal & Wood
4.Thermal Efficiency: ≥90%
5.Power Supply: Three phase 380V, 50Hz Can be adjusted to 400 Volt , 415 Volt or 420 and adjusted to 60Hz
6.Saturated steam temperature: 1500-194°c
Send Inquiry to This Supplier
