5t/d Kraft Corrugated Paper Making Machine,liner Paper Machine

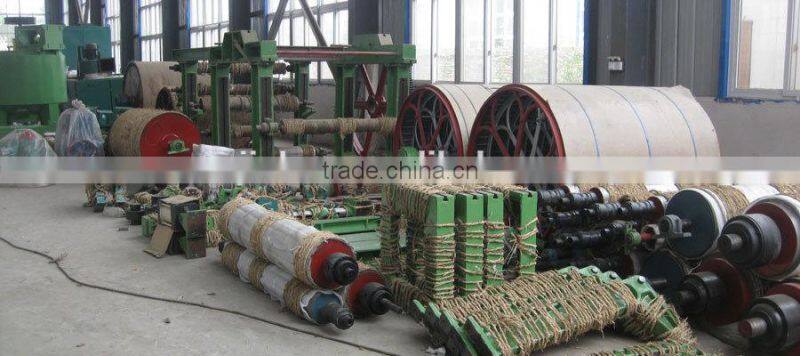

straw rope and wooden package

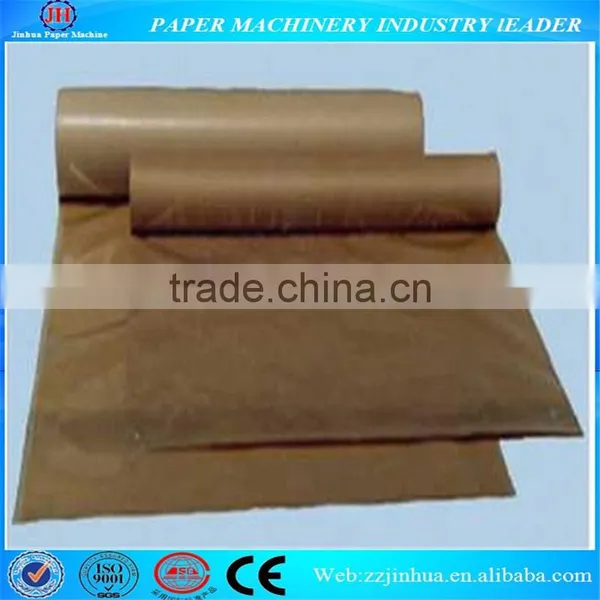

kraft corrugated paper making machine,liner paper machine

The main structure:

1.Cylinder part: 2 stainless-steel cylinder(Φ1250mm×1450mm)..2 couch roll, Φ400mm×1450mm,  1 reverse roll,Φ400mm×1450mm. rubber hardness HS-38°±2.

2. Pressing part: 1 Natural marble roller(Φ450mm×1450mm).1 rubber roll(Φ400mm×1450mm). rubber hardness HS-90°±2, Pneumatic compression device.

3. Dryerpart: 2 alloy drying cylinder (Φ1500mm×1450mm), 1 touch roll, Φ450mm×1450mm.rubber hardness HS-90°±2,Pneumatic compression device.

4.Winding part: 1092mm cylinder paper winding machine and paper rewinding machine.

5. Driving and controlling part: using of AC frequency conversion, and driving by step.

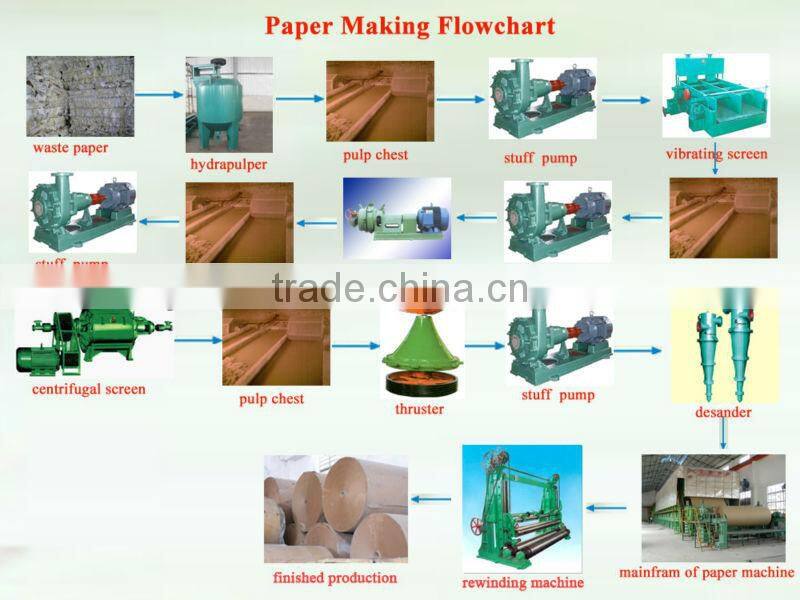

 Equipment List:

1092mm double-dryer anddouble- cylinder mould paper machine     1 set

Exhausting hood                                                                               1set

Flow fan                                                                                          1 sets

15 type roots vacuum pump                                                           1set

Suction box                                                                                     2 sets

1092mm paper winding machine                                                     1set

1092mm paper rewinding machine                                                   1set

Paper transducer                                                                            1set

Total workbench , ladder, handrail                                             whole sets

3 m3 water pulp shredder                                                              1 sets

2m2 vibrating screen                                                                     1 sets

0.9m²centrifugal screen                                                               1 set

380 double pulping machine                                                           1 sets

Φ700 thruster                                                                               4 sets

4” pulp pump                                                                               4 sets

6” pulp pump                                                                               1 sets

 606 desander 6 sets                                                                     1 groups

Pre-sales service

customers find the right product by professional technology and business consultation

vide plans of the machines installation freely

uld make customized products according to the clients requirements

After-sales service

1.highly inspecting equipments in each working procedure ,quality comes first

2.fast and saft delivery

3.assisting our clients to bulid the equipment

4.dispatching engineers to install and debug equipments

5.training the first-line operators on site

6.regularly visit clients to solve production problems

viding lifetime maintenance service

viding technical exchanging and updating

Zhengzhou Jinhua Machinery Co., Ltd. is specializes in the design,development, manufacture and paper making line ,drying equipment and other environmental-friendly products. Join us, win success! Aiming at being the No.1 among peers. We manage our enterprise according to the core principle of "Quality is the root, Customer is God, Innovation is life, Integrity is essence". Every one in pur company knows it and practices it all the time. To meet with your demand is our goal. Come to us, closer to a promising future!
