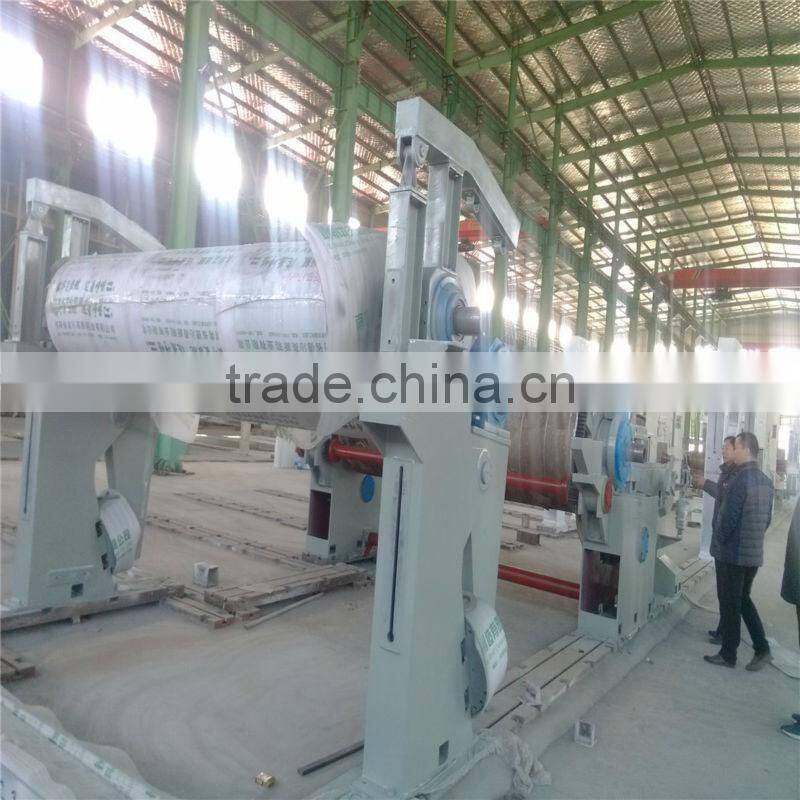

1760mm Corrugated Paper Line

     1760mm  Corrugated Paper Machine

Technical Parameter:

1. Raw material: recycled paper, wood pulp.

2. Output paper: brown wrapping paper,brown craft paper,white craft paper,packing paper

3. Output weight: 90-220g/m2

4.Net paper width: 1760mm

5.Design speed: 180m/min

6. Working speed: 110-160m/min

7. Capacity: 30T/D

8. The gauge: 2600mm

9. Pressure type: pneumatic pressure device

10.Driving type: use AC frequency conversion, and driving by step

11. Machine design: squaring box type, including left and right hand machine, high speed running in safe and safety environment.

12 Dryer: Wire-releasing part: ≥18-24%

        Squeezing-mill releasing part: ≥38-40%

        Manufactured paper dryness: 90-92%

13. Calculated running speed in a day: 22.5 hours

14. Calculated outputting rate: 97%

15. Calculated finished product rate: 95%

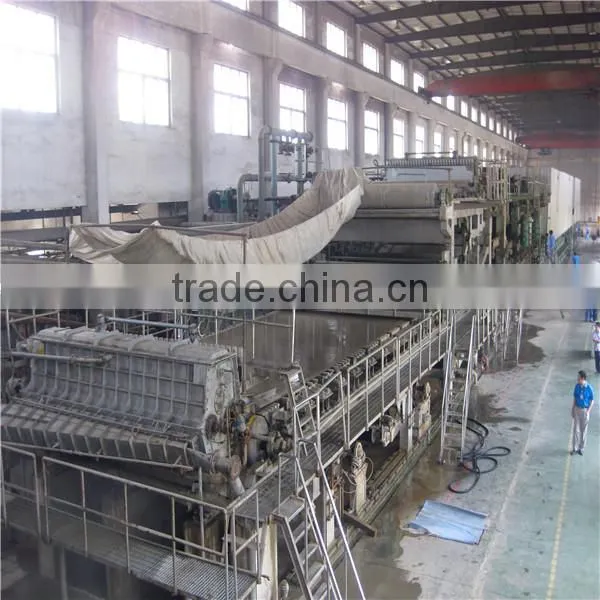

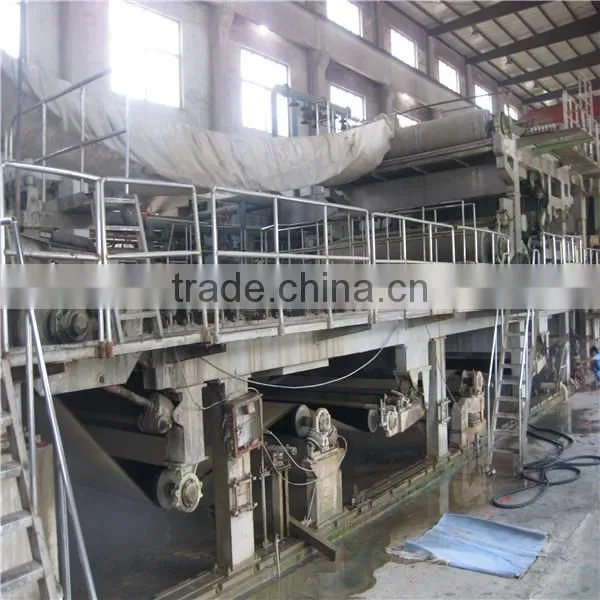

16. Layout type: Head box ——fourdrinier wire part ——wringing device 1set—2 main pressing part ——12 Φ1500mm dryers——sizing machine ——6 Φ1500mm dryers (two of them are chrome plated)——paper winding machine ( right hand machine)

Pulping and paper recycling:

The process of waste paper recycling involves mixing used paper with water and chemicals to break it down. It is then chopped up and heated, which breaks it down further into strands of cellulose, a type of organic plant material; this resulting mixture is called pulp, or slurry. It is strained through screens, which remove any glue or plastic that may still be in the mixture then cleaned, de-inked, bleached, and mixed with water. Then it can be made into new recycled paper.

 Machine Structure:

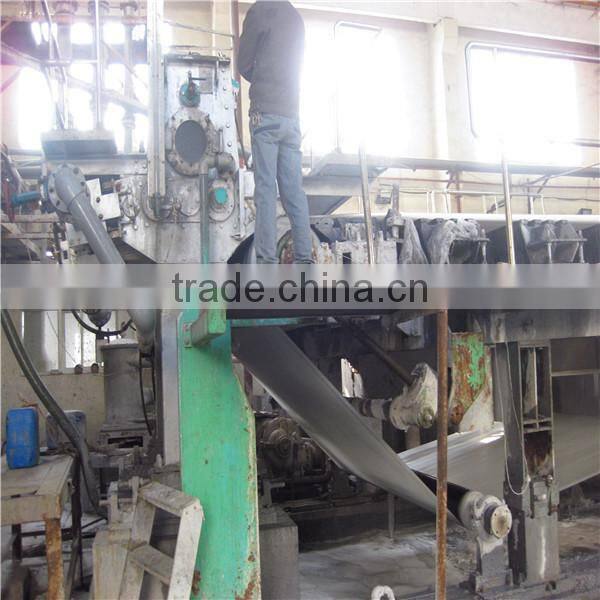

1.Fourdrinier part: The length of fourdrinier part is 12m, vacuum couch roll Φ650mm×2150mm open style headbox, inner is bordered with stainless steel, drive by two homogenate roll, macromolecule water board, macromolecule anti-grinding faceplate, suction box 6 pieces. Roll: none slot roll with rubber covered. Frame: square frame is made of steel.

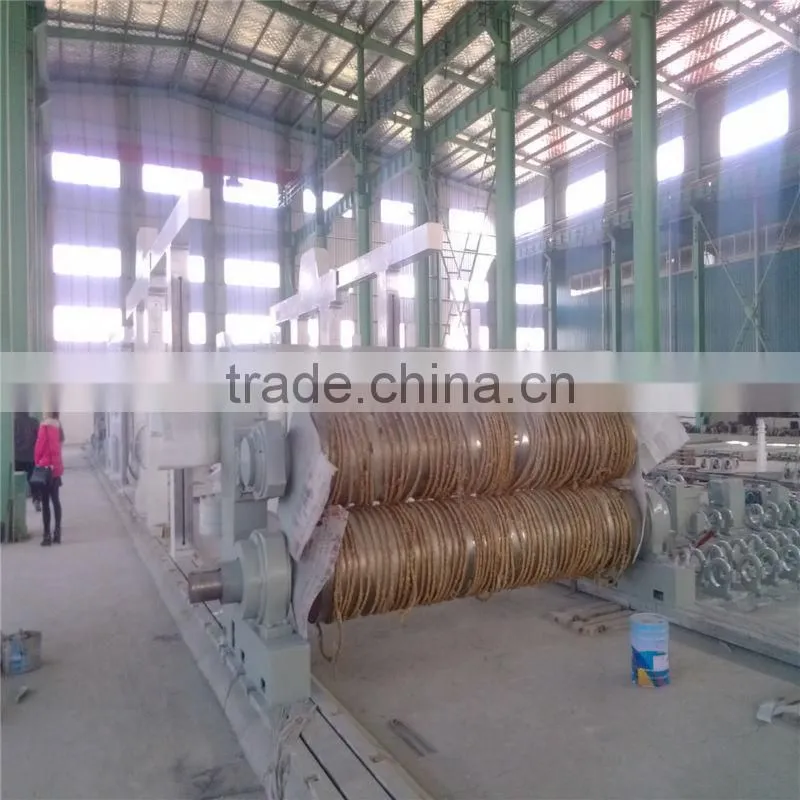

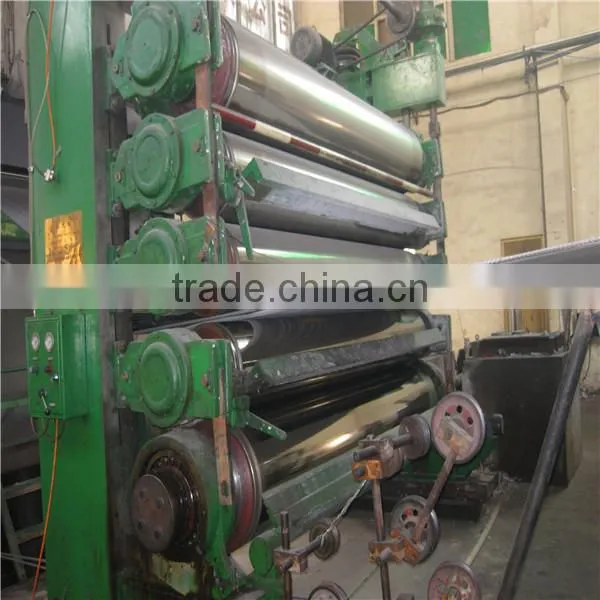

2.The press part: designed wringing device 1 set; two main press ,  Φ 650mm×2150mm 2 stone rolls, Φ  600mm×2150mm 2 rubber rolls; shore hardness 95°±2, and pneumatic compression device(standard height and moderate rubber roll)

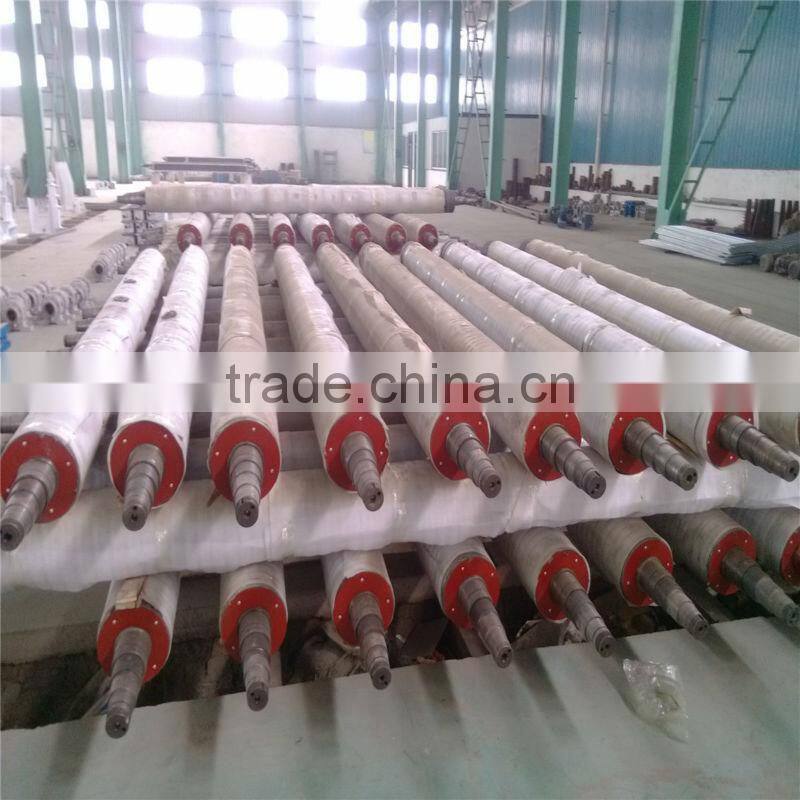

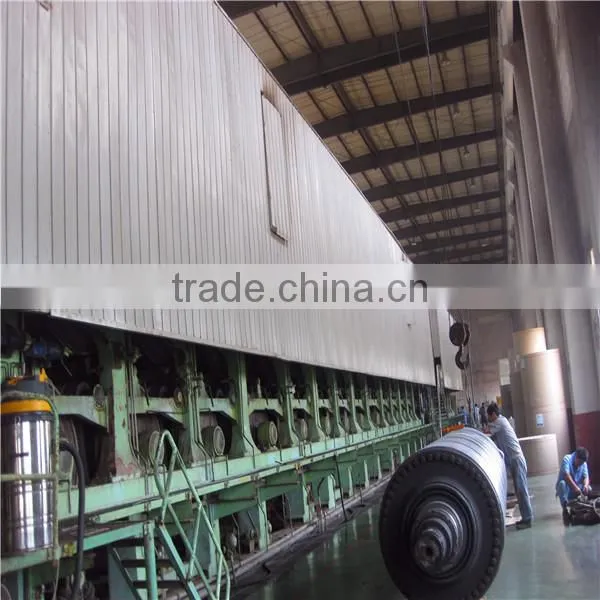

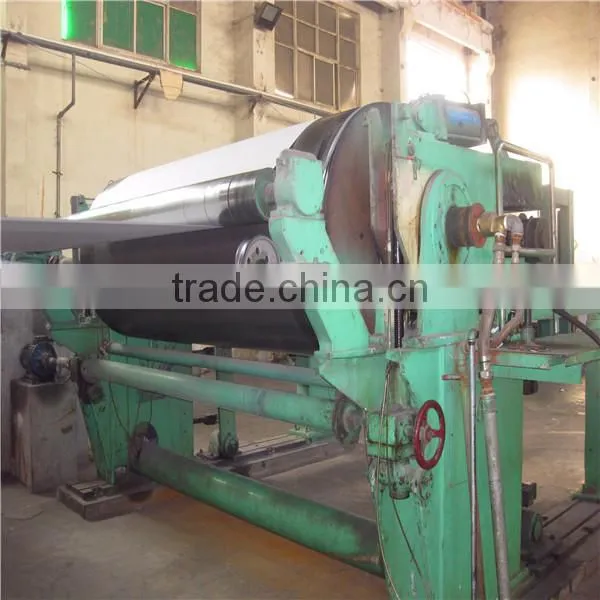

3.The dryer part: Φ 1500mm×2150mm dryer cans 18 pcs. 2 of them are chroming, arrangement pattern: 12+size press+ 6. Pneumatic compression device. Equipped with pneumatic guide and electric mesh-fastener.

4.Winding part: 1760mm cylinder winding paper machine and paper rewinding machine.

5.Driving and controlling part:  Using of AC frequency conversion and driving by step.

Features:

Pulping, paper making and processing equipment adopt one-stop process design. This advanced design occupies small space for convenient operation and management. It has high security and automatization degree, and can provide you high production with steady quality.

Transmiss control cabinet

All adopt standard GGD control cabinet, including power supply cabinet, transmission cabinet.

Operational panel

Including main transmission operational panel.

Software and design information:

1. PLC applications software, speed chain, current control and telecom software.

2. Providing system schematic manual, external wiring diagram and cable list.

3. Providing technical specification of system unit, operation, running and configuration software.
