Specifications
Color sorter5000*3 pixel
Detecting area 0.02 square millimeter
CCD Sensor :Toshiba
Valve: SMC,JIETAI

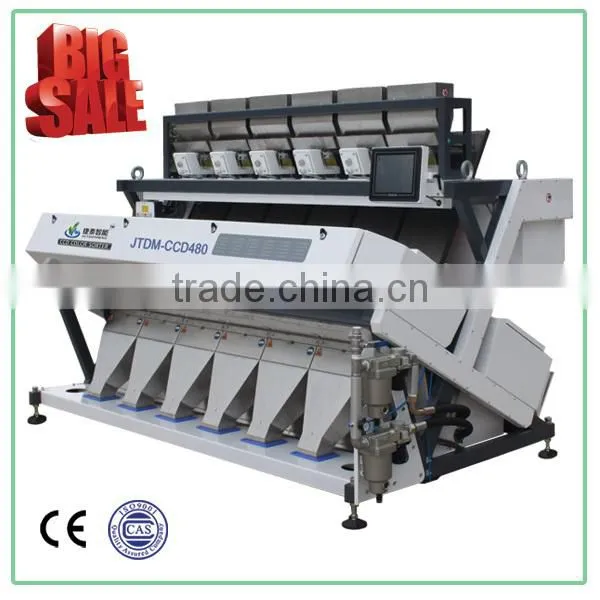

Multi-Function Beans Sorting Machine For Agriculture Grain Processing, Reliable Sorting Machine
1.We have established in-depth technology cooperation with foreign companies
,especially a well-known ducer of color sorter.In particular,the cooperation has brought significant achievements in the research of CCD color sorting
technologies.
2.The sorter adopts high quality special industrial lenses designed/manufactured for color sorting of coarse cereals, dehydrated vegetables and plastics. The working parameters of the lenses are customized for color sorting of different materials with optimized light path design to ensure that each grain of materials can be imaged on the image sensor.
3.OEM and ODM orders are welcomed.The goods can be manufactured according to your own designs,colors and sizes,as long as you could offer us pictures and sizes. Also,any images or logo printings are available.
Model |
JTDM-CCD160 |
JTDM-CCD240 |
JTDM-CCD320 |
JTDM-CCD400 |
JTDM-CCD480 |
Throughput(T/H) |
1.5~3 |
3~8 |
4~11 |
6~13 |
7~15 |
Channels |
160 |
240 |
320 |
400 |
480 |
Chutes |
2 |
3 |
4 |
5 |
6 |
Light Source |
Led Light |
Led Light |
Led Light |
Led Light |
Led Light |
Pixel of Camera |
2048 |
2048 |
2048 |
2048 |
2048 |
Color Sorting Accuracy |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
Carryover rate |
≥10:1 |
≥10:1 |
≥10:1 |
≥10:1 |
≥10:1 |
Power(KW) |
0.8-2 |
1.0~2.5 |
1.2~3.0 |
1.4~3.5 |
1.6~4.0 |
Air pressure(Mpa) |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
Voltage(v) |
220V/50HZ |
220V/50HZ |
220V/50HZ |
220V/50HZ |
220V/50HZ |
Air consumption (L/min) |
800-1300 |
1000-1800 |
1200-2500 |
1500-3000 |
1800-3600 |
Weight(kg) |
700 |
900 |
1100 |
1300 |
1500 |
Diamension(mm)L*W*H |
1674* 1520*1800 |
1674* 1520*1800 |
1983*1520*1800 |
2319*1520*1800 |
2655*1520*1800 |
Package |
wooden case |
wooden case |
wooden case |
wooden case |
wooden case |
Note : The above impurities is around 2% . The Specific parameters will be different based on the raw material and impurities
