Specifications
1.Toshiba brand CCD sensor2.Super wide chute to achieve high output and precision
3.SMC Solenoid Valve
4.LED light

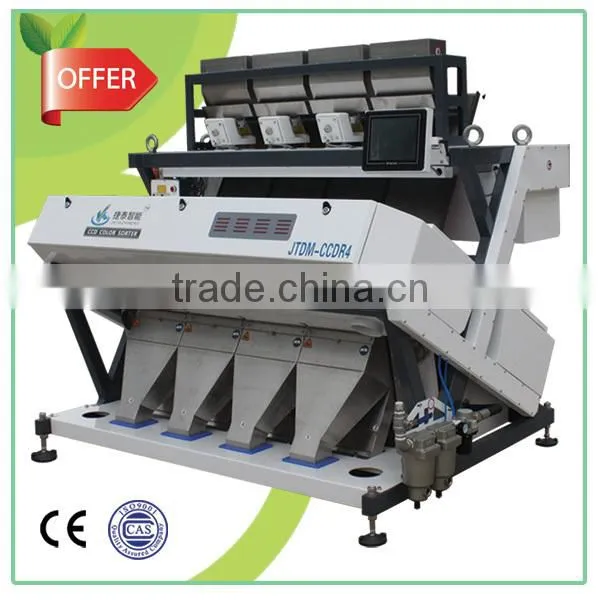

The Most 5000*3 Pixels CCD Sensor Grain Color Sorting Machine With High Optimized Carryover
1.Advanced LED optical system design,precise automatic calibration system,combined with well-developed human-machine interface,greatly reduce the difficulty and the use of the machine debug complexity,make operation simple.
2.Multi mode,meet the needs of a variety of color selection model can be set to meet the needs of a variety of color selection,simple hardware and software installation is designed to provide superior compatibility,various upgrades to meet customer demand at any time.
3.Triangle background board is made of three sides,and it has different light different materials.and it can Three-hundred-sixty degree control to sort diverse materials,Big and small models are universal,using the triangle principle,more stable,no deformation.
4.Our machine is match with two filters which is imported from Japan.The filter device can filter oil, moister and dust from the air source, so pure,dry compressed air into the spray valve.
Model |
JTDM-CCD3R |
JTDM-CCD4R |
JTDM-CCD5R |
JTDM-CCD6R |
Output (Ton/hr) |
4-7 |
5-11 |
7-12 |
10-15 |
Channels (big/small) |
64/192 |
64/256 |
64/320 |
64/384 |
Ejectors |
192 |
256 |
320 |
384 |
Light source |
LED light |
LED light |
LED light |
LED light |
Pixel of camera |
5000*3 |
5000*3 |
5000*3 |
5000*3 |
Color sorting accuracy |
>99.99% |
>99.99% |
>99.99% |
>99.99% |
Carryover rate |
>10:1 |
>10:1 |
>10:1 |
>10:1 |
Host power |
1.0-2.5 |
1.2-3.0 |
1.4-3.5 |
1.6-4.0 |
Air pressure |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
Air consumption (L/min) |
1000-1800 |
1200-2500 |
1500-3000 |
1800-3600 |
Power supply |
220V/50HZ |
220V/50HZ |
220V/50HZ |
220V/50HZ |
Machine weight (kg) |
900 |
1100 |
1300 |
1500 |
Package |
wooden case |
wooden case |
wooden case |
wooden case |
TAG:Color Sorting Machines, Color Sorter,CCD Sorter Machine
